Features
-Low Profile: These switches are usually designed to have a low profile, making them suitable for thin and compact devices.
-No Through-Holes: Unlike through-hole components, SMD components are mounted directly onto the PCB's surface, reducing the need for holes, saving space, and improving mechanical stability.
-Contact Resistance: These switches typically feature low contact resistance, ensuring stable electrical connections during operation.
-Customizable Actuation Force: Some SMD tactile switches offer different actuation forces, allowing designers to choose the best switch based on the intended application.
Applications
1.Automotive Applications
2.Industrial Equipment
3.Medical Devices
4.Prototyping and DIY Projects
Specifications
SMD Tactile Switch
ELECTRICAL
1.Rating: 50mA 12VDC
2.Contact Resistance : 50mΩ max(initial)
3.Insulation Resistance: 100MΩ(minDC 250V)
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100000cycles
6.Environment temperature:-20ºC~+70ºC
7.Operating Force: 180/250(±30gf)
8.Seal temperature:260ºC~ 280ºC
Technical Documents
Please contact us for more information.

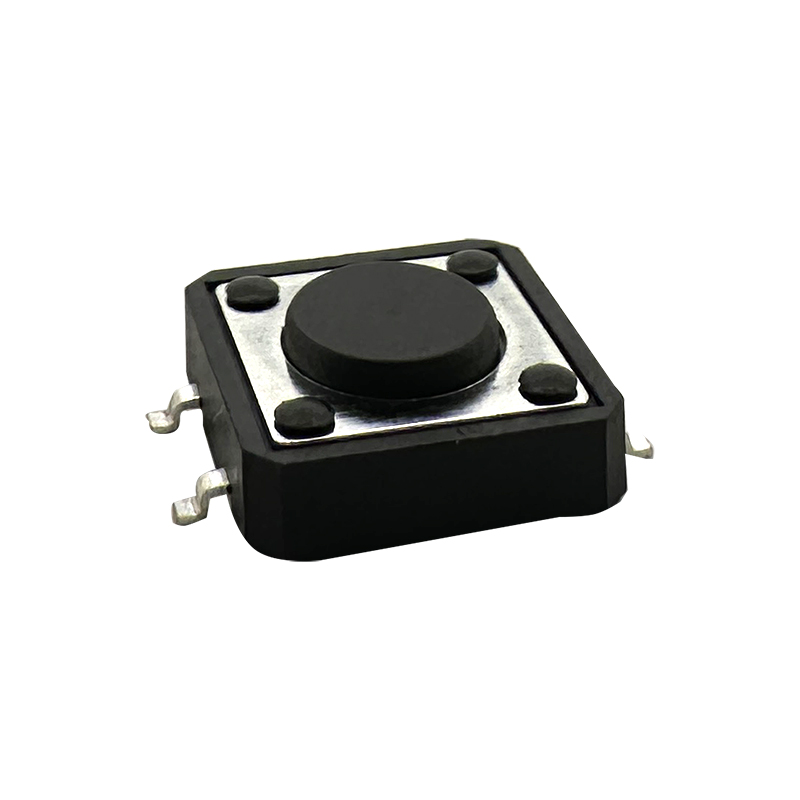

SMD Tactile Switch :RHTGYS1201
