Features
-Rocker switches feature a rocking mechanism that toggles between the on and off positions, making them extremely user-friendly and intuitive to use.
-Tactile feedback confirms whether the switch is engaged, allowing users to easily determine the on/off state.
-The actuator is often wide and easy to press, which makes the switch comfortable to operate even for extended periods.
-Suitable for a wide range of consumer electronics, automotive, and industrial applications.
Applications
1.Aerospace and Aviation
2.Commercial Equipment
3.Home Automation Systems
4.Heating, Ventilation, and Air Conditioning
Specifications
Rocker Switch
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating: 6(4)A 250VAC /10A 125V0AC
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance: ≤50mΩ
5.Insulation Resistance: ≥100MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC;
Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.

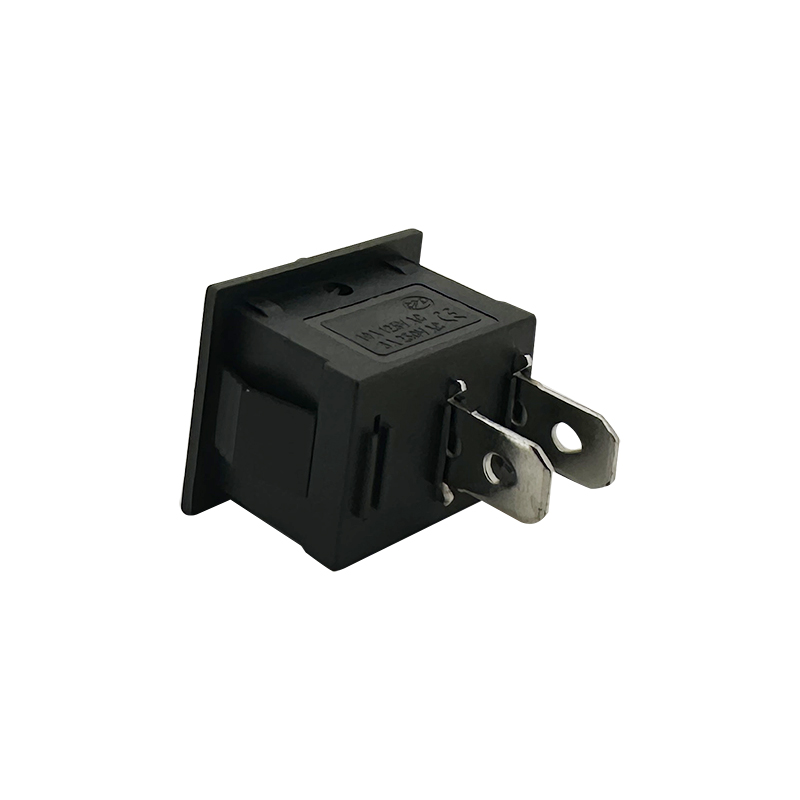

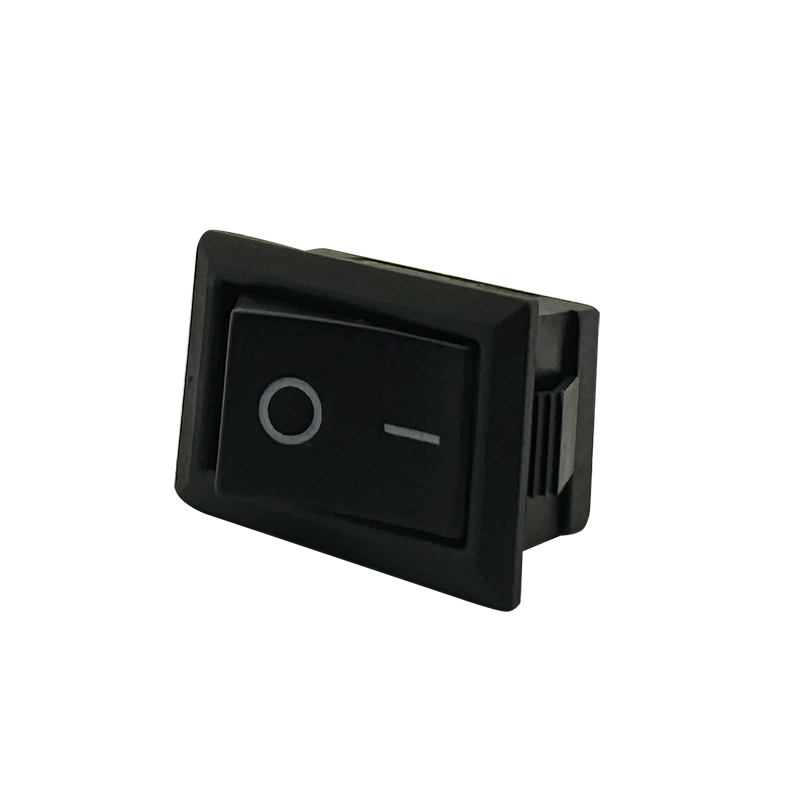

Rocker Switch:RHTGY13
