Features
-Durability: They are known for their robustness and durability, making them suitable for various applications, including household appliances, automotive controls, and industrial equipment.
-Visibility: Many rocker switches have illuminated indicators, making it easy to see whether the switch is on or off, especially in low-light conditions.
-Variety: They come in different sizes, ratings (current and voltage), and configurations (single-pole, double-pole, etc.), allowing for versatility in usage.
-Operation: Rocker switches operate with a simple on-off mechanism, where flipping the switch up (on one side of its center position) turns the circuit on, and flipping it down (on the opposite side) turns it off.
Applications
1.Automotive
2.Marine
3.Consumer Electronics
4.Home Appliances
Specifications
Rocker Switch
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating: 3A 125VAC
1A 250VAC
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance: ≤20mΩ
5.Insulation Resistance:1000MΩ Min
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC;
Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.

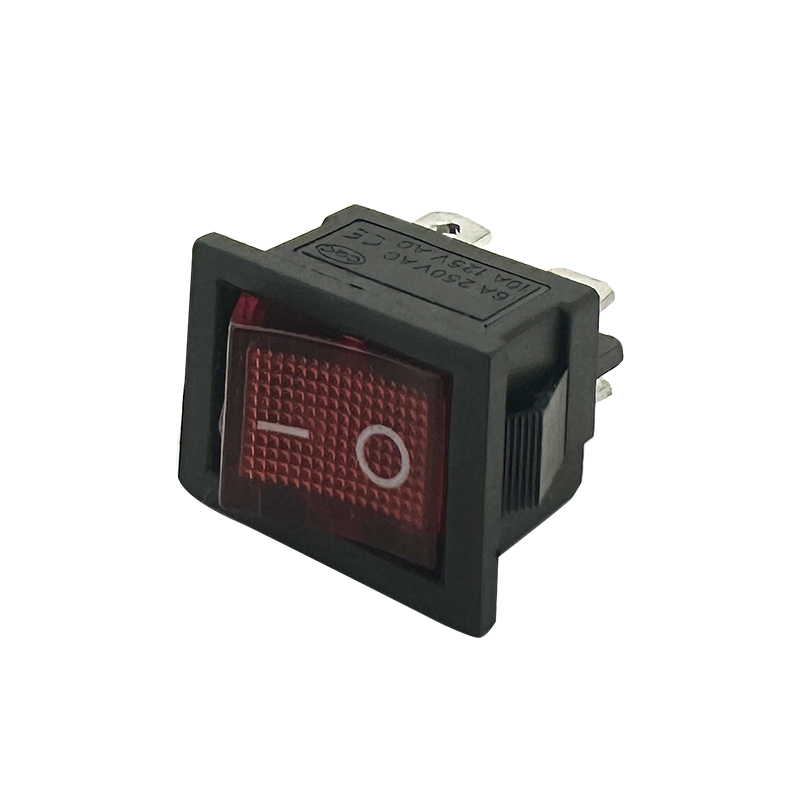

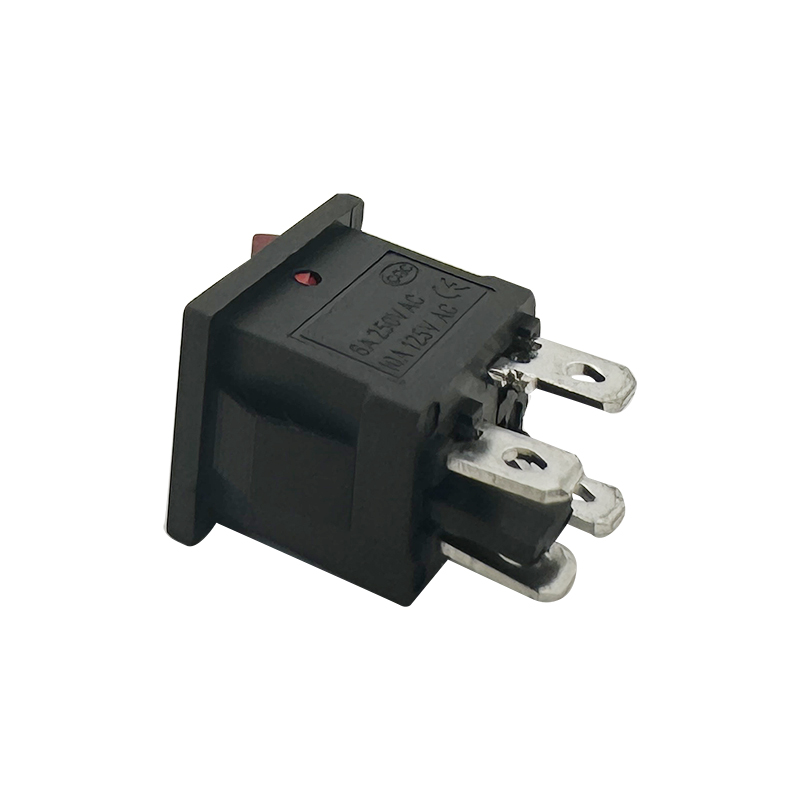

Rocker Switch:RHTGY25
