Features
-Features a wide actuator that is easy to press with your finger, offering a tactile feedback to indicate whether the switch is in the on or off position.
-Features a wide actuator that is easy to press with your finger, offering a tactile feedback to indicate whether the switch is in the on or off position.
-Many rocker switches come in illuminated versions, which light up (typically with LEDs) to indicate the on/off status of the device.
-Built from durable materials such as plastic, metal, and ceramic, ensuring long-term reliability and resistance to wear.
Applications
1.Power Distribution and Circuit Panels
2.Audio/Visual Equipment
3.Aerospace and Aviation
4.Commercial Equipment
Specifications
Rocker Switch
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating:16(4)A 250VAC T85
16(4)A 250VAC T125/55 1E4
16A 125V/8A 250AC
(H)Rating:16(8)A 250VAC T85/55 1E4
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance:<20mΩ
5.Insulation Resistance:>1000MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC; Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.

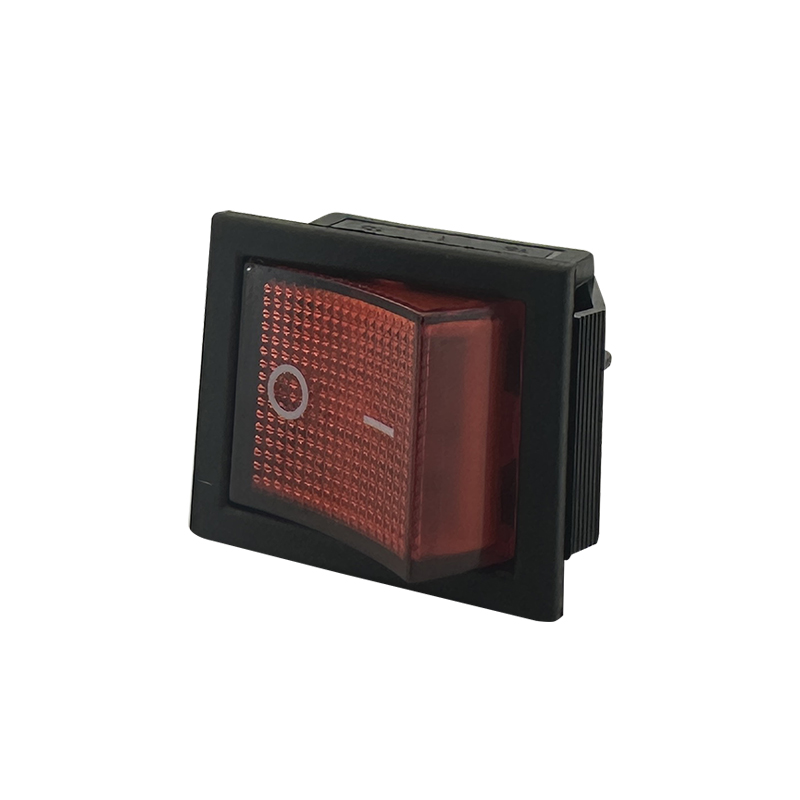

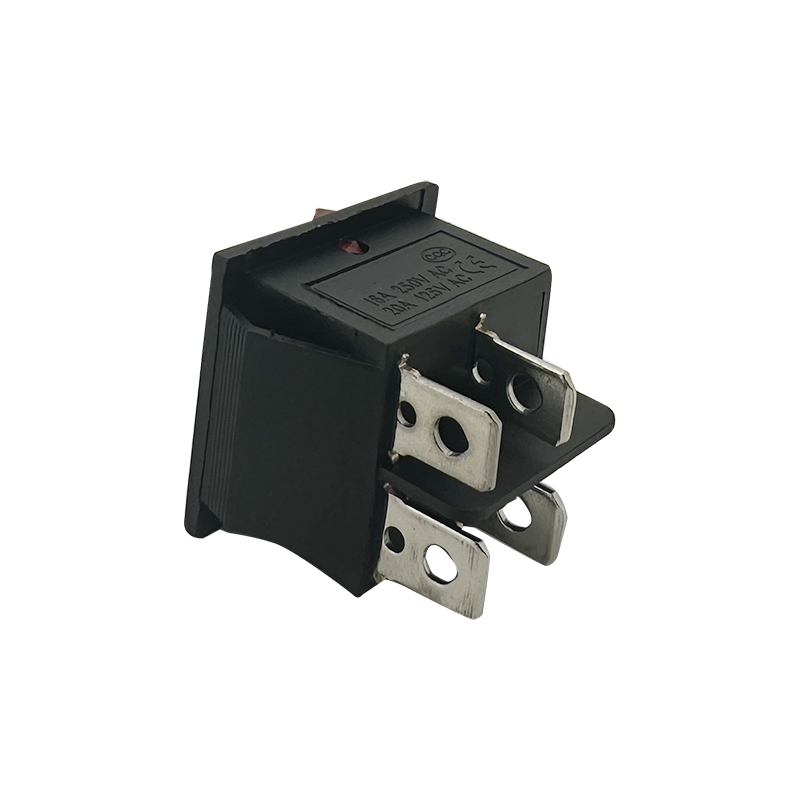

Rocker Switch:RHTGY07
