Features
-ome rocker switches are designed for snap-in, screw-on, or clip-on mounting styles, allowing flexibility in installation.
-Many rocker switches come with built-in LED illumination, allowing users to easily see whether the switch is on or off, even in low-light environments.
-Rated for thousands of on/off cycles (typically 10,000+), making them reliable for frequent use.
-Can be rated for thousands of operation cycles (e.g., 10,000+ cycles), ensuring reliability over time.
Applications
1.Home Appliances
2.Computers and Consumer Electronics
3.Automotive Applications
4.Industrial Equipment
Specifications
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating:10(4)A 250VAC T85
16(4)A 250VAC T125/55 1E4
15A 125V/7.5A 250AC
(H)Rating:16(8)A 250VAC T85/55 1E4
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance:<20mΩ
5.Insulation Resistance:>1000MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC; Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.

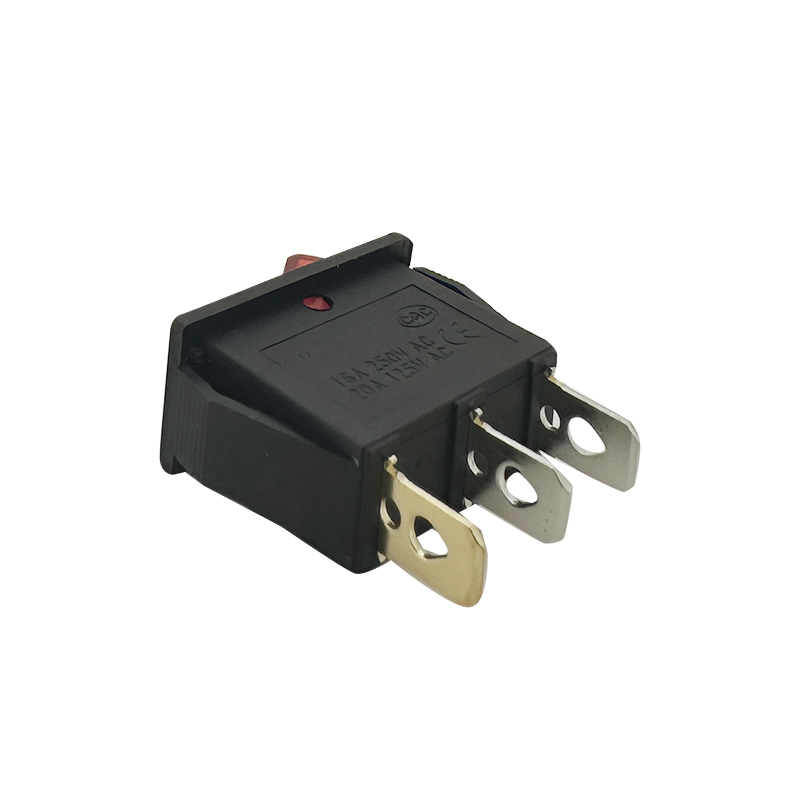

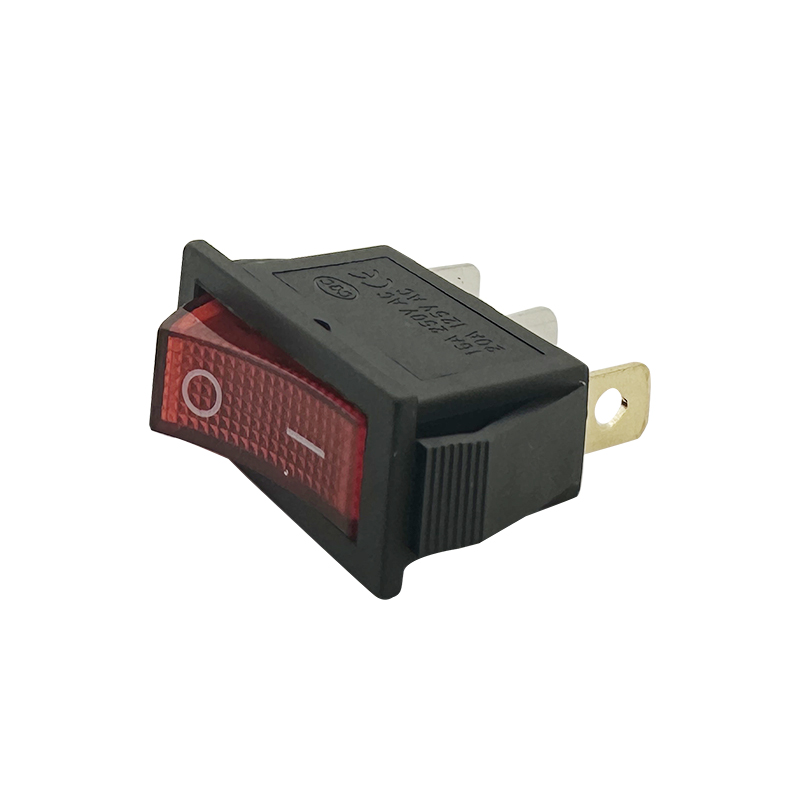

Rocker Switch : RHTGY03
