Features
-Compact Size:
Mini XLR plugs are smaller in size compared to standard XLR connectors, making them suitable for devices and applications where space is at a premium.
-Design:
Circular Connector: Like standard XLR connectors, Mini XLR plugs typically have a circular design with a locking mechanism. This ensures a secure connection, preventing accidental disconnection.
-Pin Configuration:
Mini XLR plugs come in various pin configurations, commonly 3-pin or 4-pin variants, although other configurations exist depending on the specific application. Each pin serves a specific function, such as signal, ground, and sometimes additional functions like power or control signals.
-Durability:
Constructed from durable materials such as metal or high-grade plastic, Mini XLR plugs are designed to withstand frequent use and provide reliable performance over time.
Applications
1.Video Production
2.Musical Instruments
3.Industrial and Communication Systems
4.DIY and Custom Electronics Projects
Specifications
Electrical Specification:
Rated current / voltage: 3A 250VAC
The contact resistance: 5mΩMax
nsulation Resistance: 500VDC 1000MΩmin
The test voltage: 1000 VDC 1Min
he ambient temperature: -30° C ~ 100° C
he life of the product: 5000
Diameter: Φ2 ~ Φ5mm
Material:
Contact material: gold-plated copper
Insulator material: PA66,of PBT
Connector Body Material: Metal
Technical Documents
Please contact us for more information.

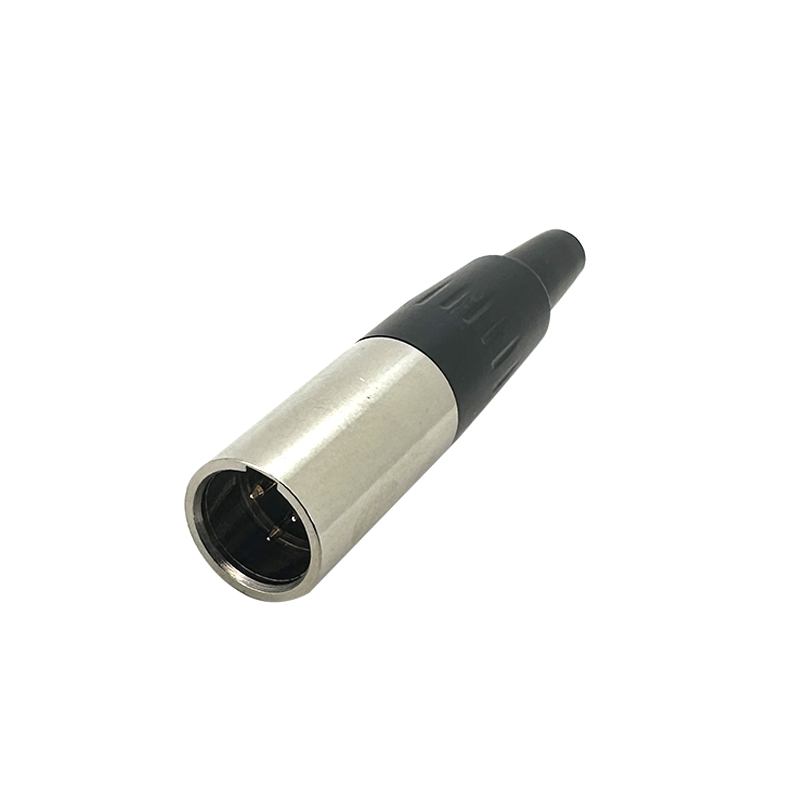

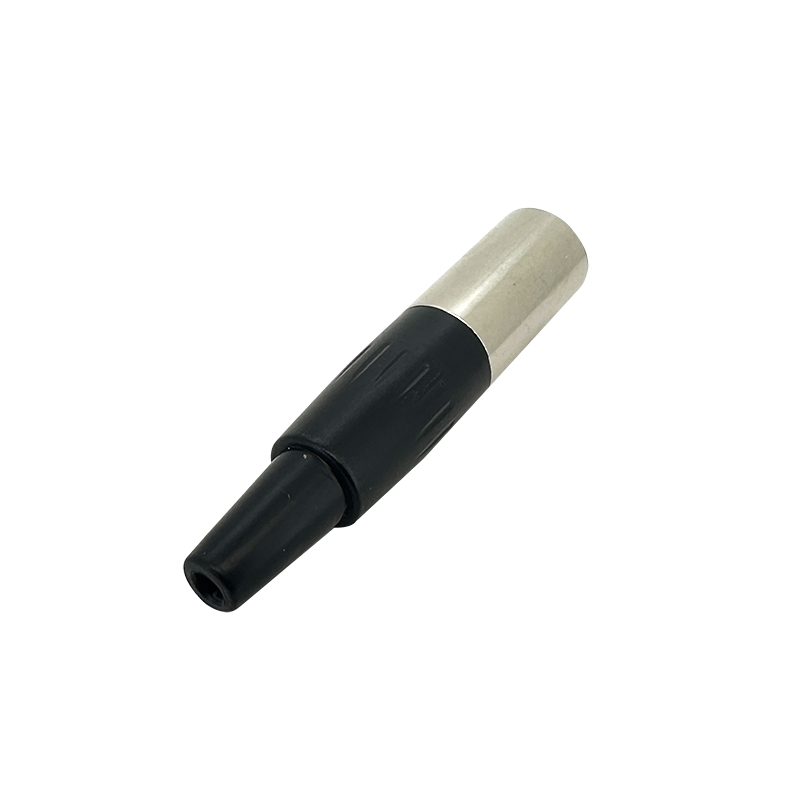

Mini XLR Plug :RHTAYLR-P01C
