Features
-Size: Relatively small in diameter, making it suitable for compact devices such as smartphones, laptops, tablets, MP3 players, and portable audio equipment.
-Versatility: Supports stereo audio signals (left and right channels) and can also carry mono audio or audio with an integrated microphone (TRRS - Tip-Ring-Ring-Sleeve).
-Durability: Designed for frequent insertion and removal cycles, making it durable for consumer electronics use.
-Compatibility: Widely adopted across a broad range of consumer electronics and professional audio equipment due to its standardized size and connection configuration.
Applications
1.Computers and Laptops
2.Automotive Applications
3.Professional Audio Equipment
4.Communication Devices
Specifications
Technical parameters:
Rated voltage:DC 30V
Rated current: 0.5A
Contact resistance:0.03Ω max
Insulation resistance:100MΩ (DC250V)
Withstand Voltage:500VAC
Insertion Force :3-20N
Life:5000 times
Material:
1、Housing:PBT
2、Contact Foot：Phosphor bronze, Ag-Plating
3、Spring Piece:Phosphor bronze, Ag-Plating
4、Curve Piece:Brass, Ag-Plating
5、Contact Foot:Phosphor bronze, Ag-Plating
6、CAP:H59 Brass, Ni-Plating
Technical Documents
Please contact us for more information.Features

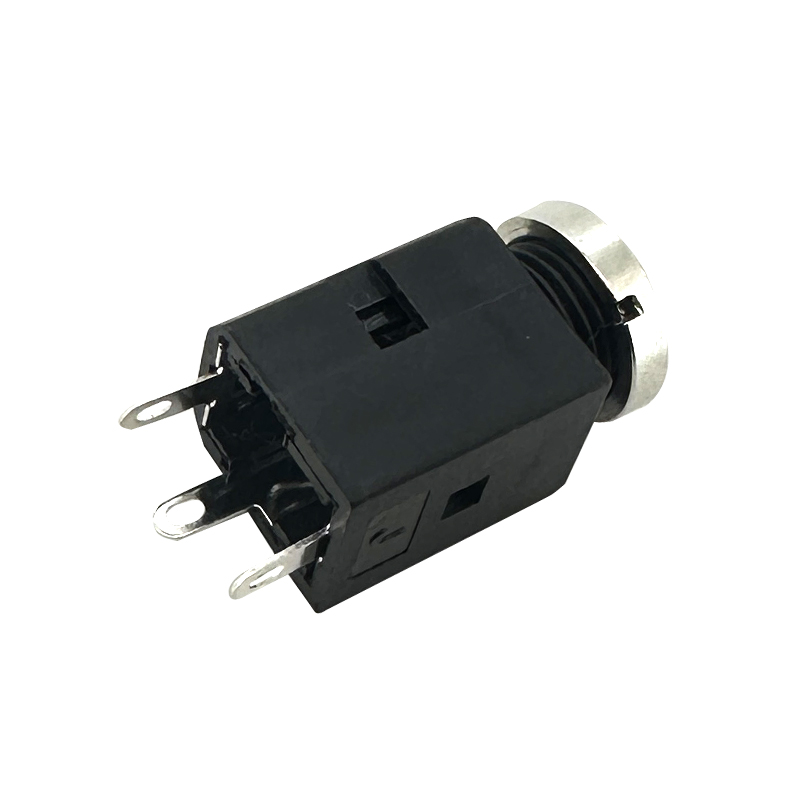

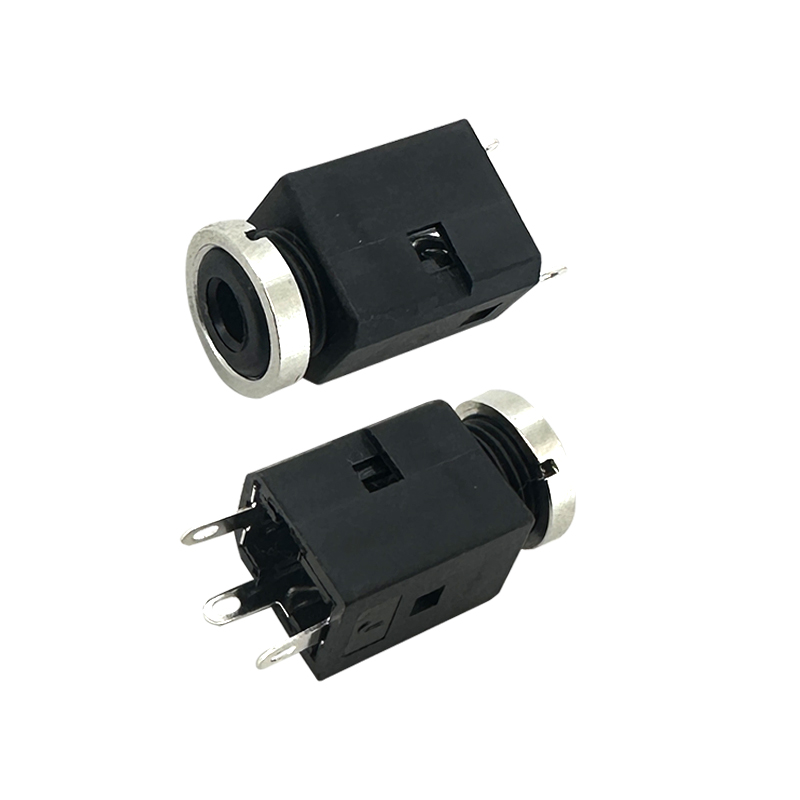

3.5mm Audio Jack：RHTAYG3.5-004
