Features
-Durability: Constructed from durable materials such as metal or high-quality plastics to withstand frequent use and provide reliable electrical contact over time.
-Ease of Use: Designed for easy insertion and removal with a secure fit to prevent accidental disconnection during use, ensuring uninterrupted audio playback or recording.
-Connector Type: The 3.5mm stereo phone jack is a TRS (Tip-Ring-Sleeve) connector, meaning it has three separate conductors:
Tip: Typically carries the left audio channel (L).
Ring: Carries the right audio channel (R).
Sleeve: Acts as the ground or common return path for both audio channels.
-Stereo Audio Support: Designed to transmit stereo audio signals, allowing separate left and right channels for a more immersive audio experience in headphones, earphones, and audio playback devices.
Applications
1.Laptops and Computers
2.Portable Audio Players
3.Car Audio Systems
4.Home Audio Systems
Specifications
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Terminal 1 : Copper Alloy
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 4 : Copper Alloy
Terminal 5 : Copper Alloy
Terminal 6 : Copper Alloy
Terminal 10: Brass
Housing : Pa66
Technical Documents
Please contact us for more information.Features

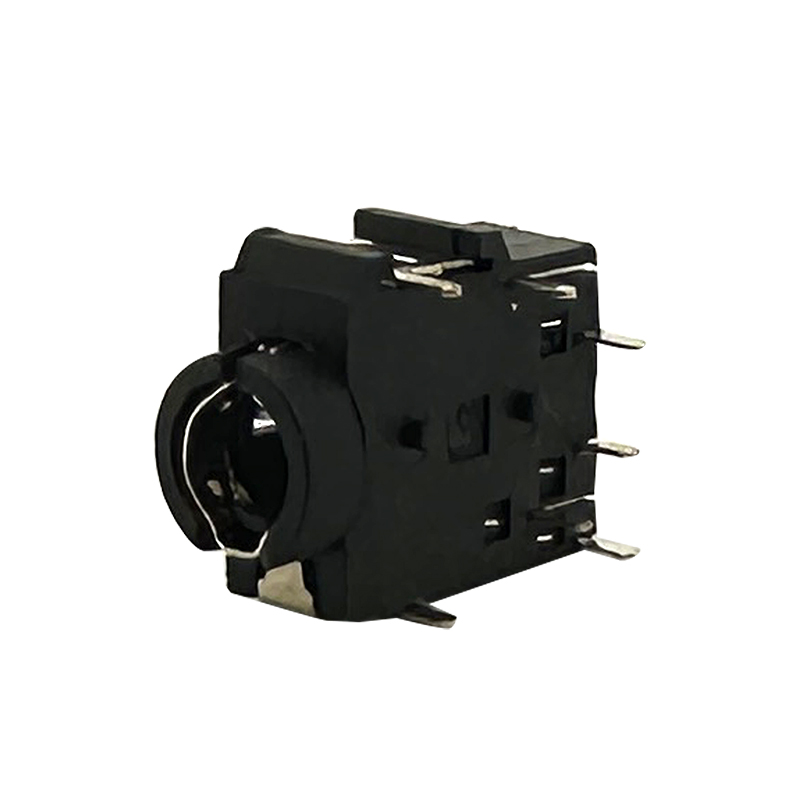

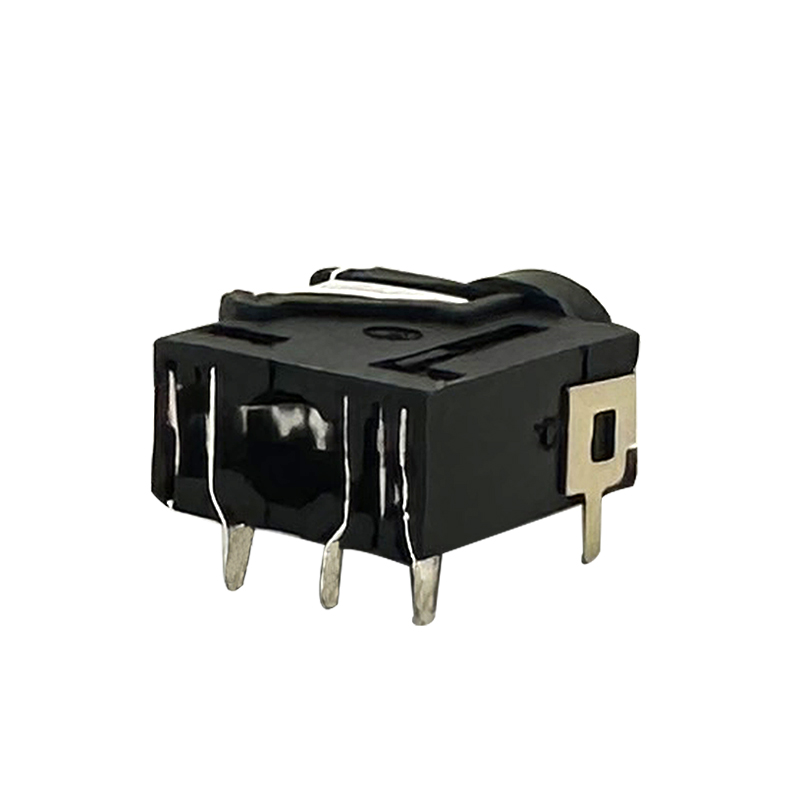

3.5mm Stereo Phone Jack：RHTAYSJ3.5-008
