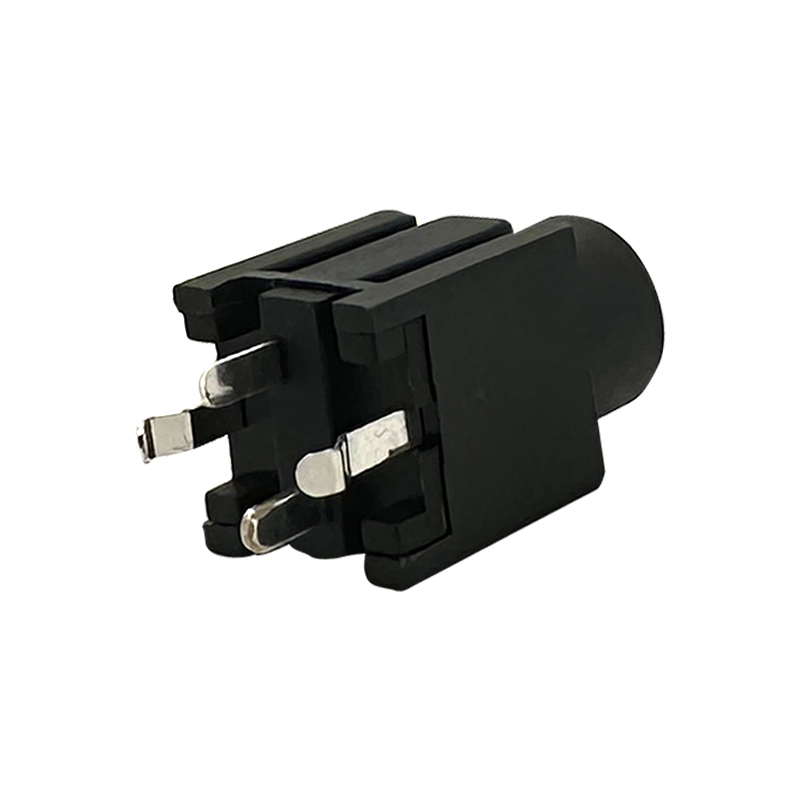

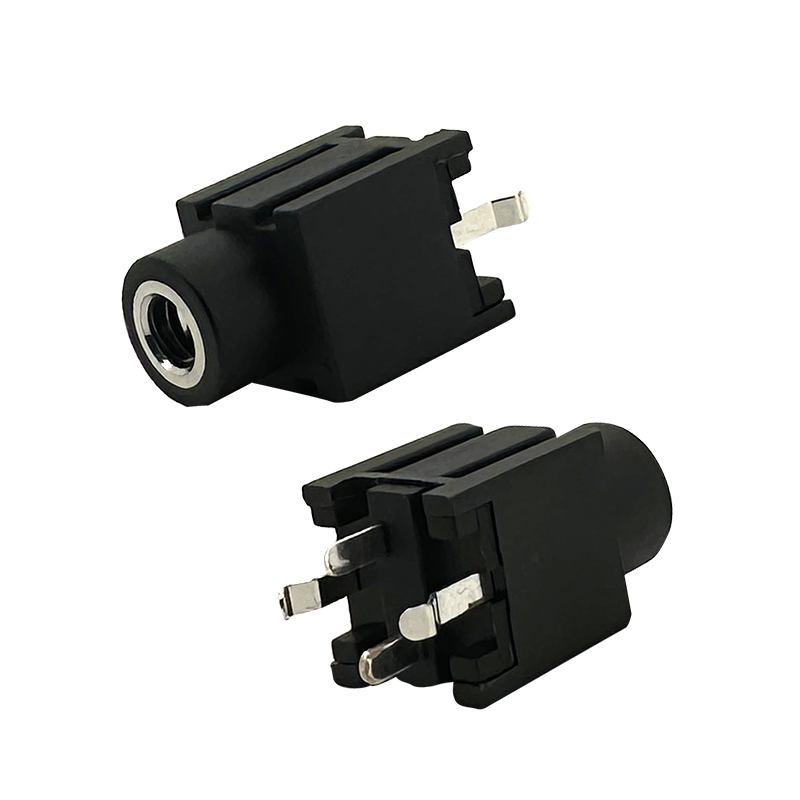

3.5mm Stereo Phone Jack :RHTAYSJ3.5-004B

Series Part No: RHTAYSJ3.5-004B

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Typically, 3.5mm stereo phone jacks are of the TRS (Tip-Ring-Sleeve) type

-Carries the left audio channel.

-Carries the right audio channel

-Commonly used in headphones, earphones, audio cables, and various audio devices.

Applications

1.Personal Audio Devices

2.Computers and Laptops

3.Audio Equipment

4.Communication Devices

Specifications

Technical parameters:

Rated voltage: DC 30 V

Rated current: 0.5 A

Contact resistance: 0.03Ω, max

Insulation resistance: 100MΩ, min

Pressure: AC500V (50Hz) / 1minute

Insertion Force :2-20 N

Life: 50000 times

Operating Temperature:-30ºC~+70ºC

Material:

Housing/Cover:PBT

Center Pin Material:

Terminal 1,2 :Copper Alloy

Terminal 3,10/Bushing :Brass

Technical Documents

Please contact us for more information.Features
