Features
-Size and Shape: The jack is 3.5mm in diameter, with a cylindrical shape.
-Polarity: It typically has three or four sections (conductors):
TRS: Tip, Ring, Sleeve (3.5mm stereo for left and right audio).
TRRS: Tip, Ring, Ring, Sleeve (includes a microphone channel).
-Signal Types: Carries analog audio signals, supporting stereo sound.
-Connection Types: Compatible with various devices, including smartphones, tablets, laptops, and audio equipment.
Applications
1.Headphones and Earbuds
2.Smartphones and Tablets
3.Laptops and Computers
4.Portable Audio Players
Specifications
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing/Cover:PBT
Center Pin Material:
Terminal 1,2 : Copper Alloy
Terminal 3,10 : Brass
Technical Documents
Please contact us for more information.

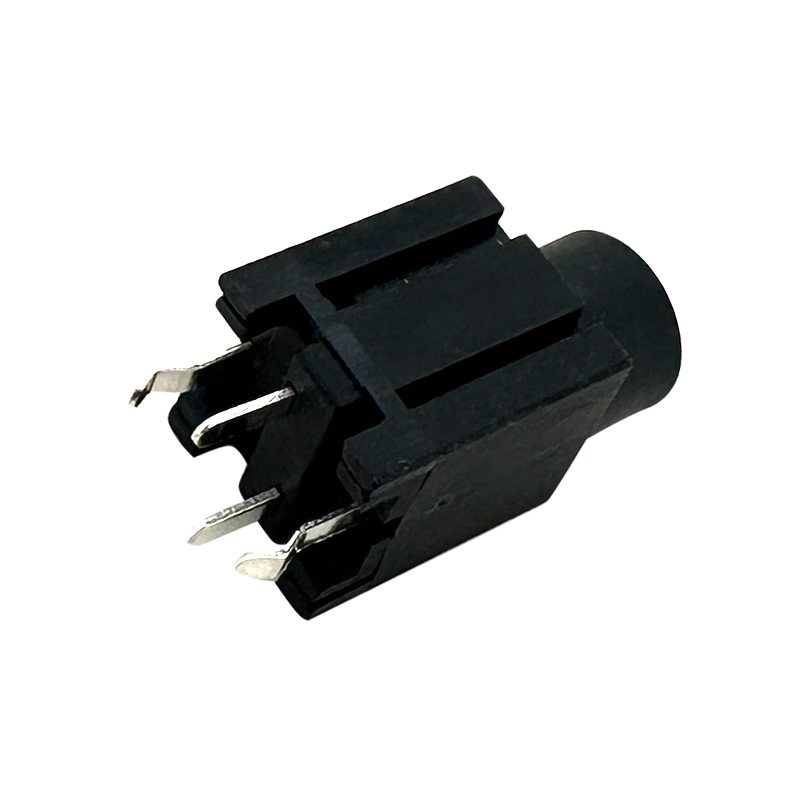

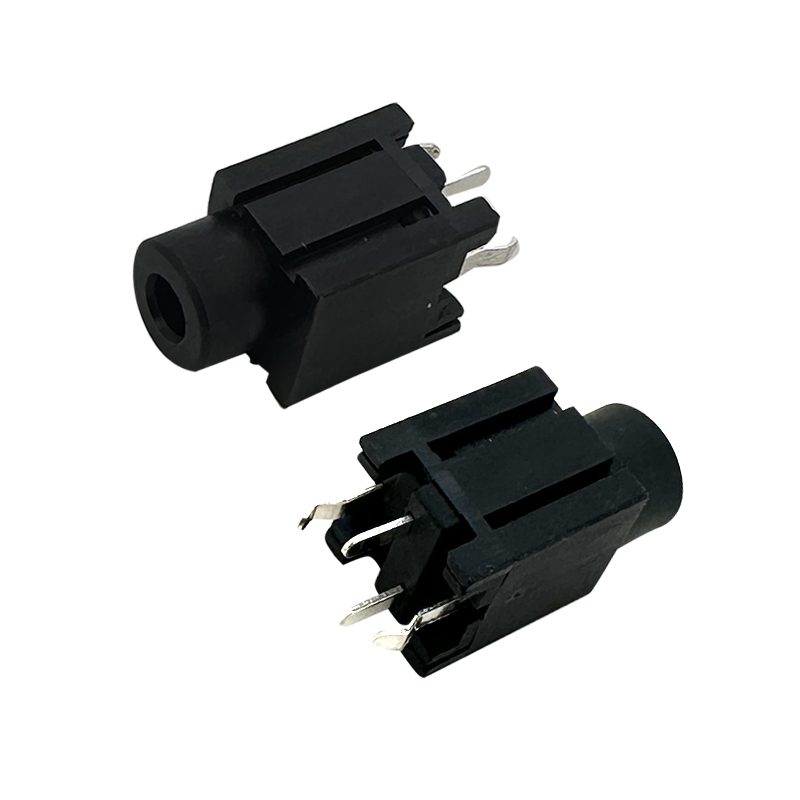

3.5mm Stereo Phone Jack : RHTAYSJ3.5-004A
