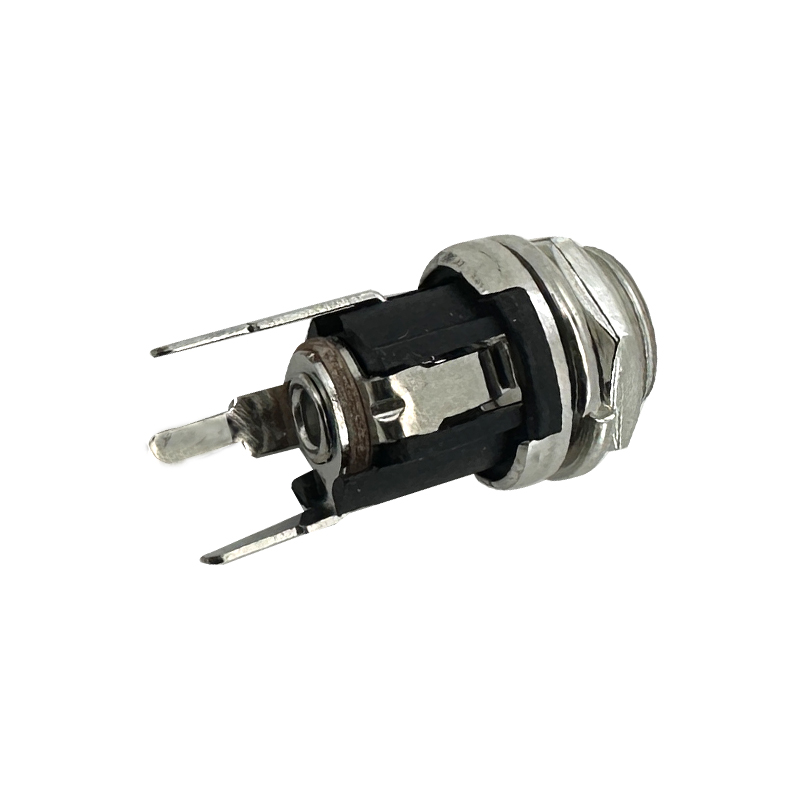

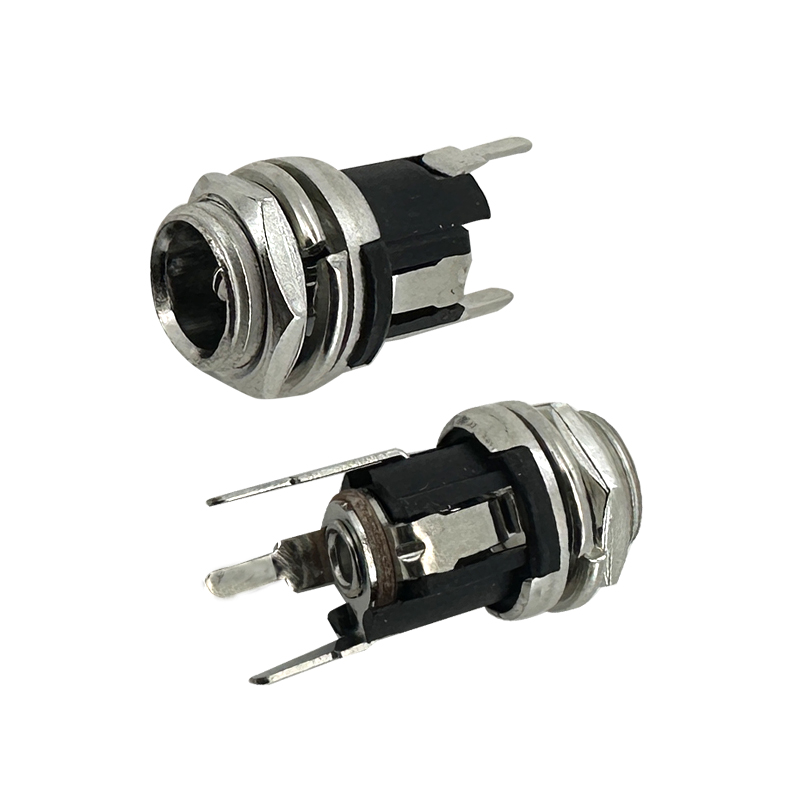

DC Power Connector：RHTAYC-025A

Series Part No: RHTAYC-025A

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Current Rating: Ranges from 0.5A to 10A+, depending on connector size and material.

-Voltage Rating: Typically 5V, 12V, 24V, 48V, and higher depending on the application.

-Barrel Plug & Jack (Coaxial) – Common in laptops, routers, and power adapters.

-Durability: Locking DC Connectors – Prevent accidental disconnection.

Applications

1.Consumer Electronics

2.Industrial Equipment & Automation

3.Automotive & Transportation

4.Medical & Healthcare Devices

Specifications

Rated Load: DC 30V 0.5A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles

Operating Temperature: -30ºC ~ 70ºC

Technical Documents

Please contact us for more information.
