Features
-Size and Shape: DC power jacks come in various sizes and shapes, but they generally consist of a cylindrical or barrel-shaped plug that fits into a corresponding socket.
-Voltage and Current Rating: They are rated for specific voltage and current capacities, which dictate the maximum power they can safely handle without overheating or failing.
-Usage: Commonly found in devices such as laptops, routers, modems, and various consumer electronics where an external power source is needed.
-Variants: There are different variants such as DC barrel jacks (with a cylindrical shape) and other proprietary connectors designed by specific manufacturers.
Applications
1.Telecommunications Equipment
2.Medical Devices
3.Gaming Consoles
4.LED Lighting
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.

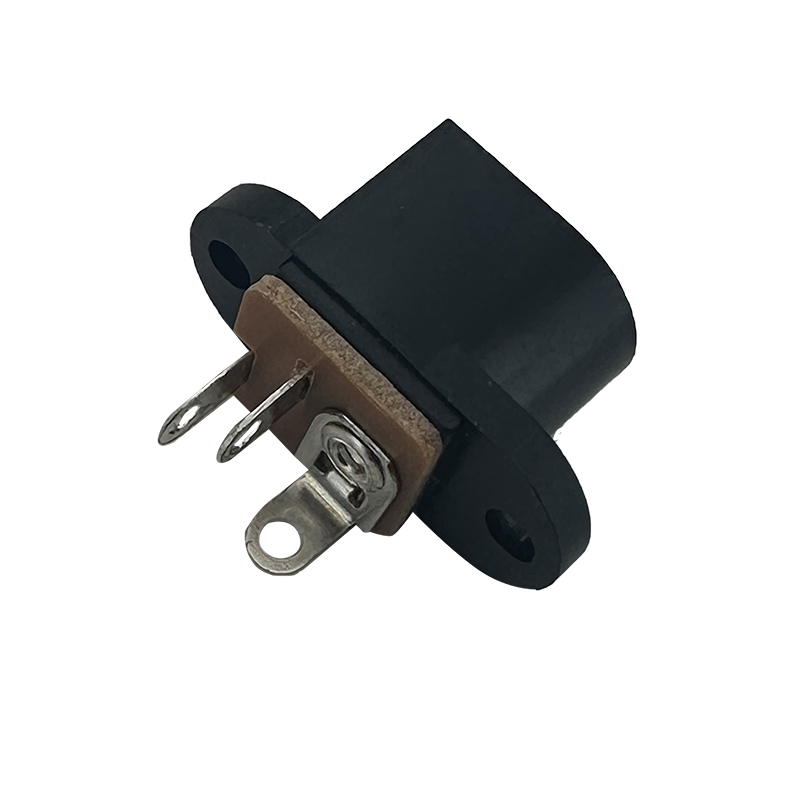

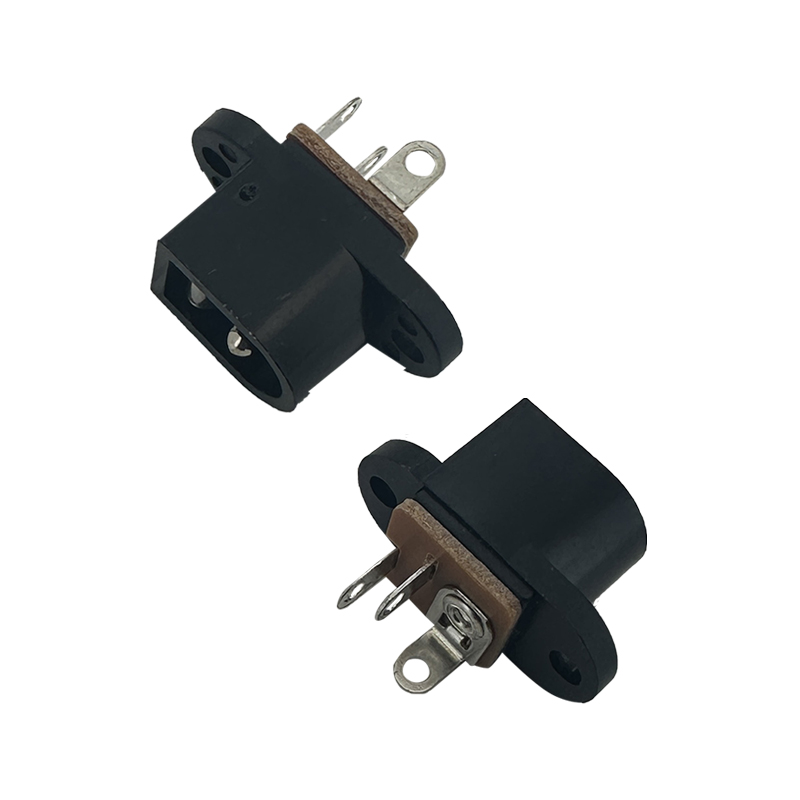

DC Power Jack Connector：RHTAYC-016
