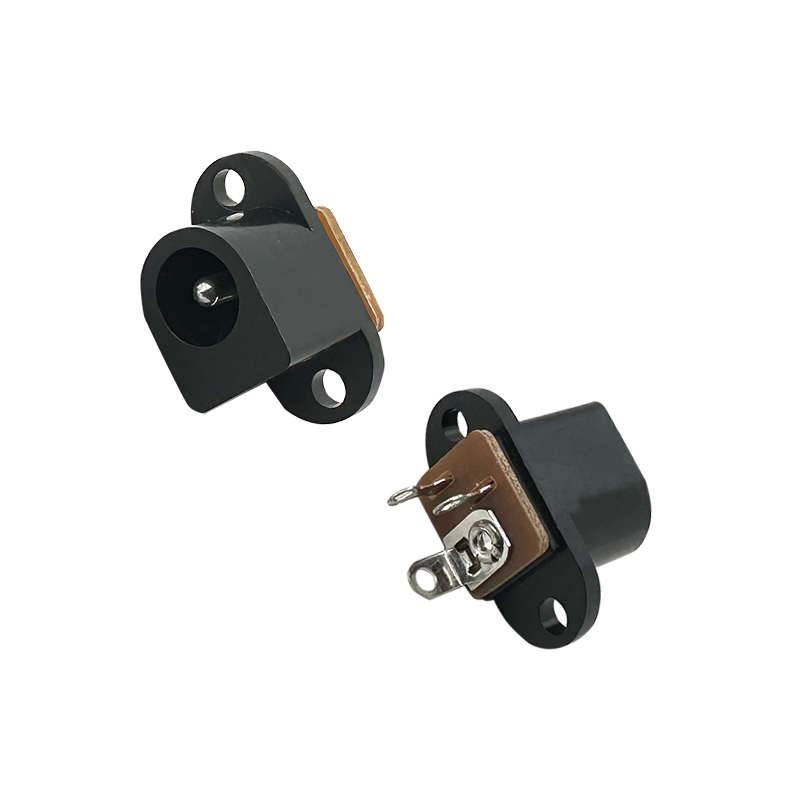

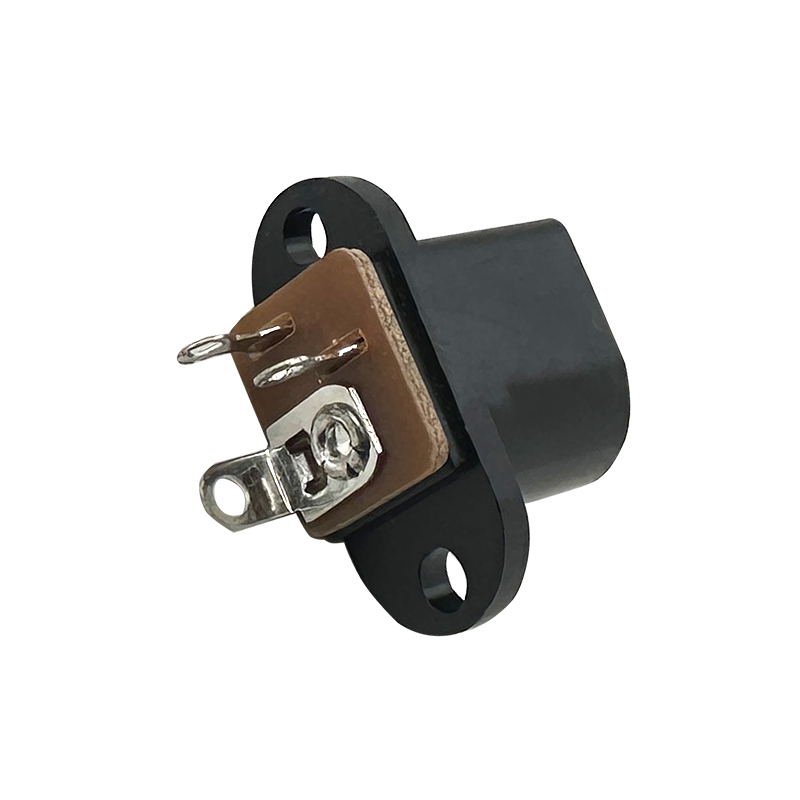

DC Power Jack Connector ：RHTAYC-017

Series Part No: RHTAYC-017

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Panel Mount – Designed to be mounted on device enclosures.

-PCB Mount – Directly soldered onto a printed circuit board (PCB).

-Positive Center (Inner Pin: Positive, Outer Sleeve: Negative) – Most common.

-Negative Center (Inner Pin: Negative, Outer Sleeve: Positive).

Applications

1.Consumer Electronics

2.Industrial Equipment

3.Embedded Systems & IoT Devices

4.Robotics & DIY Electronics

Specifications

Rated Load: DC 30V 1.0A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles

Operating Temperature: -30ºC ~ 70ºC

Technical Documents

Please contact us for more information.
