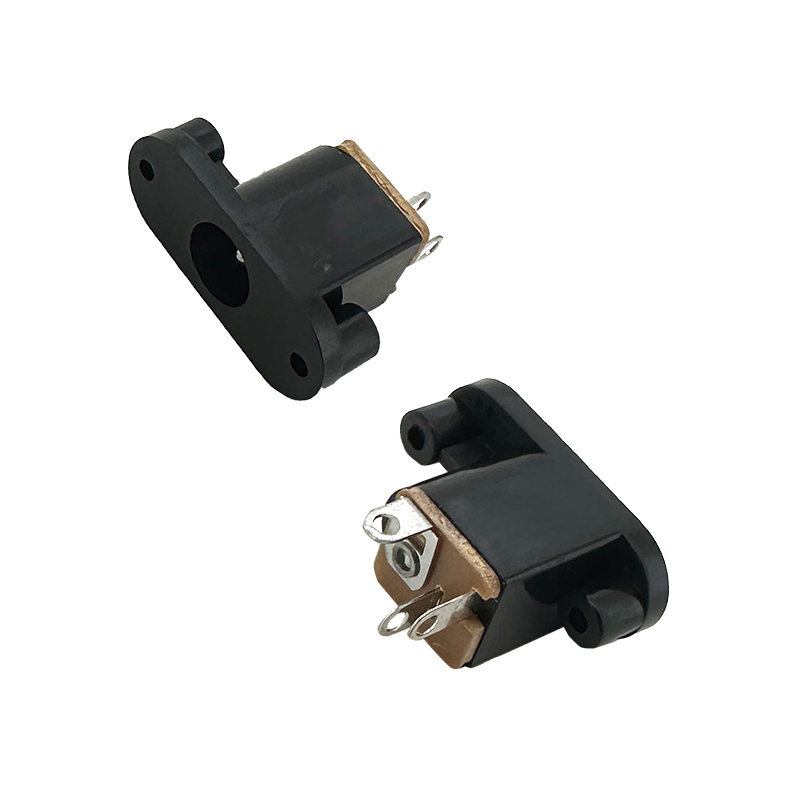

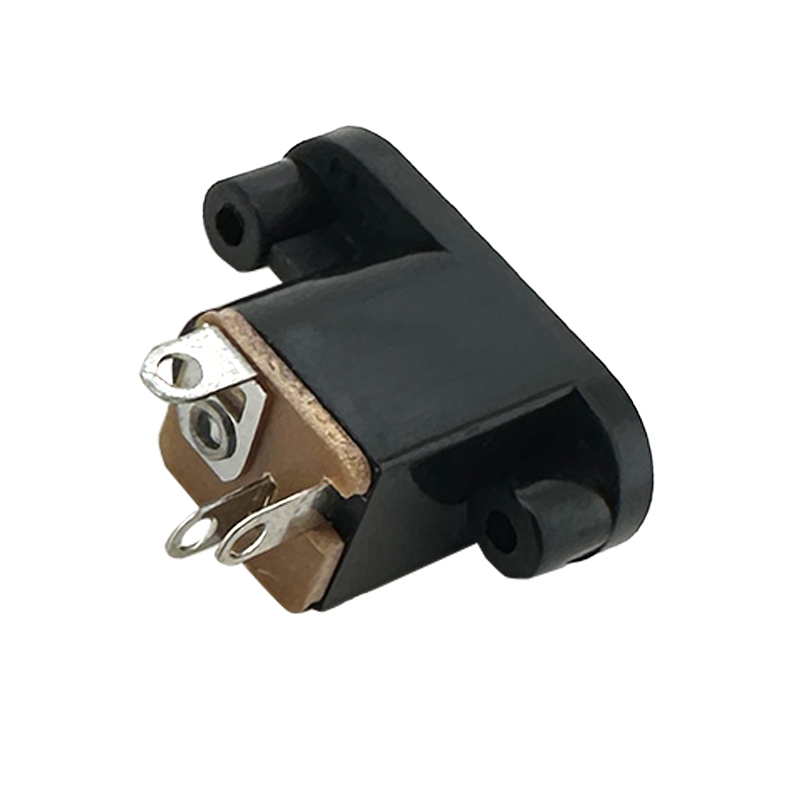

    DC Power Jack:RHTAYC-007

    Series Part No: RHTAYC-007
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Contact Resistance: Low resistance for efficient power transfer.

    -Barrel Size Options: Common sizes include 2.1mm and 2.5mm inner diameter.

    -Housing Material: Made from plastic or metal for insulation and durability.

    -Waterproof Options: Available with IP67/IP68 ratings for outdoor and industrial applications.


    Applications

    1.Renewable Energy & Power Systems

    2.Industrial & Embedded Systems

    3.Automotive & Transportation

    4.LED Lighting

    Specifications

    Rated Load: DC 30V 1.0A

    Contact resistance: 30mΩ, max

    Insulation resistance: 100MΩ, min

    Withstand Voltage: AC500V

    Actuating Force: 3~20N

    Life: 5000 cycles

    Operating Temperature: -30ºC ~ 70ºC

    Technical Documents

    Please contact us for more information.
