Features
-The most common type, with a cylindrical shape, where the male connector is inserted into the female jack.
-Designed to be mounted on the panel of a device, it has a threaded or flanged body for secure installation.
-These connectors are designed to be soldered directly onto a printed circuit board (PCB).
-The connector is rated for specific voltage (e.g., 5V, 12V, 24V, etc.) and current (e.g., 2A, 5A) values.
Applications
1.Consumer Electronics
2Industrial Equipment
3. Embedded Systems and IoT Devices
4. Robotics and DIY Projects
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.

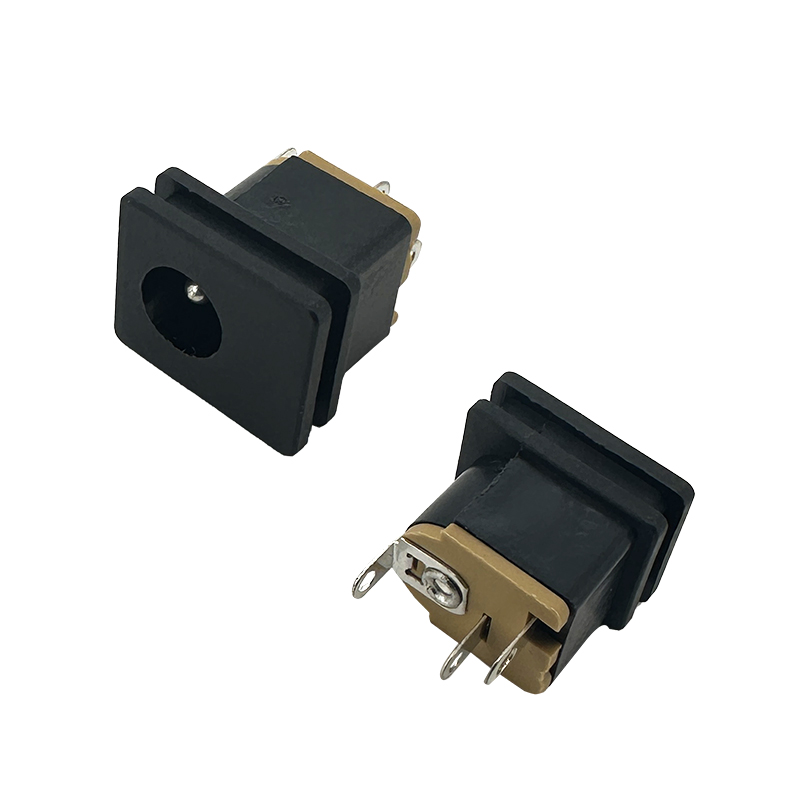

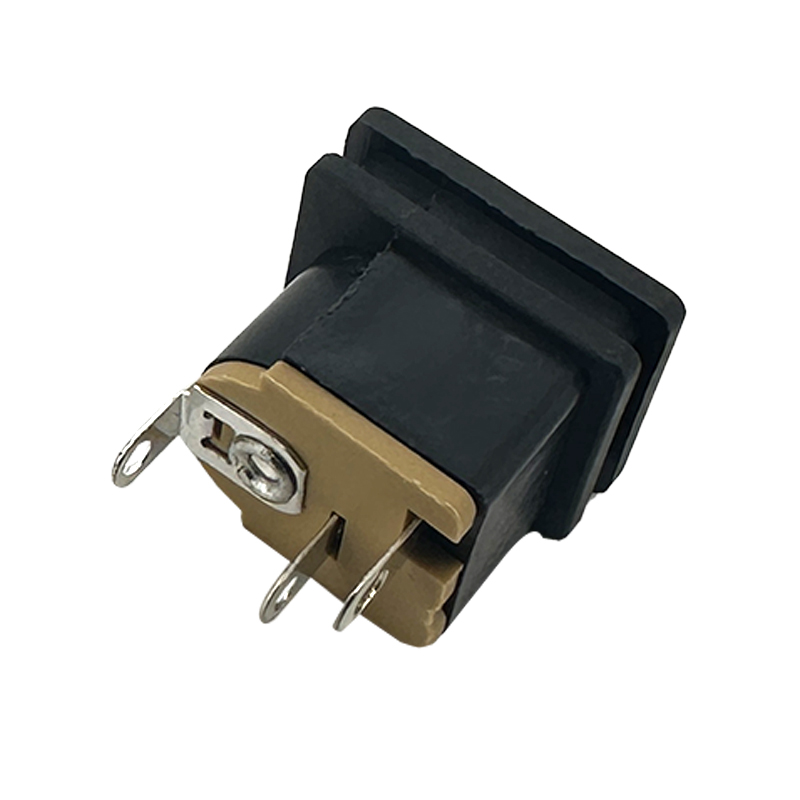

DC Power Jack Connector：RHTAYC-015
