Features
-It serves as a standardized connection for DC power supply adapters, allowing devices to easily receive power from external sources.
-Many DC power jacks are polarized, meaning they have a distinct positive (+) and negative (-) terminal to ensure proper power flow.
-DC power jacks are designed to handle specific current ratings, which typically range from 1A to 5A or more, depending on the requirements of the device.
-The current rating determines how much electrical current the jack can safely carry without overheating or damaging the component.
Applications
1.Networking and Communication Devices
2.Embedded Systems and Development Boards
3.Industrial Equipment
4.Audio and Video Equipment
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.

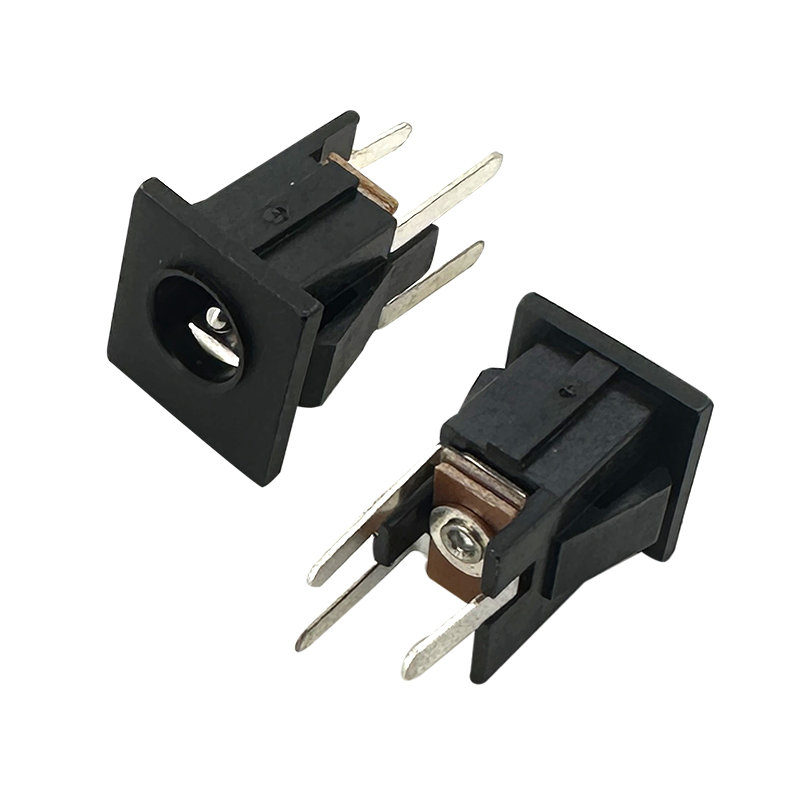

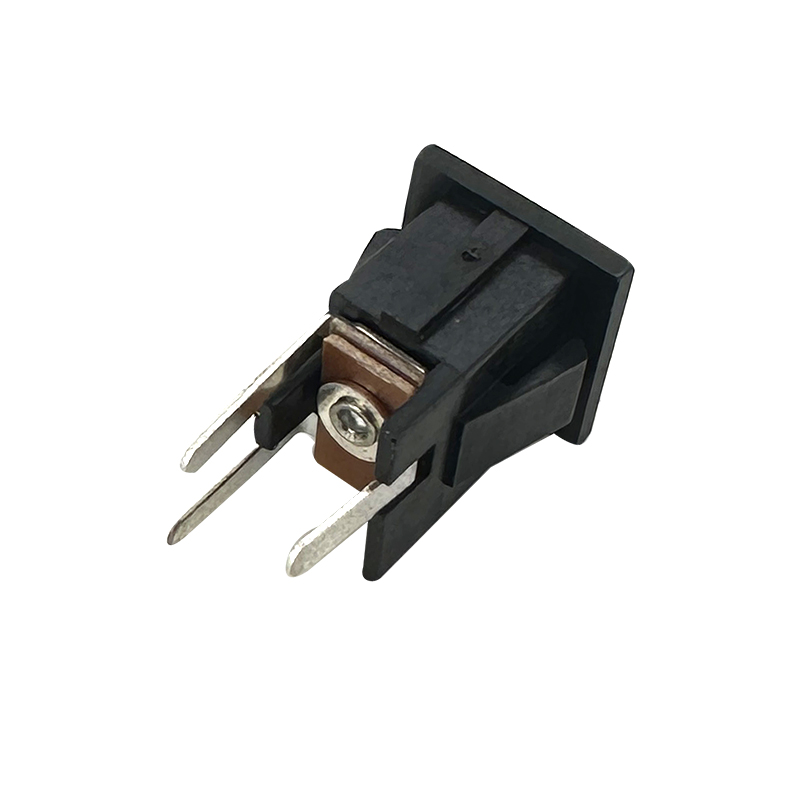

DC Power Jack ：RHTAYC-006
