Features
-Form Factor: SMT horizontal DC power jacks are designed to lay flat on the PCB, with the connector's body oriented horizontally. This orientation allows for easier integration into compact electronic designs.
-Mounting Style: These jacks are specifically designed for surface mounting, meaning they are soldered directly onto the surface of the PCB without the need for through-holes. This mounting method helps save space and facilitates automated assembly processes.
-Connector Type: They typically feature a barrel-type connector, either cylindrical or rectangular in shape, that accepts a corresponding plug from the power adapter. The connector's design ensures a secure electrical connection.
-Polarity Markings: Like other DC power connectors, SMT horizontal jacks are marked with polarity indicators (often center-positive or center-negative) to ensure correct alignment with the power supply and prevent damage to the connected device.
Applications
1.Consumer Electronics
2.Telecommunications Devices
3.LED Lighting
4.Portable Electronics
Specifications
Rated Load: DC 30V 1A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.

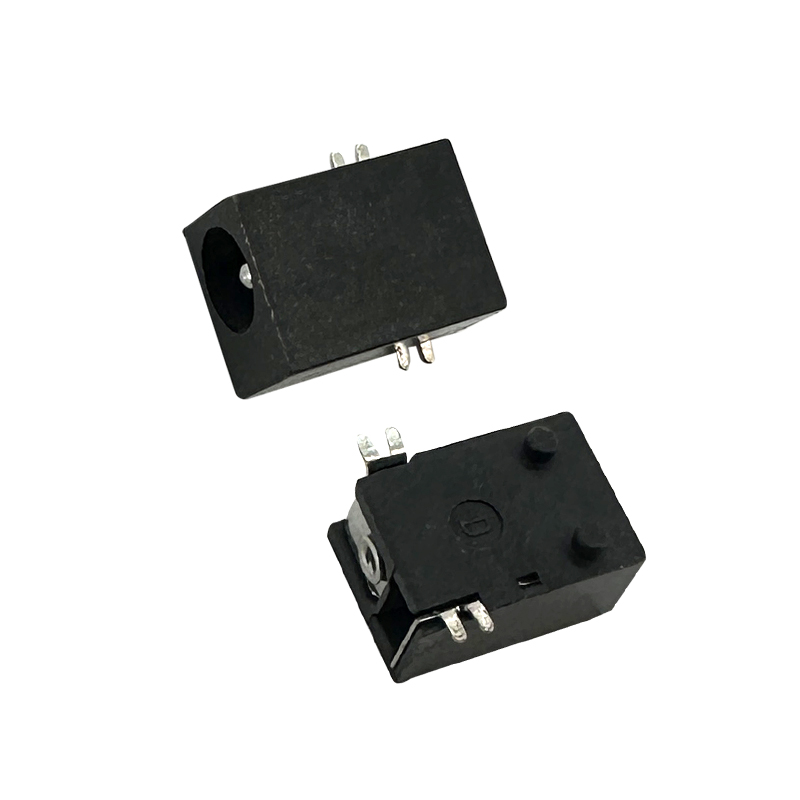

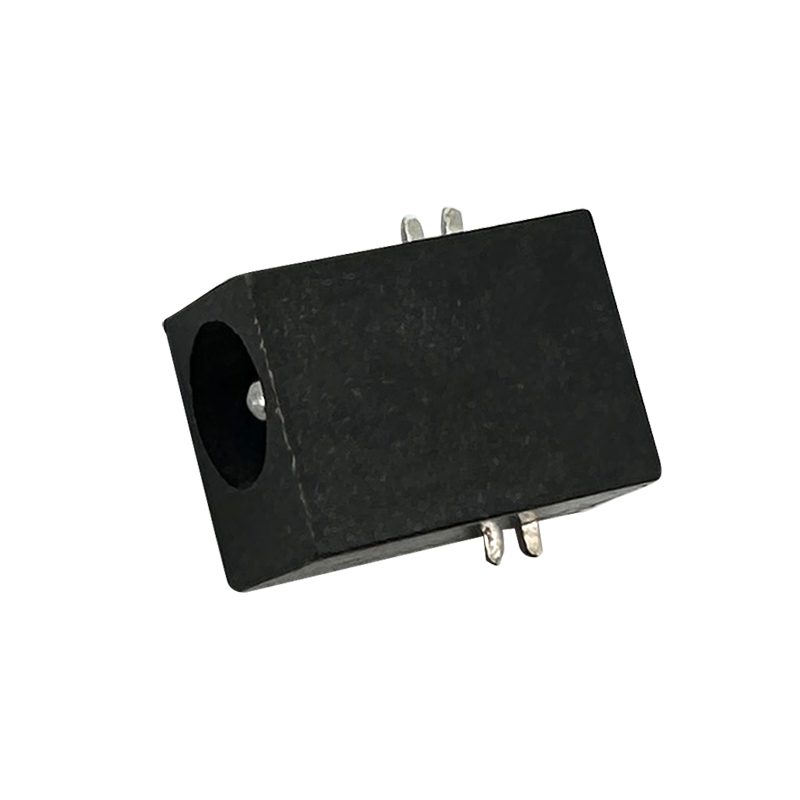

DC POWER Jack SMT HORIZONTAL：RHTAYDC-013
