Amphenol RF 901-143-6RFX Compatible
Features
-Design: Compact and robust design suitable for integration into densely packed PCB layouts.
-Compatibility: Compatible with other SMA connectors, ensuring interoperability in mixed RF systems.
-Termination: Typically soldered directly onto the PCB for a secure electrical and mechanical connection.
-Standards: Complies with SMA connector standards, ensuring reliability and consistency in performance
Applications
1.Automotive
2.Test and Measurement Equipment
3.Antenna Systems
4.Military and Aerospace Electronics
Specifications
PCB Mount SMA Connector With Jack Female Right Angle Type
Impedance: 50 Ω
Frequency Range Semi-rigid cable: 0-18 GHz
Flexible cables: 0-12.4 GHz
Voltage Rating : 335 volts rms.
Dielectric Withstanding Voltage : 500 volts rms.
VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical
1.25 +0 .025 f (GHz) for Right angle connector typical
Contact Resistance Center contact: 2.0 mΩ
Body: 2.0 mΩ
Insulation Resistance: 5,000 MΩ
Mating:1/4"-36 UNS thread coupling
Cable retention:6kgf typical
Durability:500Cycles Min.
Coupling nut retention:18kgf Min.
Temperature Range: - 55°C to +155°C
Material:
Connector body: Brass per QQ-B-626 ,gold Plating or nickel
Center contact Male: Brass,gold Plating
Center contact Female: Beryllium copper,gold Plating
Insulator: PTFE
Gasket:Silicone rubber
Crimp Ferrule:Annealed copper
Technical Documents
Please contact us for more information.
SMA CONNECTOR are available at RHT.
RHT can supply many SMA Connectr to replace Manufacturers
Amphenol, Cinch Connectivity, Hirose, Johnson / Cinch, Molex,
TE Connectivity, & more. We have been providing very large SMA CONNECTORS
in the international markets and get very good feedback from each customers .
Please view our large selection SMA CONNECTOR of below.

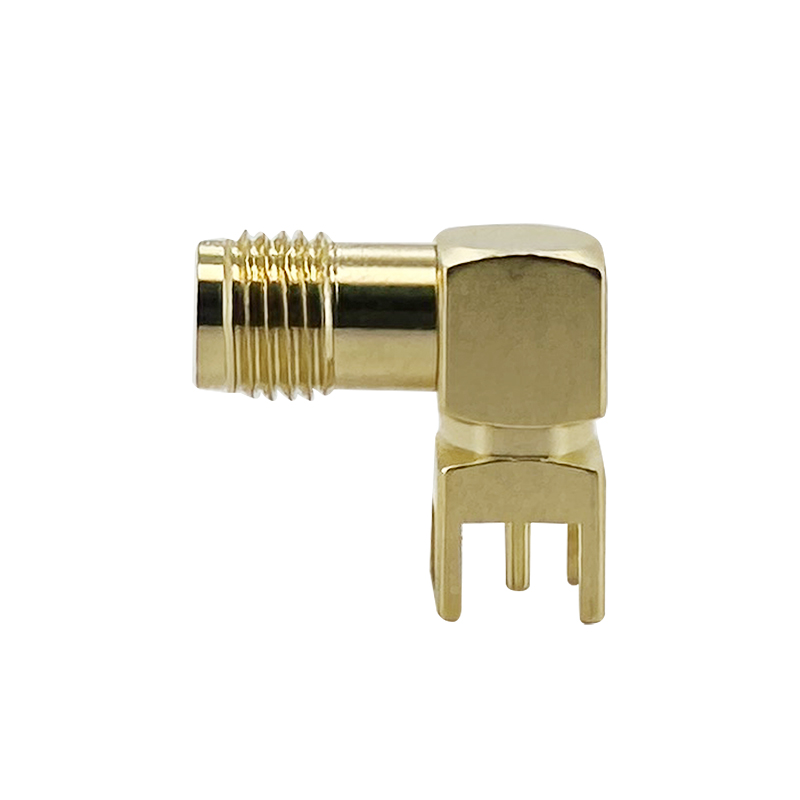

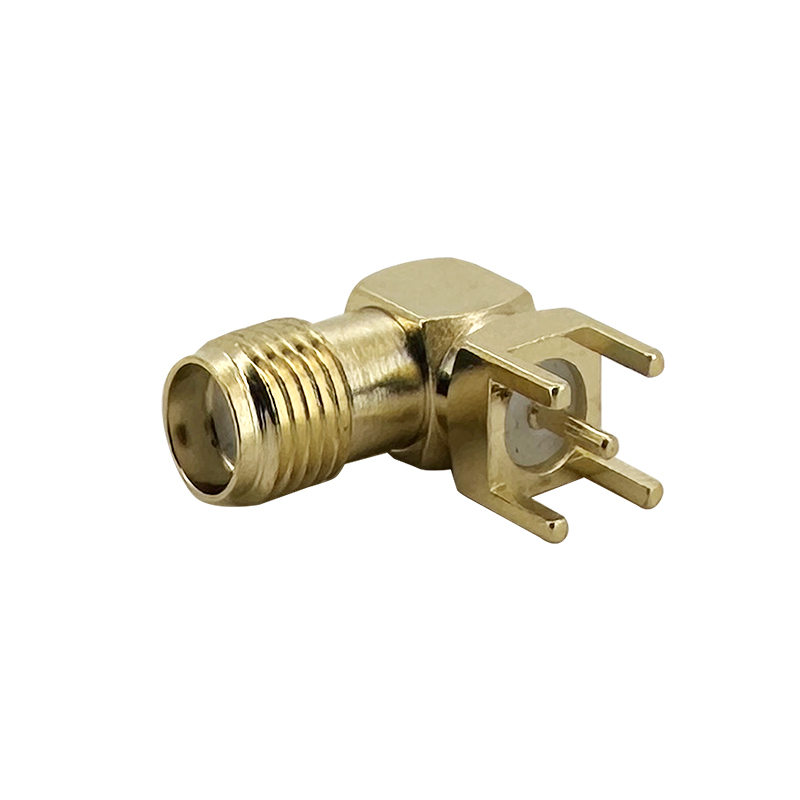

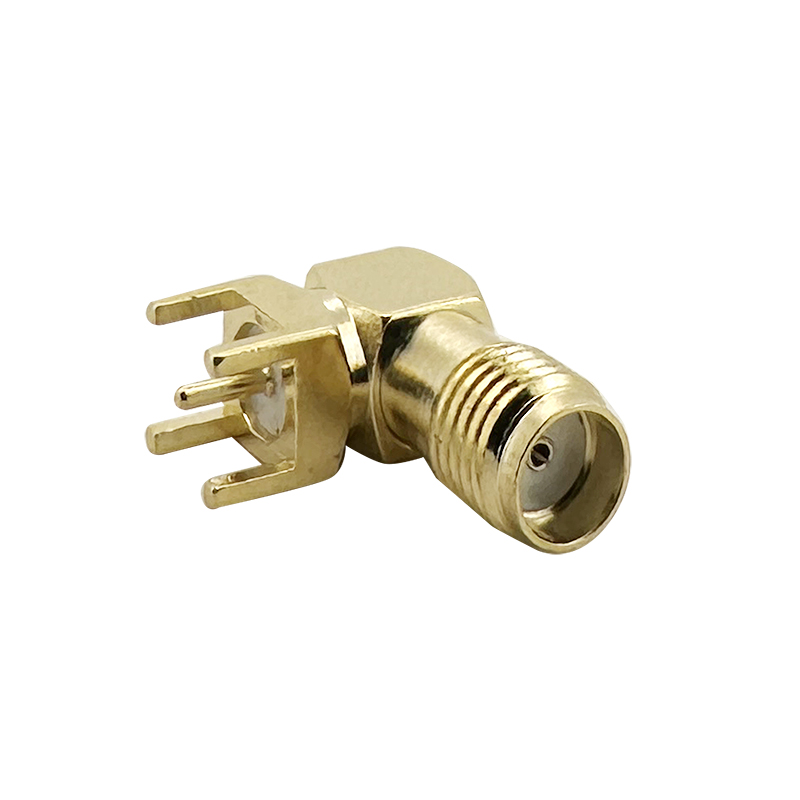

Amphenol RF 901-143-6RFX Compatible PCB Mount SMA Connector (Jack,Female,50Ω)：RHTAYMA002-B
