Features
-The shielding ensures a cleaner signal with less risk of degradation, which is essential for high-speed data transmission and maintaining network reliability, especially in high-frequency applications like 10GbE (10 Gigabit Ethernet) and beyond.
-Grounding tab: These plugs often include a grounding tab to connect the shield to the grounding system of the network, further reducing the risk of electrical noise affecting the data signals.
-These connectors are designed to work with STP cables or FTP cables, which already have a shield around the twisted pairs of wires. The combination of the shielded plug and the shielded cable offers optimal protection against external interference.
-Sturdy Construction: Shielded RJ45 connectors are typically built with stronger materials and design to endure harsher environments, making them ideal for industrial settings, data centers, or any area with a high concentration of electronic equipment.
Applications
1.Industrial Environments
2.Data Centers
3.Telecommunication Networks
4.Audio/Video Systems
Specifications
Modular Plug Shield RJ45
MATERIAL
1.Housing :Polycarbonate(pc) UL 94V-0 or UL 94V-2
2.Contact :Phosphor Bronze, Hard Gold plated over nickel
3.Shielding:0.25mm Thickness Copper Alloy With Tin plated
4.Gold plating:3u inch,6u inch,15u inch,30u inch,50u inch
ELECTRICAL
1.Current Rating:1.5 Amps
2.Voltage Rating:125 Volts AC
3.Insulation Resistance:100 Megohms Min.
4.Contact Resistance:39 Millmhos Max.
5.Withstanding Voltage:1000VAC RMS 50Hz or 60Hz 1 Min.
MECHANICAL
CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
DURABILITY:750MATING CYCLES MINI
WORKING TEMPERATURE:-40°C ~60°C
Technical Documents
Please contact us for more information.

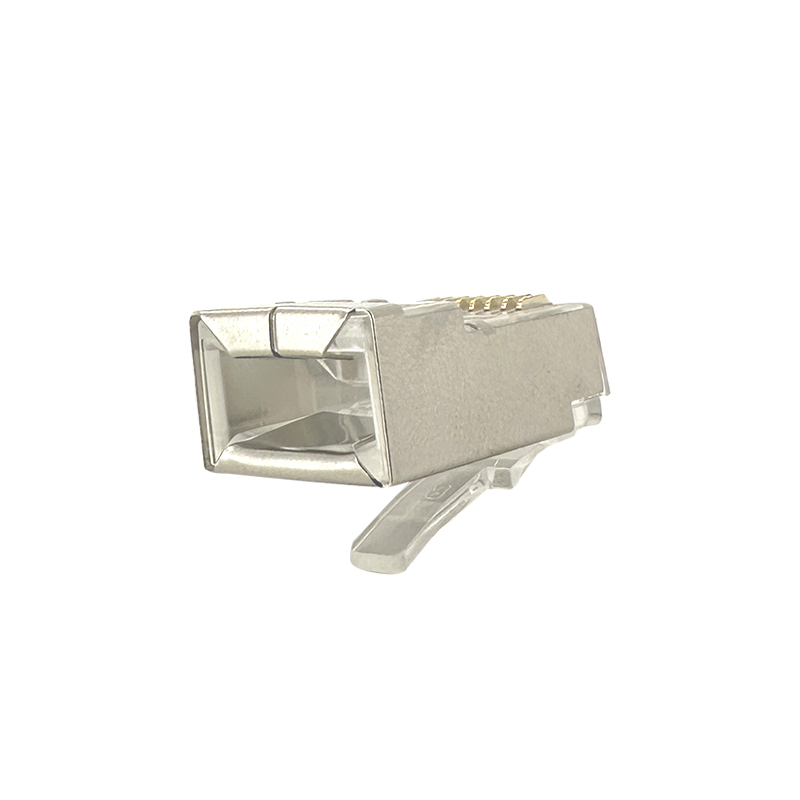

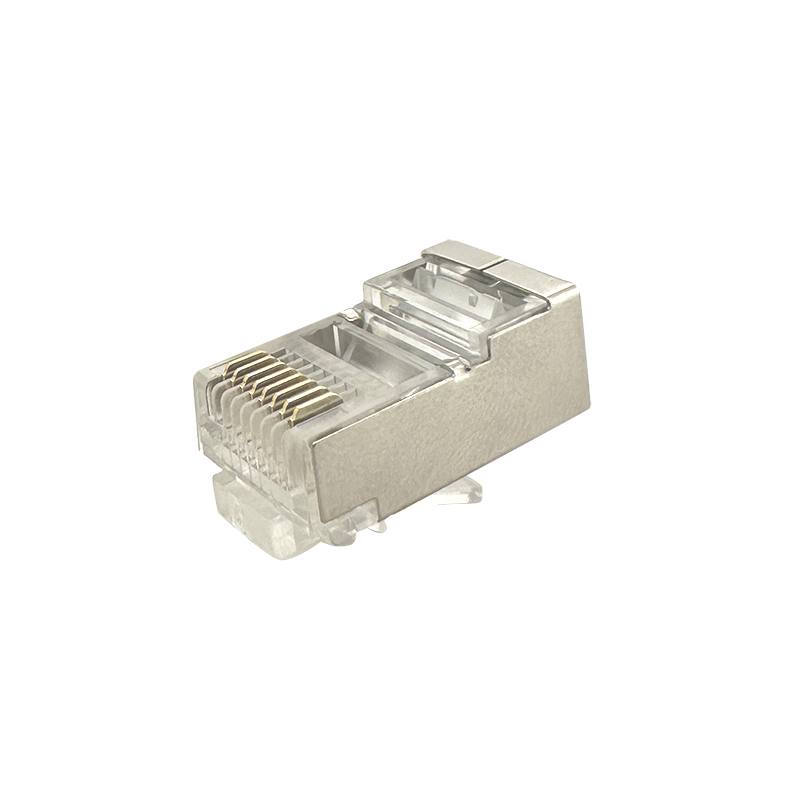

Modular Plug Shield RJ45:RHTLYJ45B-8P
