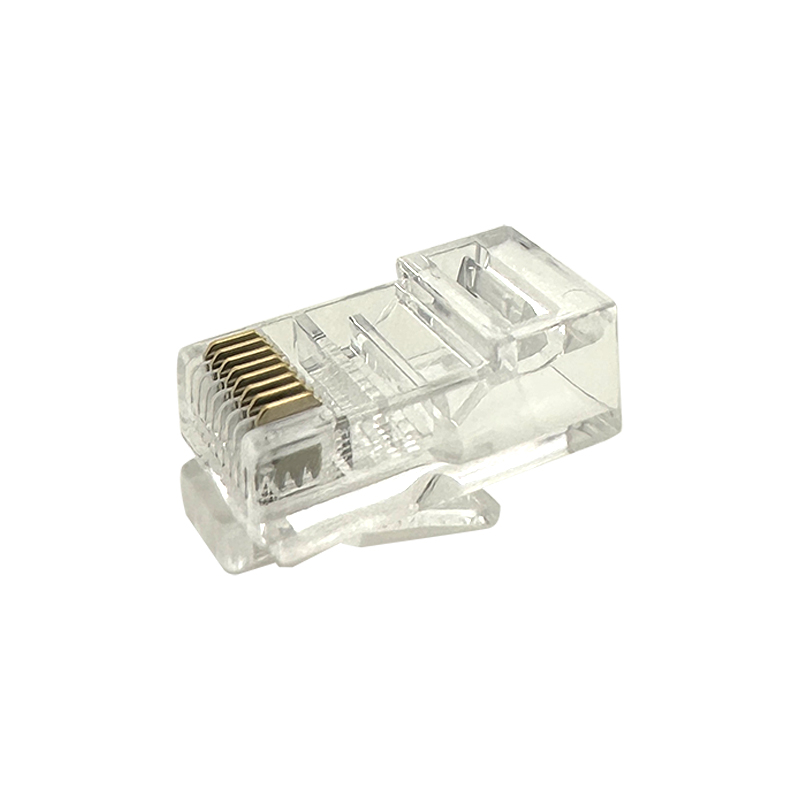

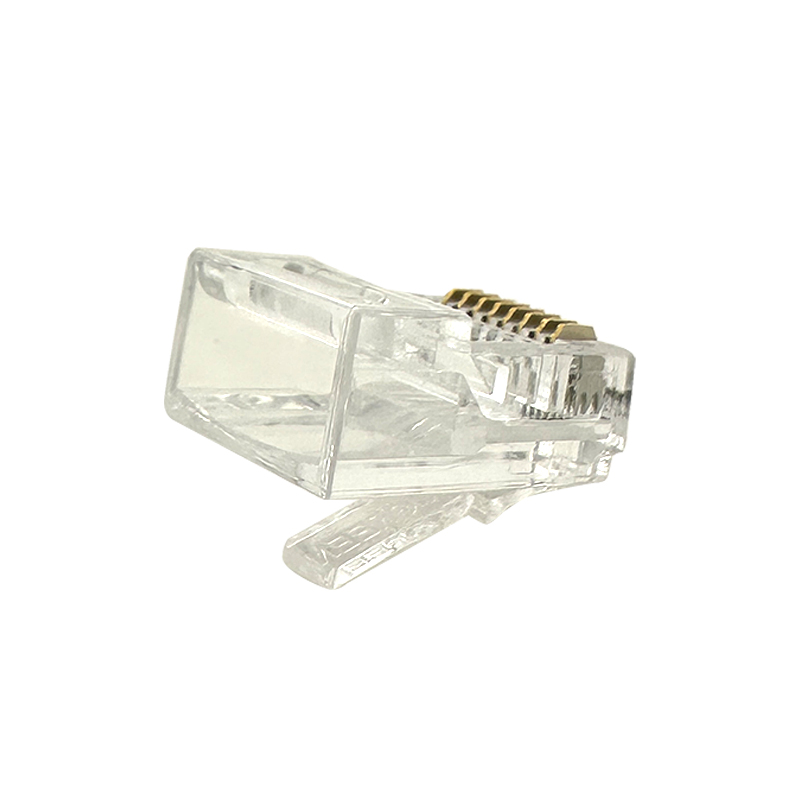

    RJ45 Modular Plug : RE-C-RJ45-8P

    Series Part No: RE-C-RJ45-8P
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews
    RJ45 Modular Plug
    MATERIAL
    1.Housing :Polycarbonate(pc) UL 94V-0 or UL 94V-2
    2.Contact :Phosphor Bronze, Hard Gold plated over nickel
    3.Shielding:0.25mm Thickness Copper Alloy With Tin plated
    4.Gold plating:3u inch,6u inch,15u inch,30u inch,50u inch
    ELECTRICAL
    1.Current Rating:1.5 Amps
    2.Voltage Rating:125 Volts AC
    3.Insulation Resistance:100 Megohms Min.
    4.Contact Resistance:39 Millmhos Max.
    5.Withstanding Voltage:1000VAC RMS 50Hz or 60Hz 1 Min.
    MECHANICAL
    CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
    DURABILITY:750MATING CYCLES MINI
    WORKING TEMPERATURE:-40°C ~60°C
