Features
-10-Contact Points: The "10C" indicates that the jack has 10 contact points for connecting wires, which typically support more complex wiring systems, such as those used in certain networking applications.
-Modular Design: Like other RJ connectors, the RJ50-10P10C jack is modular, meaning it can be plugged and unplugged easily, making it a flexible solution for many networking setups.
-Used in High-Speed Data Transmission: The 10 contacts are designed to support high-speed data transmission, which can be important for applications that require more data channels, such as some industrial or specialized networking systems.
-Compatibility: This jack is often compatible with other networking equipment such as patch panels, switches, routers, and other telecommunication hardware, particularly in systems that need a 10-pin connection for more advanced or specialized tasks.
Applications
1.Industrial Networking Systems
2.Multi-Line Telephone Systems
3.Data Transmission and Communication
4.Networking in Telecommunications
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperatur
Technical Documents
Please contact us for more information.

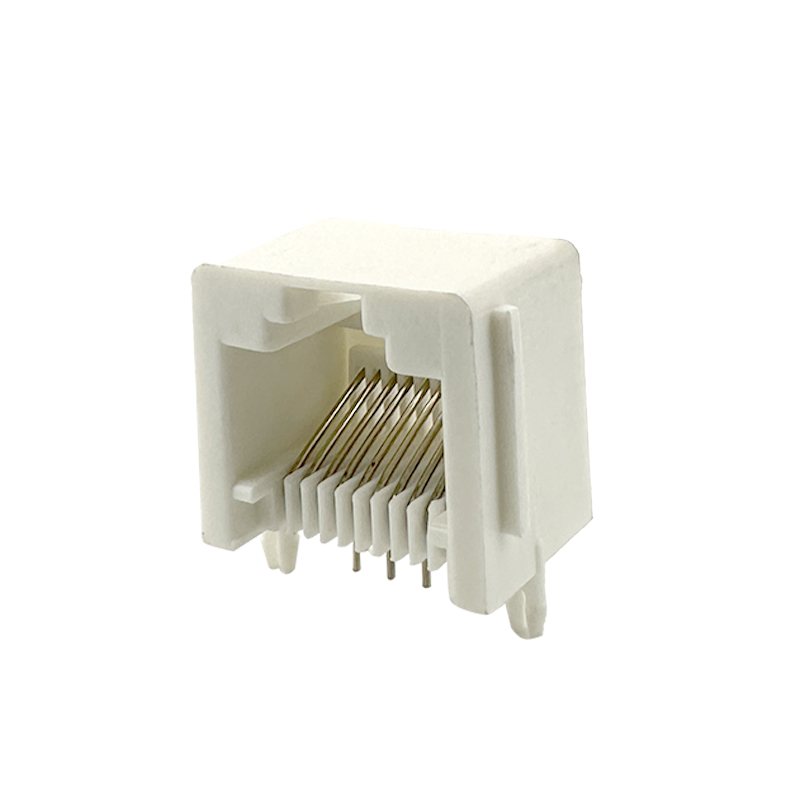

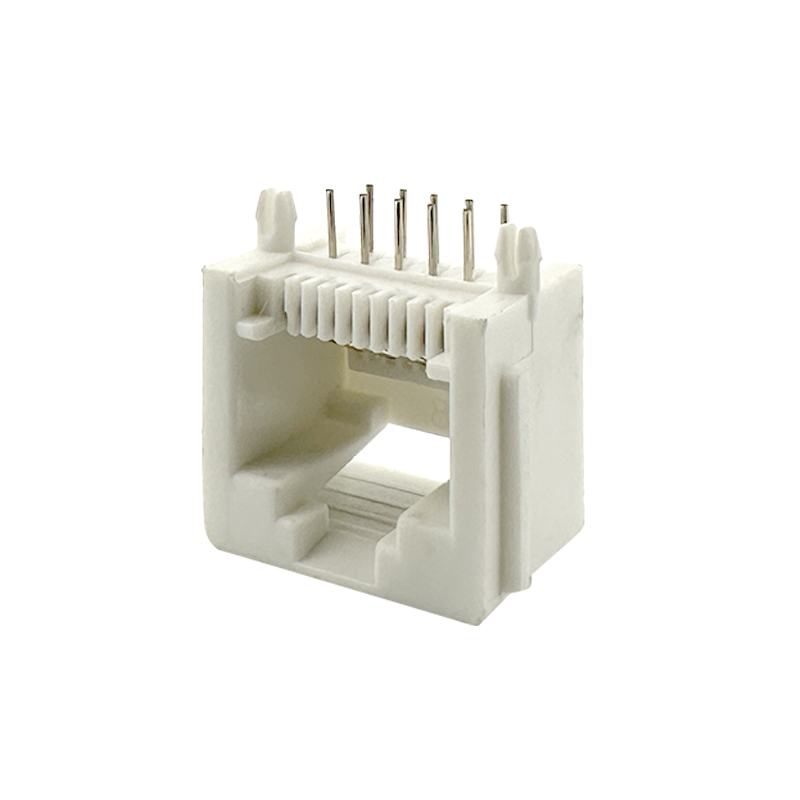

RJ50-10P10C Jack:RHTLY04-10P10C
