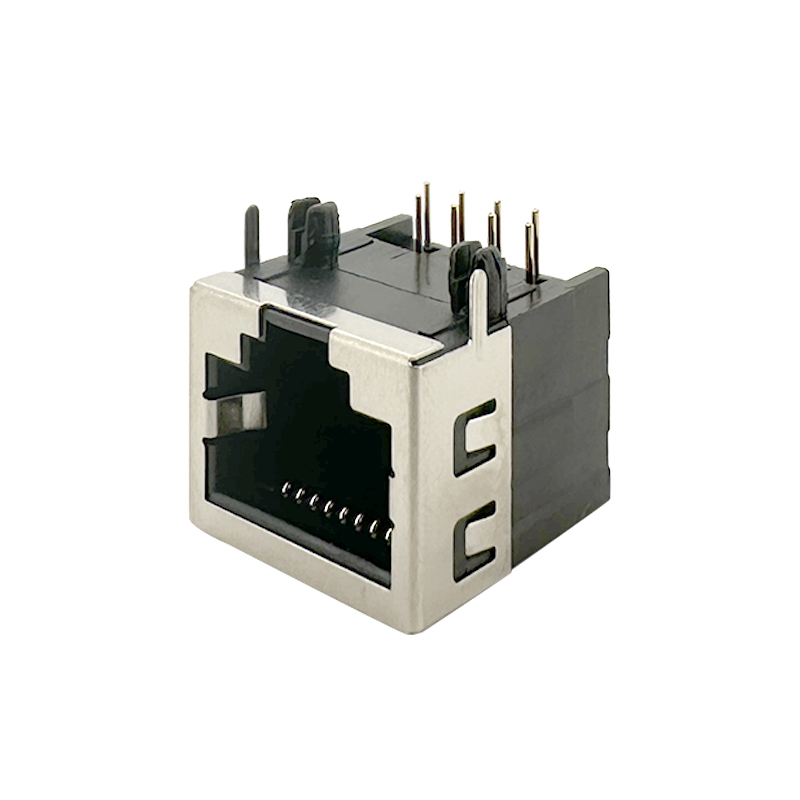

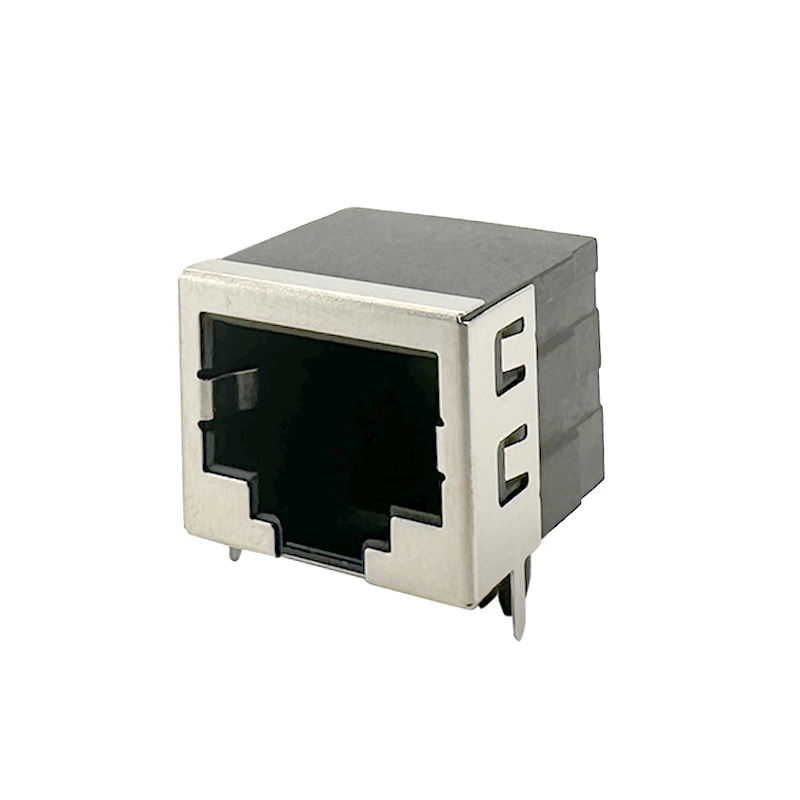

    RJ45-8P8C Jack:RHTLY39-8P8C

    Series Part No: RHTLY39-8P8C
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Housing Material: High-temperature thermoplastic (often UL94V-0 rated for flame resistance)

    -Shielding: Available in shielded and unshielded variants

    -Durability: Typically rated for 750 to 2000 insertion/removal cycles

    -Some enhanced versions support 10GBASE-T (10 Gbps) with proper cabling

    Applications

    1.Ethernet Networking

    2.Power over Ethernet

    3.Structured Cabling Systems

    4.Industrial Automation

    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze ∅0.46mm

    Plating:     Gold Plating

    Shield:      Brass,Tin Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C

    Technical Documents

    Please contact us for more information.
