Features
-Modular Design: RJ12 is a modular connector, which means it can easily be plugged into compatible sockets or jacks. This design makes it user-friendly and easily replaceable.
-This modular design is commonly seen in telecommunication and data communication systems for quick and simple connections.
-RJ12 connectors are typically housed in durable plastic materials, ensuring protection for the internal contacts and connectors.
-The plastic housing is lightweight, resistant to impact, and helps protect the contacts from external damage, providing long-term reliability.
Applications
1.Multi-Line Telephone Systems
2.Fax Machines
3.Intercom Systems
4.Security Systems
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

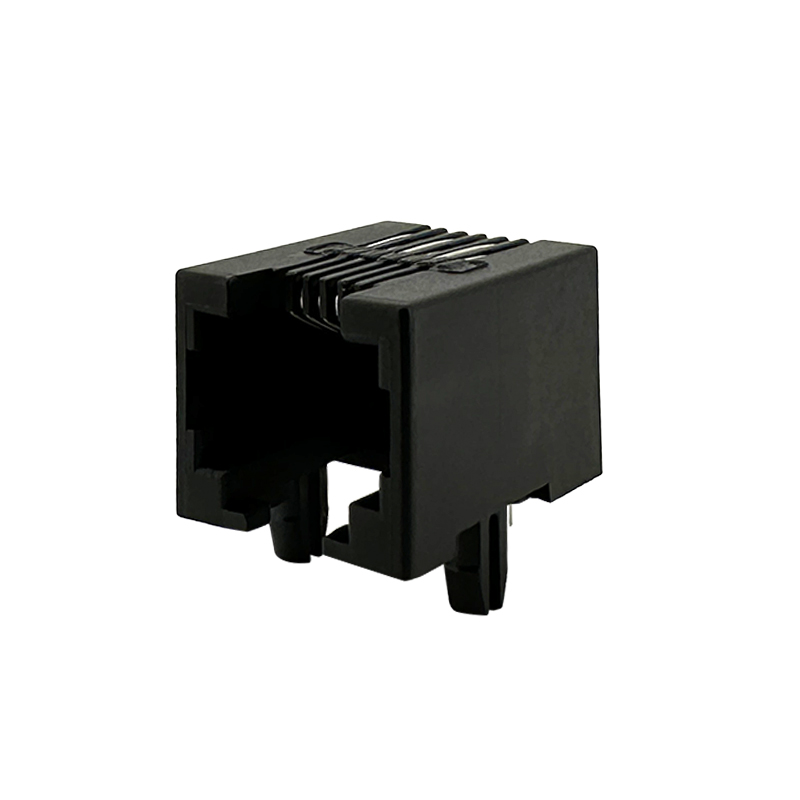

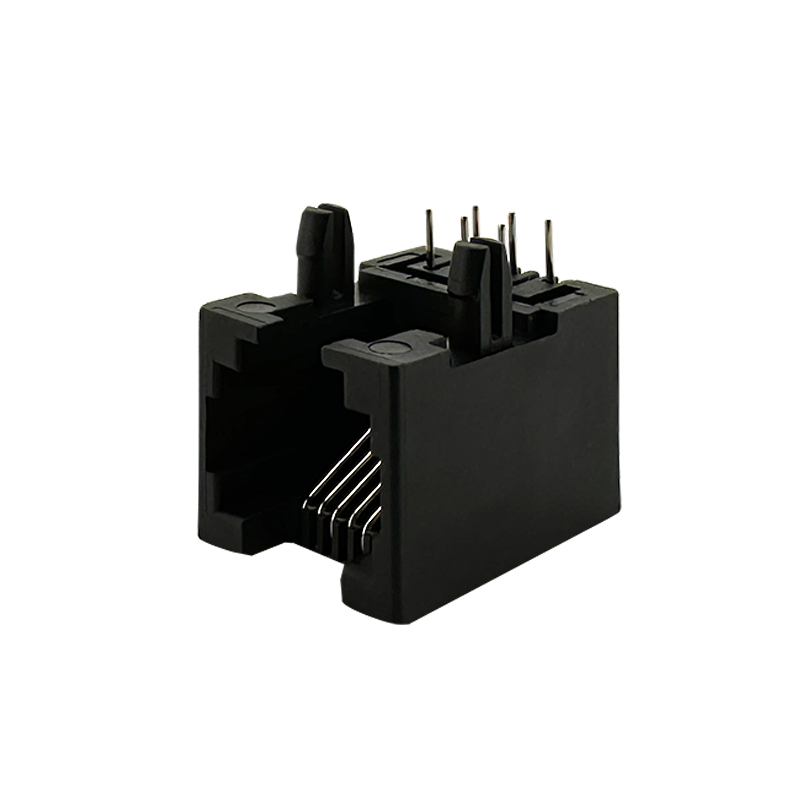

RJ12-6P6C Jack:RHTLY36-6P6C
