Features
-Connector Type: RJ12, which is similar to RJ11 but with a larger configuration to accommodate up to 6 conductors.
-Configuration: 6P6C (6 Position 6 Conductor), meaning it has 6 positions and 6 conductors (pins). This configuration allows for multi-line telephone connections or specific data applications that require additional conductors.
-Size: Compact and standardized size suitable for integration into telephone equipment, wall plates, patch panels, and other devices requiring RJ12 connectivity.
-Compatibility: Designed to accept standard RJ12 modular plugs, ensuring compatibility with various telecommunications devices, including multi-line telephones, analog modems, and certain networking equipment.
Applications
1.Multi-Line Telephony
2.Analog Modem Connection
3.Small Business Telephony
4.Industrial Applications
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

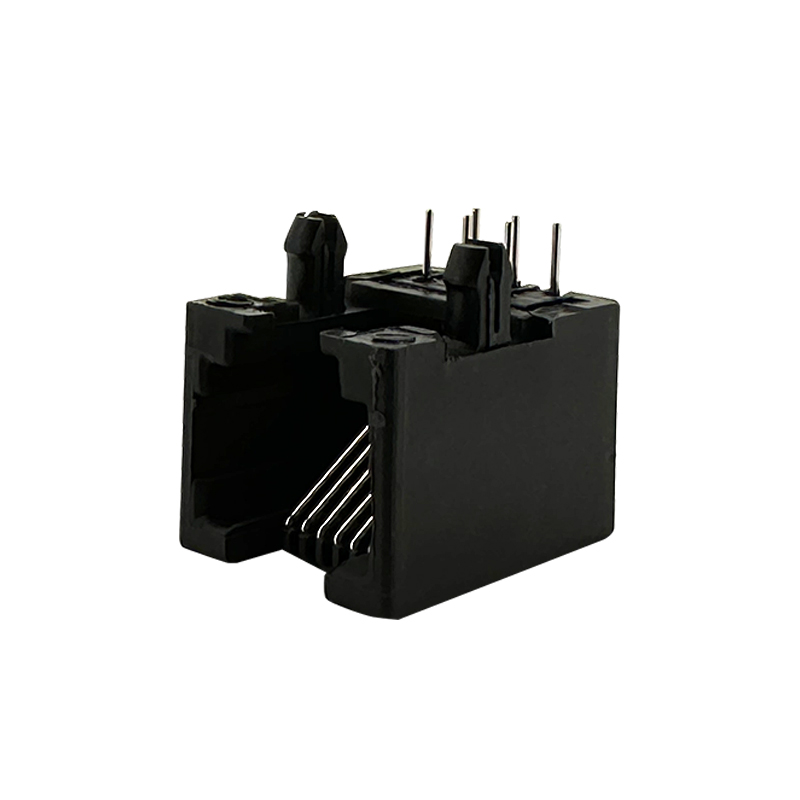

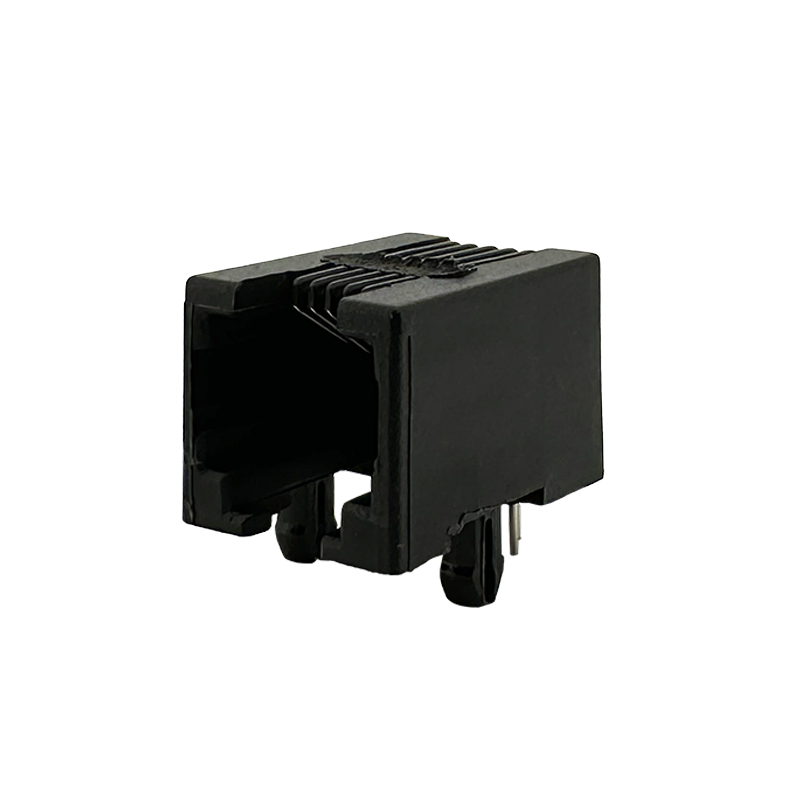

RJ12-6P6C 1x1 Jack:RHTLY41-6P6C
