Features
-It is typically used in telephone systems for voice communication.
-Vertical mounting is ideal for space-constrained applications and provides a more organized and compact design.
-The small form factor is especially beneficial for consumer electronics, communication devices, and telecom equipment.
-The materials used help provide reliable connections and reduce wear over time, even with repeated insertions of RJ11 plugs.
Applications
1.Residential Telephony
2.Commercial and Office Settings
3.Retail and Hospitality
4.Industrial and Manufacturing
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.

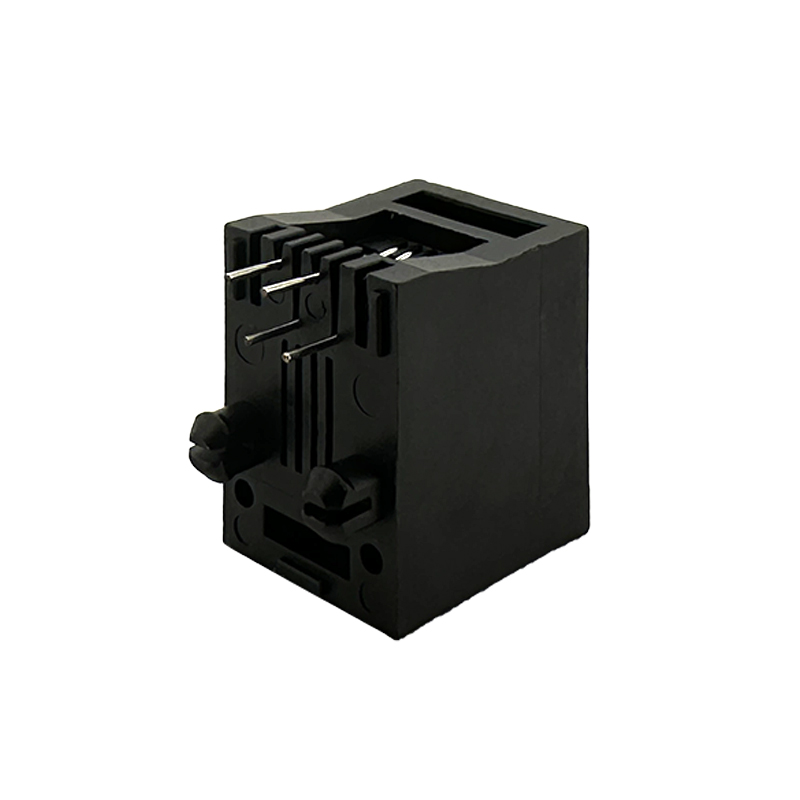

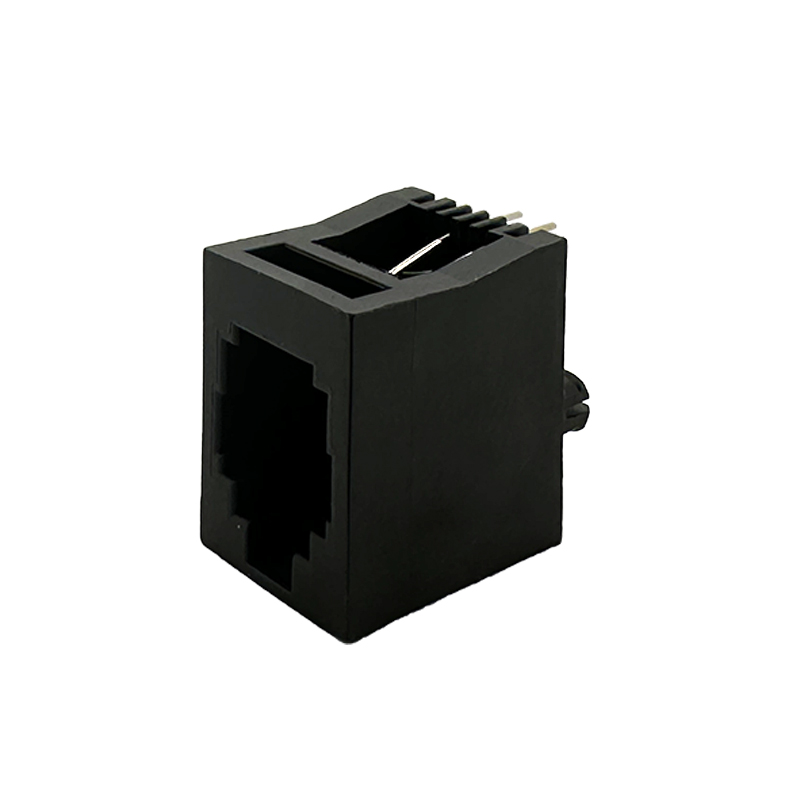

RJ11 4P4C Jack Vertical :RHTLY53-4P4C
