Features
-UL20080 specification provides a reliable ribbon cable solution for suitable electronic wiring applications.
-Available in 1.25mm or 1.5mm pitch configurations for different connection requirements.
-Rainbow color coding makes individual conductors easy to identify during wiring, assembly, and maintenance.
-Flat ribbon construction keeps multiple conductors neatly aligned for organized cable management.
Applications
1.Industrial Automation
2.Communication Equipment
3.Computer & Peripheral Equipment
4.Control Systems

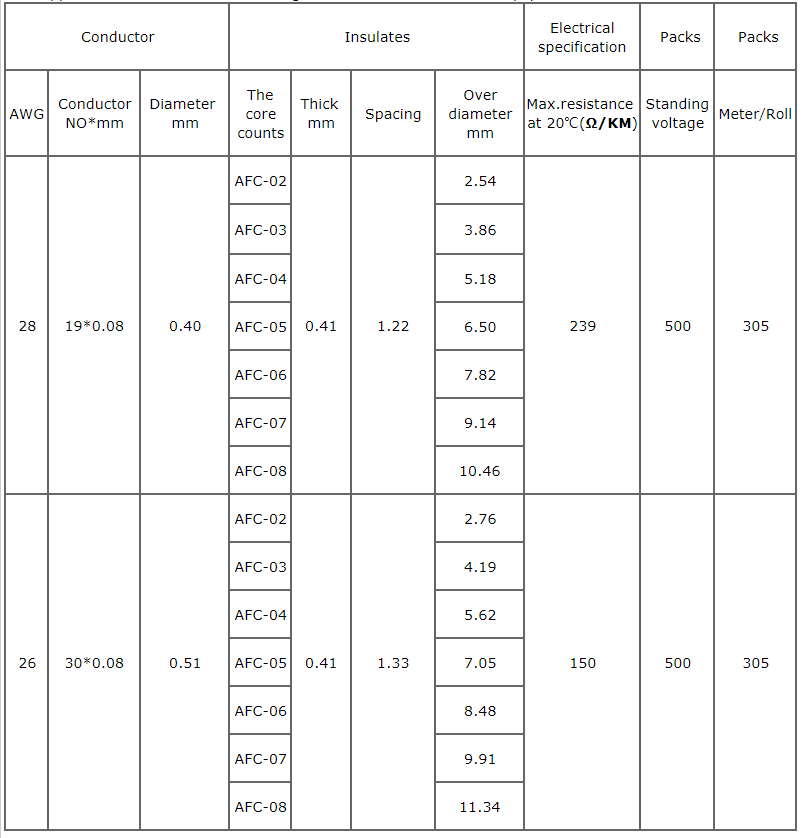

Specifications
ORDER INFORMATION:
RHTQYAB-AFC-08-28AWG-1.5-R-1
08: 02-08pin
28AWG: or 26AWG
pitch:1.25mm or 1.5mm
R: Red L: Blue
Length /Reel: 1-30.5M/Reel 2-76.5M/Reel 3-153M/Reel 4-305M/Reel
UL20080 PVC FLAT WIRE
Product Category: PVC FLAT CABLE
Temperature Rating: 80℃
Rated voltage: 30V
Test voltage: 2000V
Insulation Material: PVC
Conductor material: bare copper/tinned copper/sliver copper
Application： For internal wiring of electronic and electrical equipment
Package:
TYPE 1: 30.5 M TYPE 2 : 76.5 M TYPE 3 : 153 M TYPE 4 : 305 M
Technical Documents
Please contact us for more information.
Rainbow Ribbon Cable 1.25mm or 1.5mm (UL20080) : RHTQYAB-AFC
