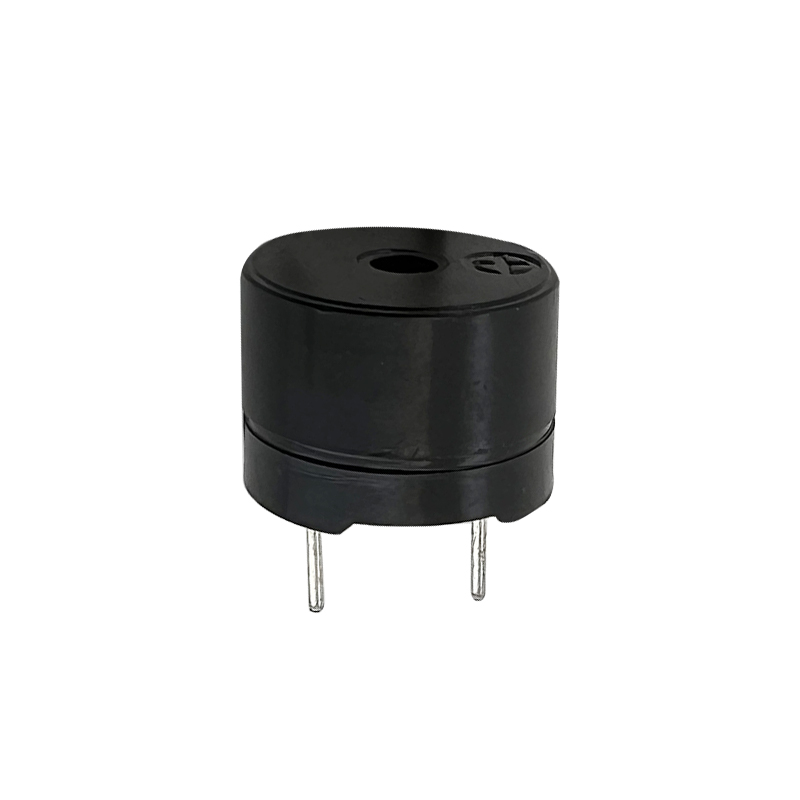

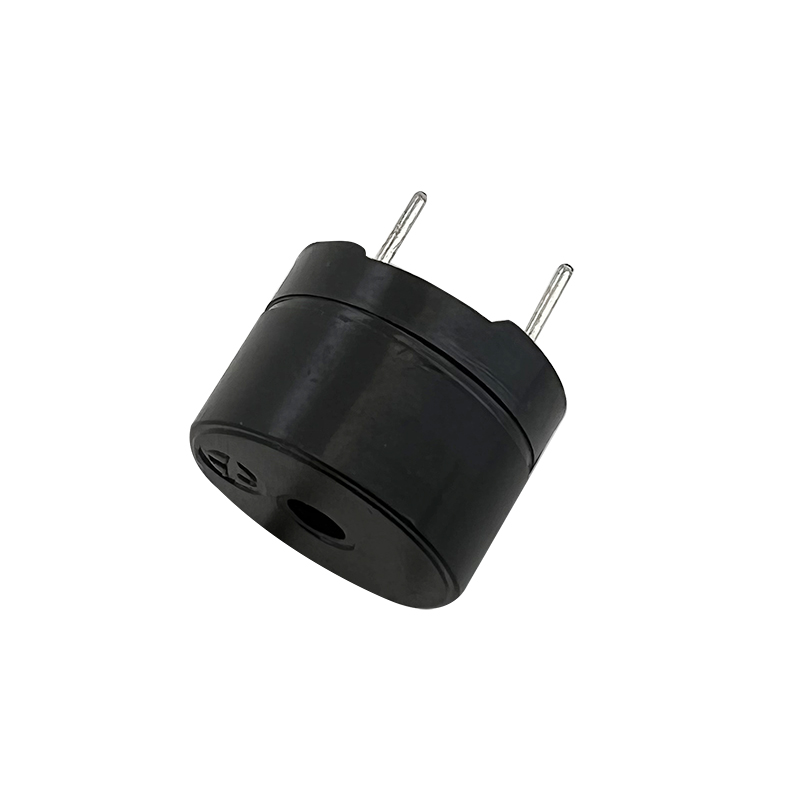

Externally driven magnetic buzzers:RHTCYT-12x8.5

Series Part No: RHTCYT-12x8.5

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Clear sound reproduction with stable frequency characteristics for accurate audio signal indication

-Compact design enables flexible installation in consumer electronics, industrial equipment, and smart devices

-Strong electromagnetic performance provides dependable sound generation and consistent operation

-Easy PCB mounting and convenient assembly for efficient product integration

Applications

1.Emergency Warning Systems
2.Industrial Automation Equipment
3.Measurement Instruments
4.Testing Equipment

Specifications

Magnetic Transducer Buzzer
Size: Ø12*8.5*6.5mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-12x8.5-A 1~2V 2048Hz 30mA 85dB 1.5V
RHTCYT-12x8.5-B 1~2V 2048Hz 10mA 80dB 1.5V

Technical Documents

Please contact us for more information.
