Features
-High sound output and clear acoustic performance for reliable audio alerts and signal notifications
-Compact structure with space-saving design, suitable for miniaturized electronic devices and embedded systems
-Low power consumption with stable electromagnetic operation for efficient and long-term use
-Excellent durability, fast response, and reliable sound generation for various electronic applications
Applications
1.Consumer Electronics
2.Automotive Electronics
3.Industrial Control Systems
4.Security Alarm Systems
Specifications
Magnetic Transducer Buzzer
Size: Ø9*5.5*4mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-09x5.5-A 1~2V 3100Hz 80mA 80dB 1.5V
RHTCYT-09x5.5-B 2~6V 2731Hz 80mA 82dB 3V
Technical Documents
Please contact us for more information.

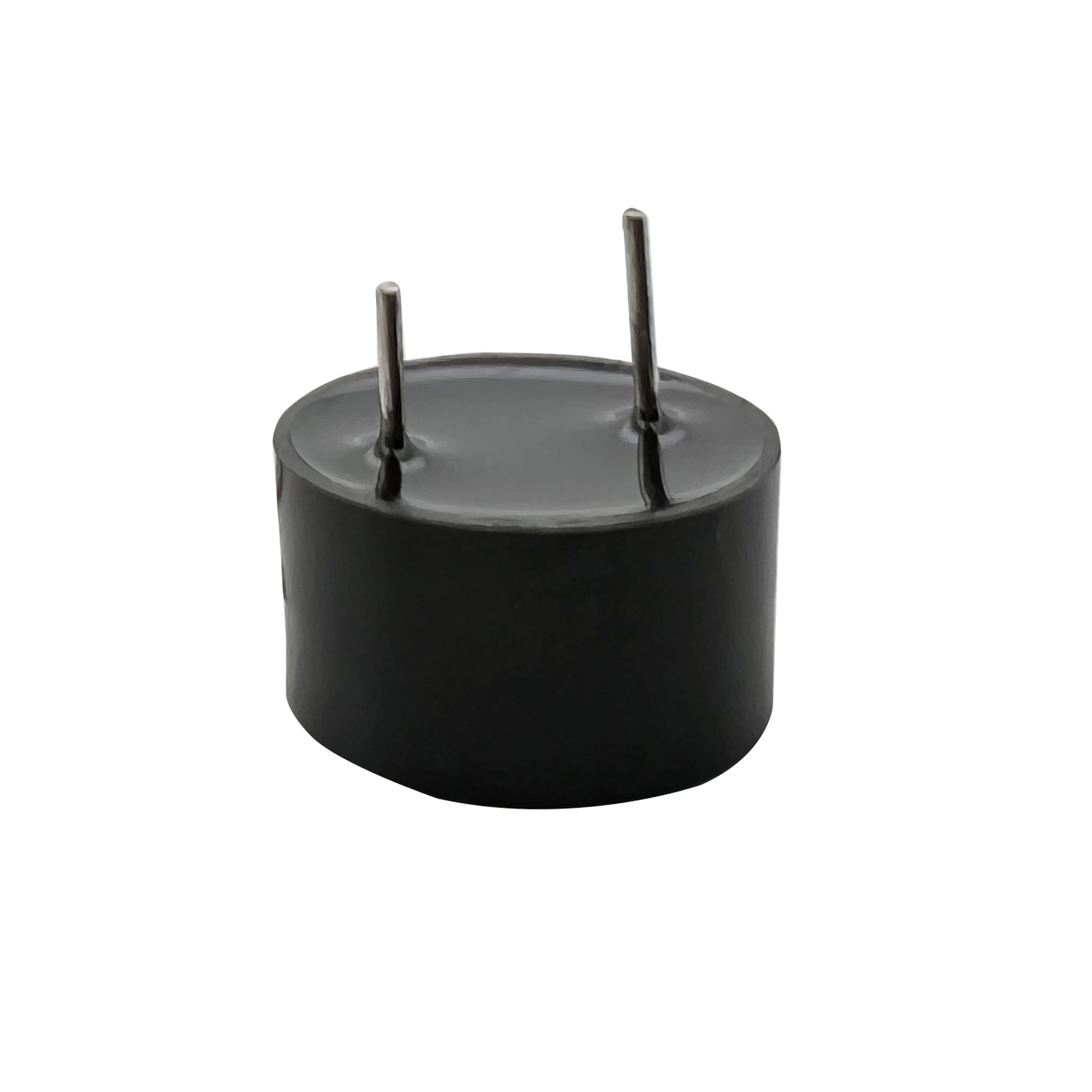

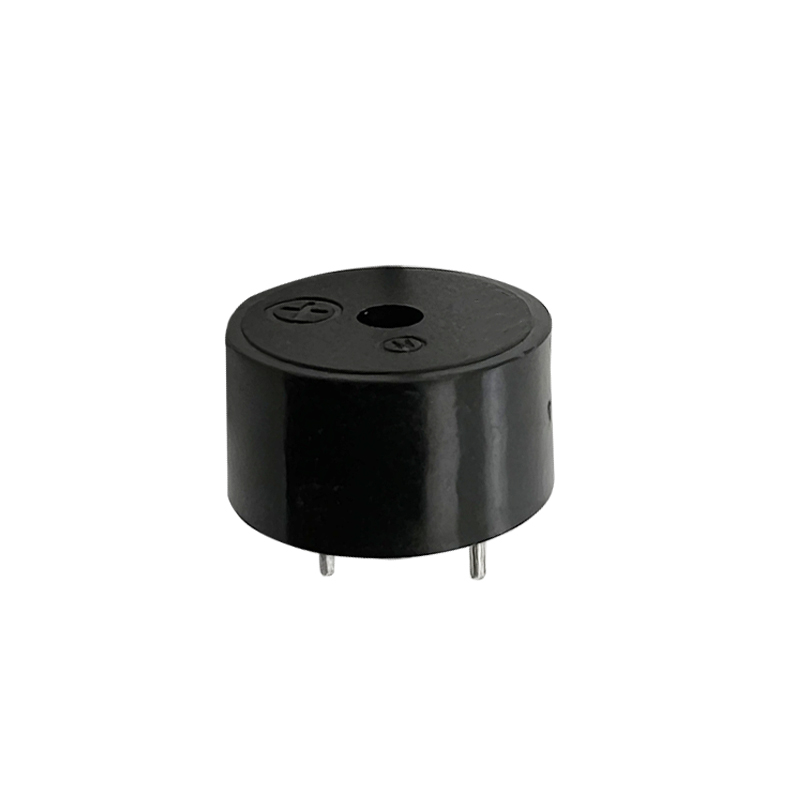

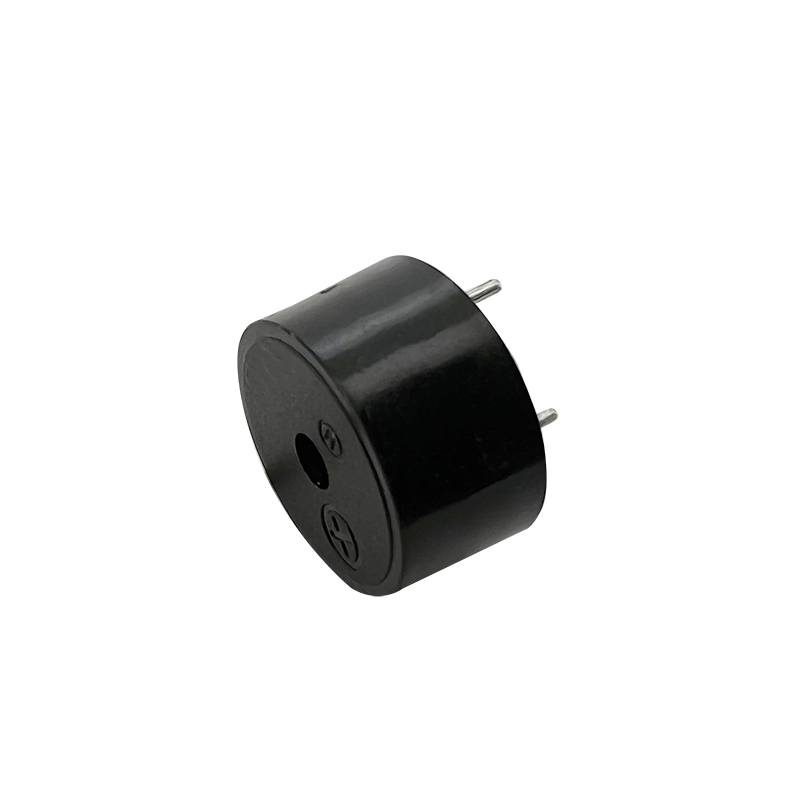

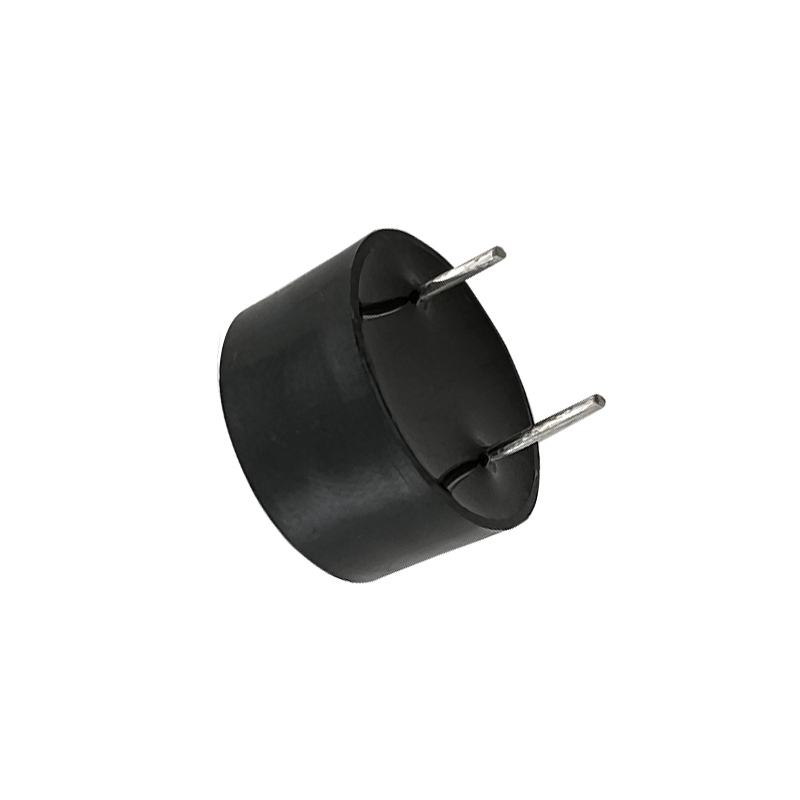

Externally driven magnetic buzzers:RHTCYT-09x5.5
