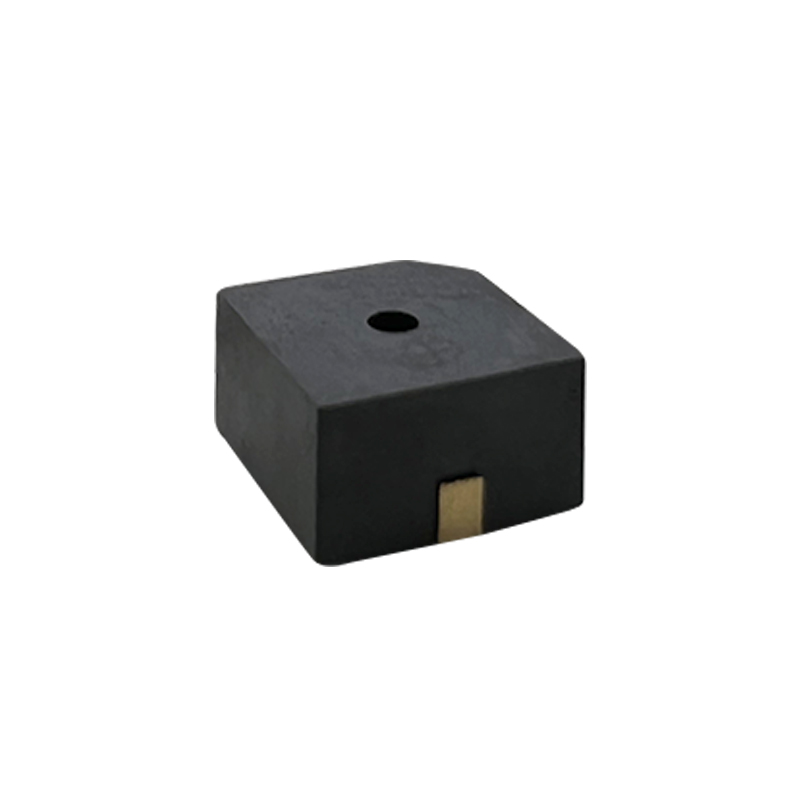

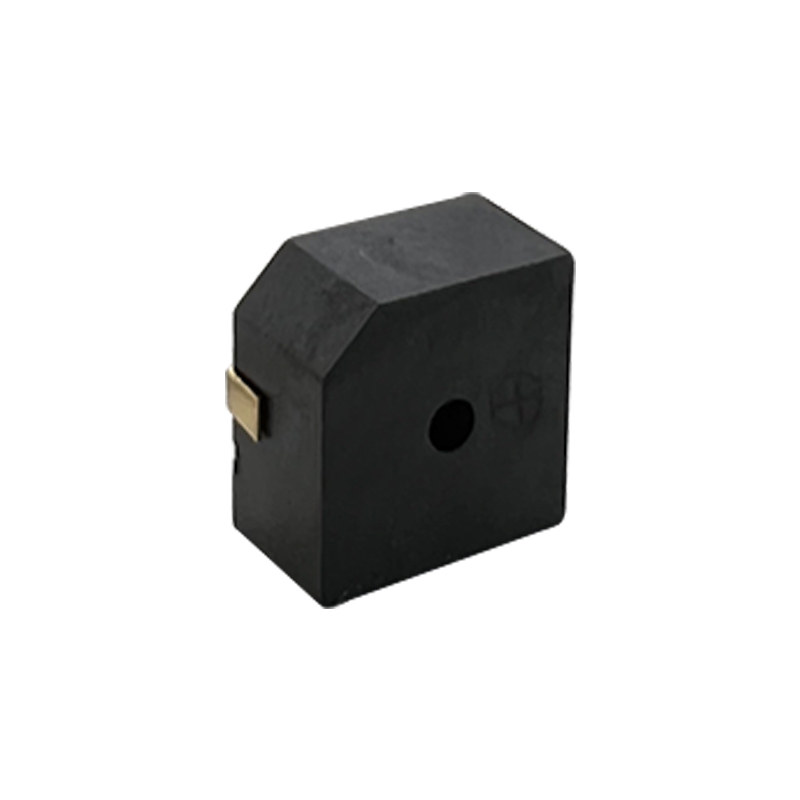

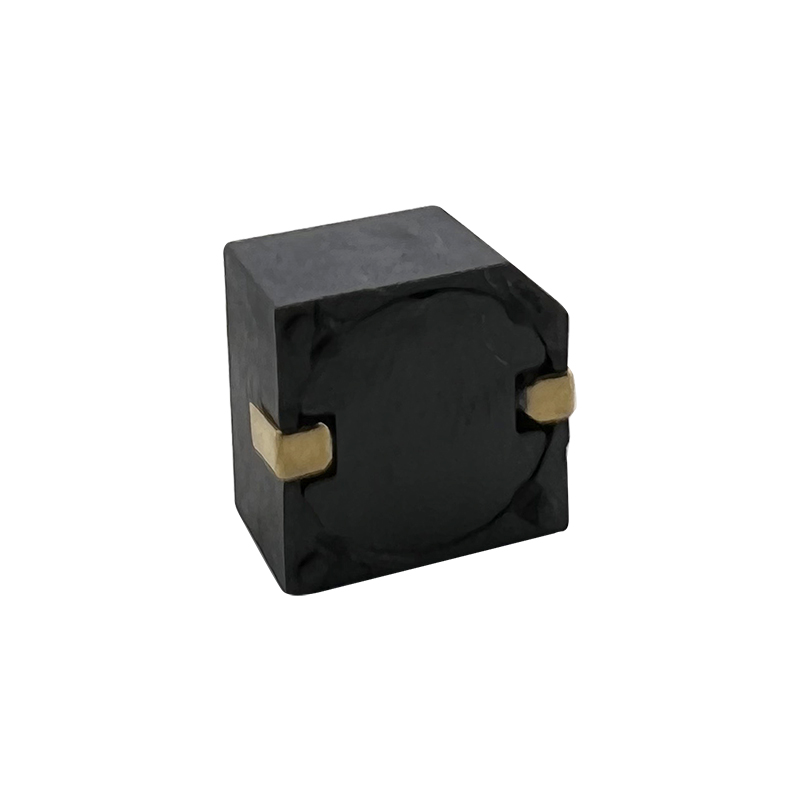

    SMD Electro-magnetic Buzzer With Self Drive:RHTCYMT-10x05

    Series Part No: RHTCYMT-10x05
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Self Drive Function：Built-in oscillation circuit eliminates the need for an external drive source, simplifying circuit design and integration.

    -Compact SMD Package：Miniature surface mount design saves PCB space and supports high-density electronic assemblies.

    -Stable Sound Output：Provides consistent audio performance with clear and reliable alert signals.

    -Low Power Consumption：Efficient electromagnetic design reduces energy usage and supports portable electronic applications.


    Applications

    1.Consumer Electronics

    2.Industrial Automation Equipment

    3.Security & Alarm Systems

    4.Smart Home Devices


    Specifications

    Rated Voltage                                5VDC
    Operating Voltage                         4～7VDC
    Resonant Frequency                   2700±300 Hz
    Sound Output at 10cm                 83dB Min.
    Current Consumption                  30mA  Max.
    Operating Temperature               -30～+70℃
    Weight                                             1g

    Technical Documents

    Please contact us for more information.
