Features
-Built-In Self Drive Circuit：Integrated oscillator design allows direct operation without an external driving circuit, simplifying system design.
-Ultra Compact SMT Design：Small footprint package saves PCB space and is ideal for miniaturized electronic devices.
-High Efficiency Sound Generation：Electromagnetic structure provides strong and stable acoustic output with efficient energy conversion.
-Clear Audio Alert：Produces distinct and reliable sound signals for warning, notification, and indication functions.
Applications
1.Automotive Electronics
2.Medical Equipment
3.Communication Devices
4.IoT Applications
Specifications
Rated Voltage 5VDC
Operating Voltage 4～7VDC
Resonant Frequency 2300±300 Hz
Sound Output at 10cm 85dB Min.
Current Consumption 30mA Max.
Operating Temperature -30～+70℃
Technical Documents
Please contact us for more information.

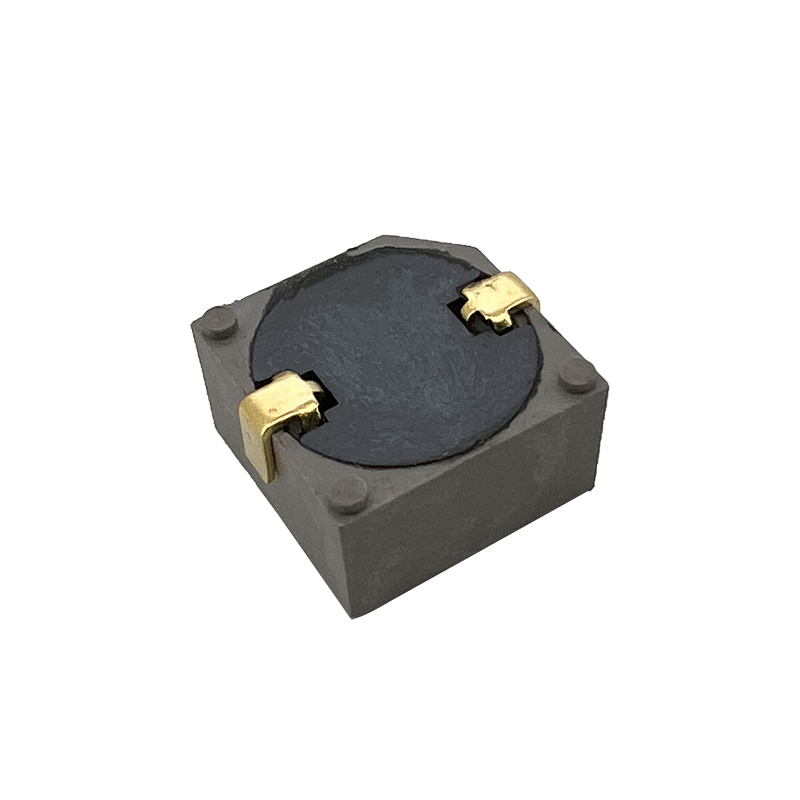

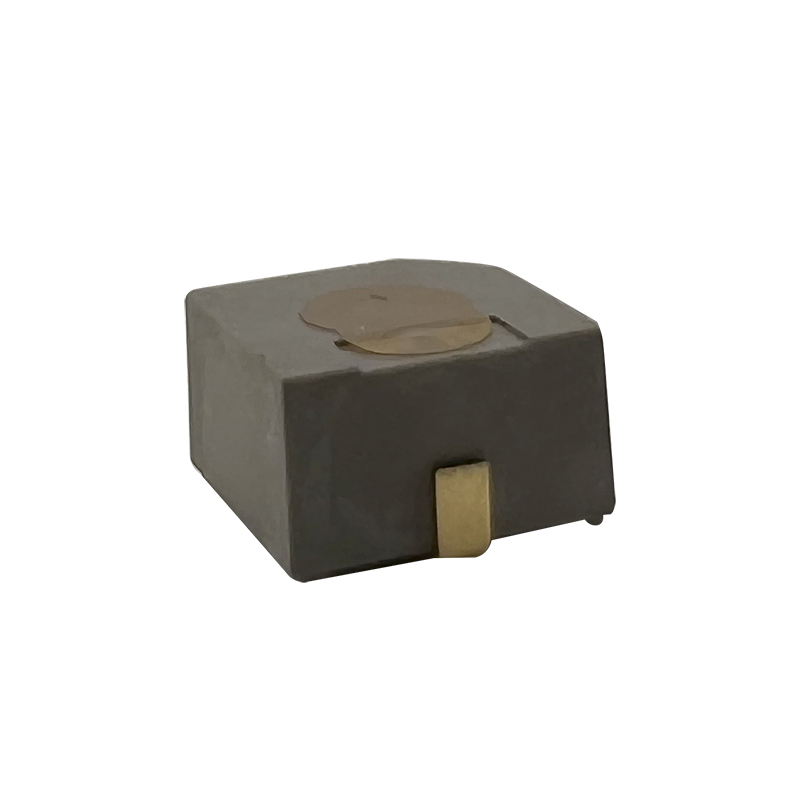

SMD Electro-magnetic Buzzer With Self Drive:RHTCYMT-13x07A
