Features
-High Sound Output：Delivers clear, sharp, and attention-grabbing alerts suitable for alarms, notifications, and warning systems.
-Low Power Consumption：Efficient piezoelectric technology minimizes energy usage while maintaining reliable performance.
-Durable Construction：Robust housing and materials ensure long service life and stable operation under vibration, temperature variations, and industrial environments.
-Wide Operating Voltage：Compatible with various voltage ranges for flexible application in different electronic systems.
Applications
1.Control Panels
2.Electronic Devices
3.Safety Equipment
4.Communication Devices
Specifications
Piezo Transducer Buzzer
Size: Ø13*2.5mm (Diameter*High)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYPT-13x2.5-A 3...20Vp-p 3.4±0.5KHz 2mA 70dB 5Vp-p
RHTCYPT-13x2.5-B 3...20Vp-p 3.4±0.5KHz 4mA 80dB 10Vp-p
Technical Documents
Please contact us for more information.

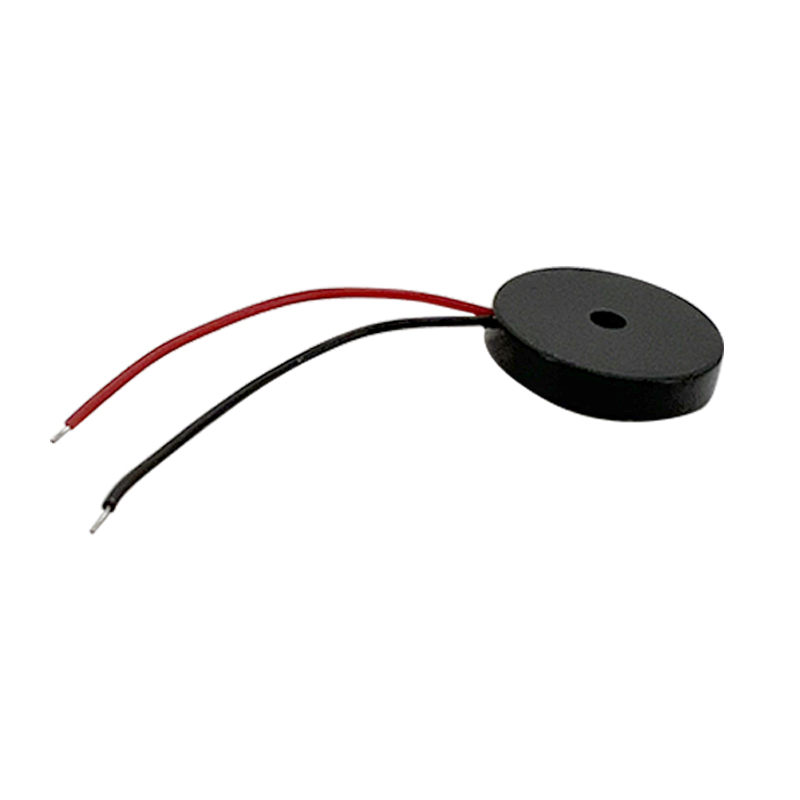

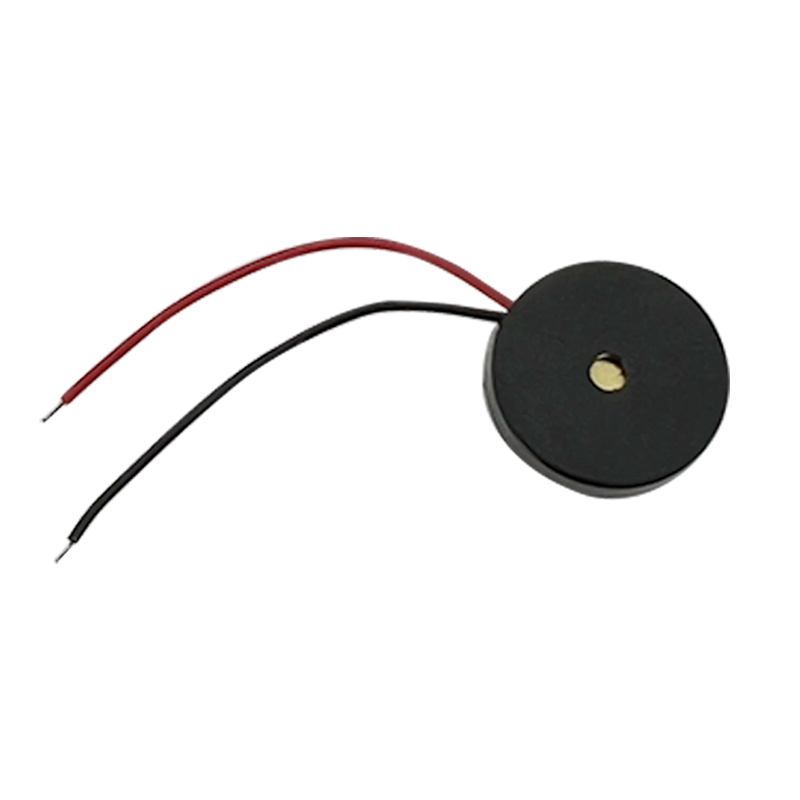

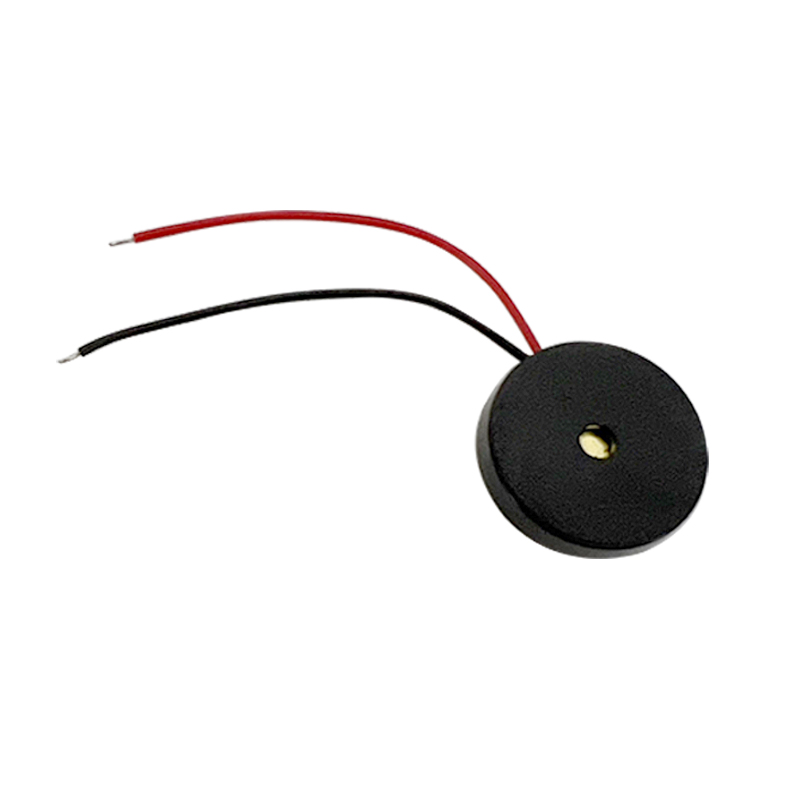

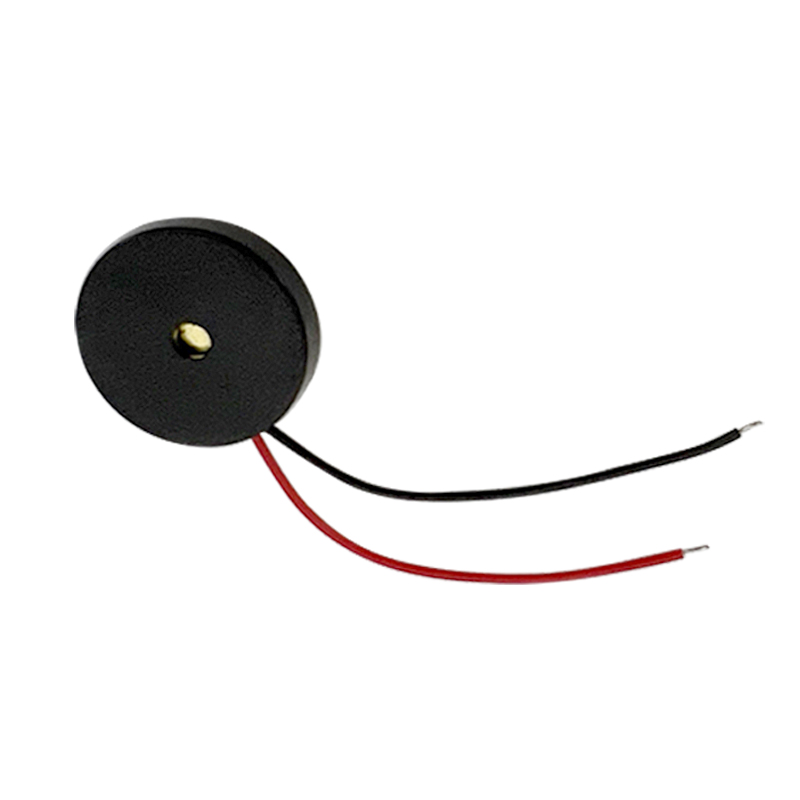

Externally driven piezo buzzer with wire:RHTCYPT-13x2.5
