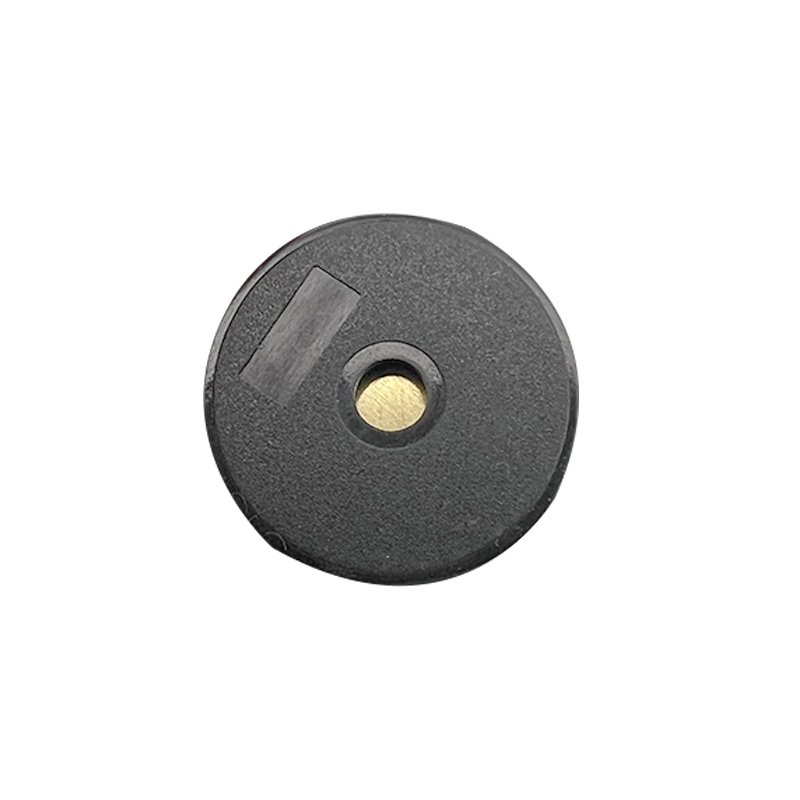

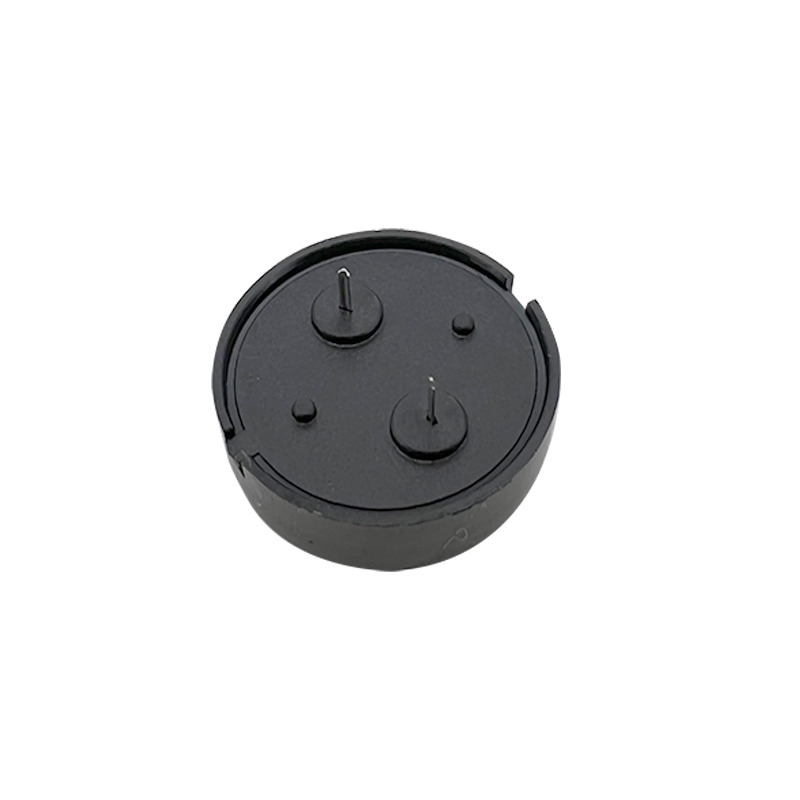

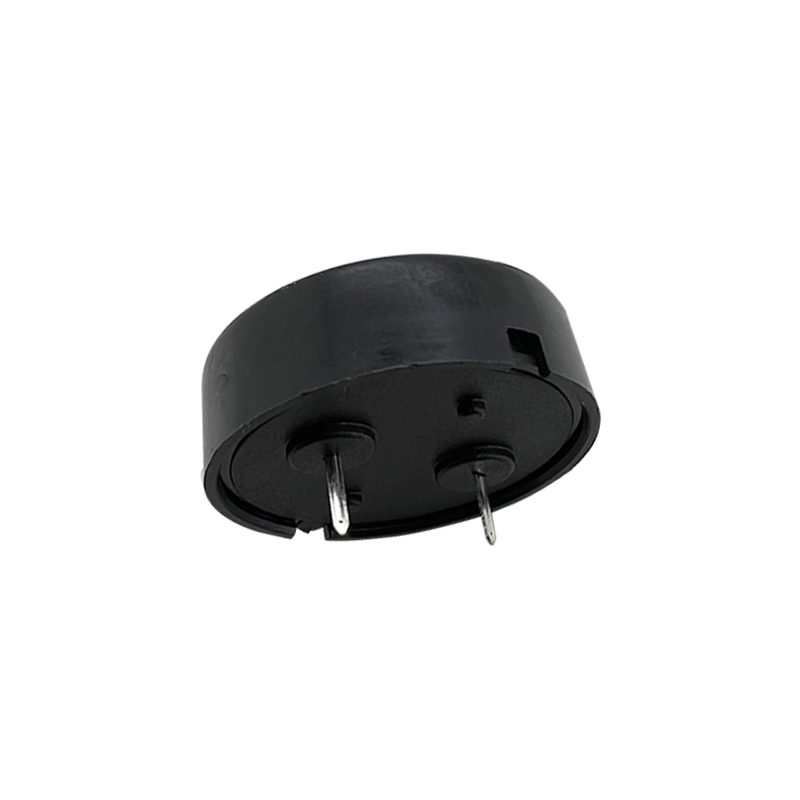

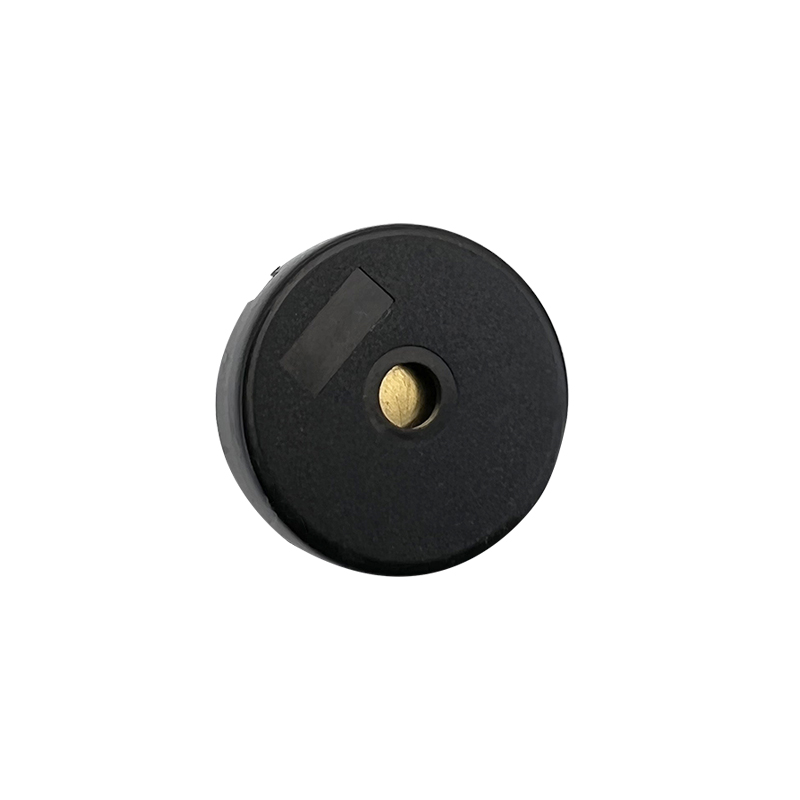

Externally driven piezo buzzer：RHTCYT-22x08

Series Part No: RHTCYT-22x08

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Excellent acoustic response with stable frequency characteristics for accurate audio signaling requirements

-Simple structure and easy integration into PCB circuits, improving assembly efficiency and design flexibility

-Reliable performance under different environmental conditions with good vibration resistance and mechanical stability

-Compact sound solution combining high efficiency, stable output, and dependable operation for electronic applications

Applications

1.Healthcare Equipment
2.Retail Electronics
3.Banking Equipment
4.Environmental Monitoring

Specifications

Piezo Transducer Buzzer
Size: Ø22*8*10mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-22x08-A 1...30Vp-p 4.0±0.5KHz 2mA 75dB 3Vp-p
RHTCYT-22x08-B 1...30Vp-p 4.0±0.5KHz 3mA 80dB 9Vp-p

Technical Documents

Please contact us for more information.
