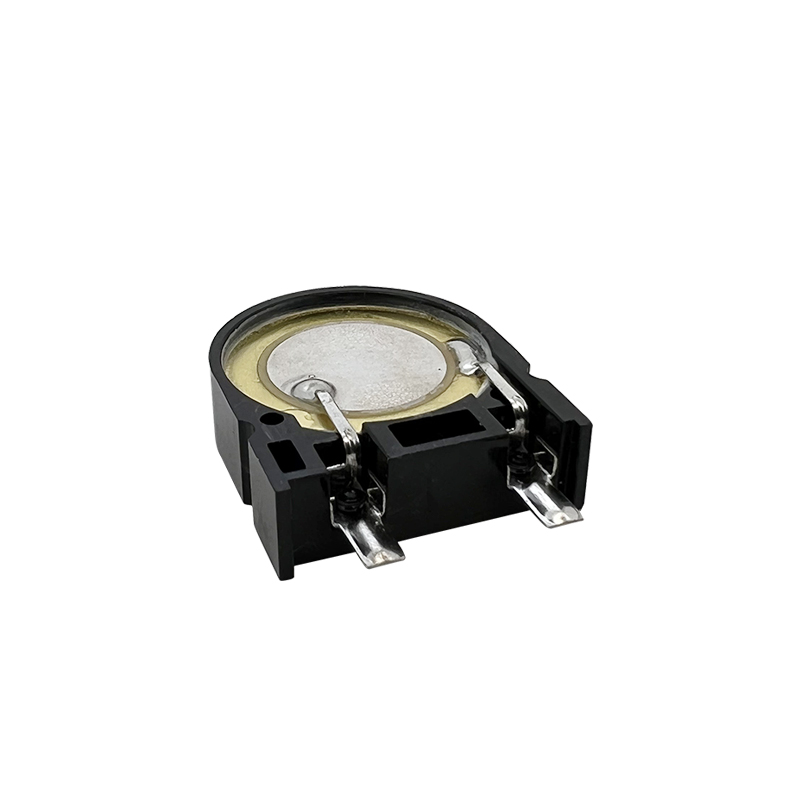

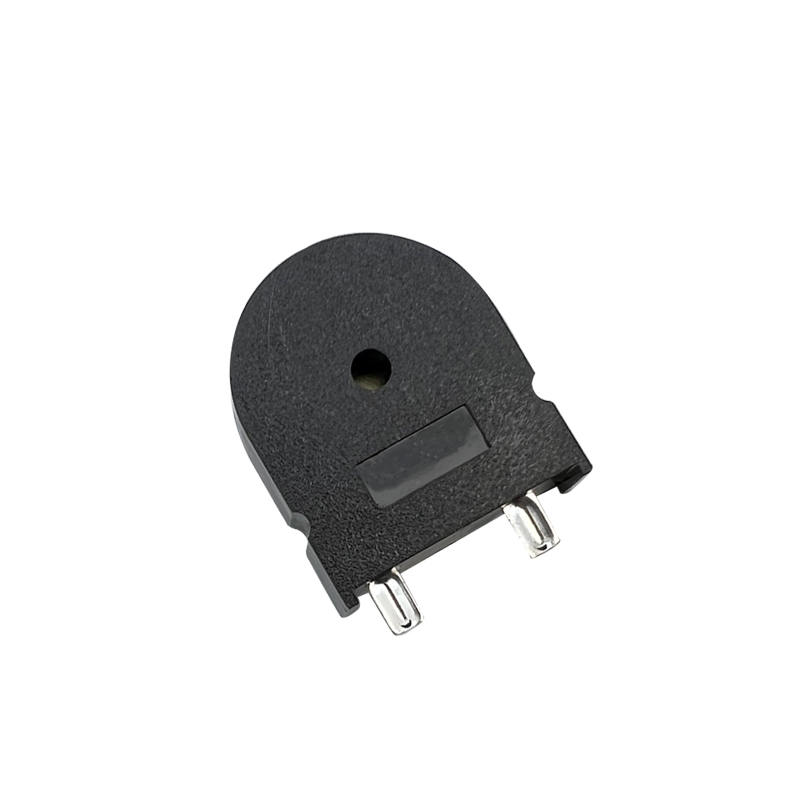

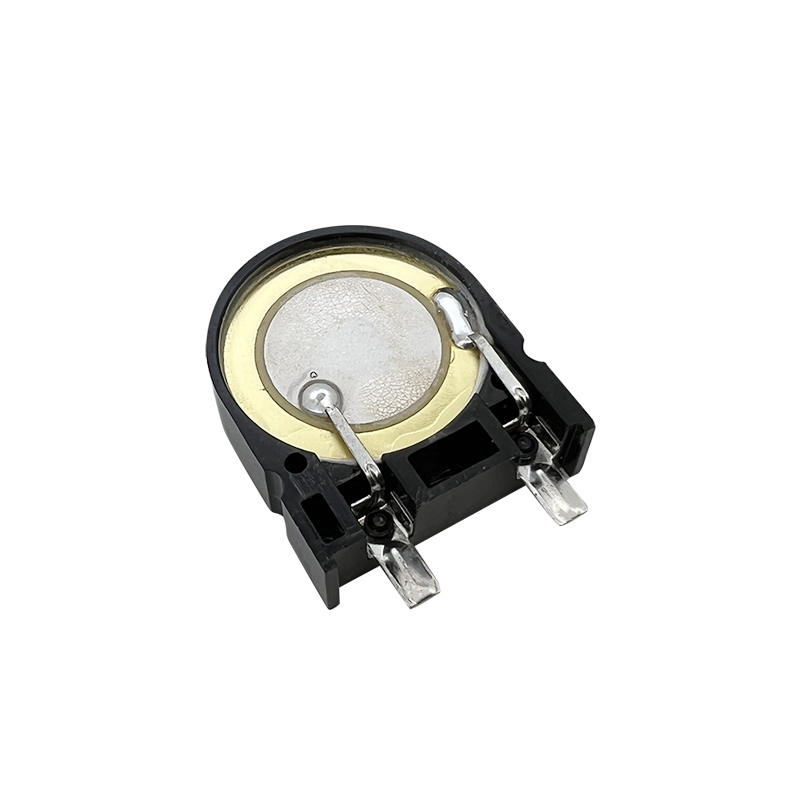

Externally driven piezo buzzer：RHTCYT-22x07

Series Part No: RHTCYT-22x07

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Designed for alarms, indicators, monitoring systems, and electronic control applications

-Reliable audio component offering compact size, strong performance, and cost-effective integration

-Good mechanical strength and environmental adaptability for various electronic environments

-Ideal sound indication solution for modern compact electronic products and smart devices

Applications

1.Home Automation
2.Building Management Systems
3.Test & Measurement Equipment
4.Industrial Machinery

Specifications

Piezo Transducer Buzzer
Size: Ø22*27*12.5mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-22x07-A 1...30Vp-p 4.0±0.5KHz 1.2mA 70dB 3Vp-p
RHTCYT-22x07-B 1...30Vp-p 4.0±0.5KHz 4mA 82dB 9Vp-p

Technical Documents

Please contact us for more information.
