Features
-Small and lightweight design with excellent space efficiency, suitable for compact electronic products and miniaturized device applications
-Stable piezoelectric performance with clear audio output, providing reliable sound indication and alarm functions
-Energy-saving operation with low current consumption, ideal for portable electronics and battery-powered equipment
-High durability and long operating life, maintaining consistent sound performance during continuous use
Applications
1.Automotive Systems
2.Transportation Equipment
3.Factory Automation
4.Security & Alarm Systems
Specifications
Piezo Transducer Buzzer
Size: Ø17*7*10mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-17x08-A 1...30Vp-p 4.0±0.5KHz 1mA 85dB 5Vp-p
RHTCYT-17x08-B 1...30Vp-p 4.0±0.5KHz 2.5mA 80dB 9Vp-p
Technical Documents
Please contact us for more information.

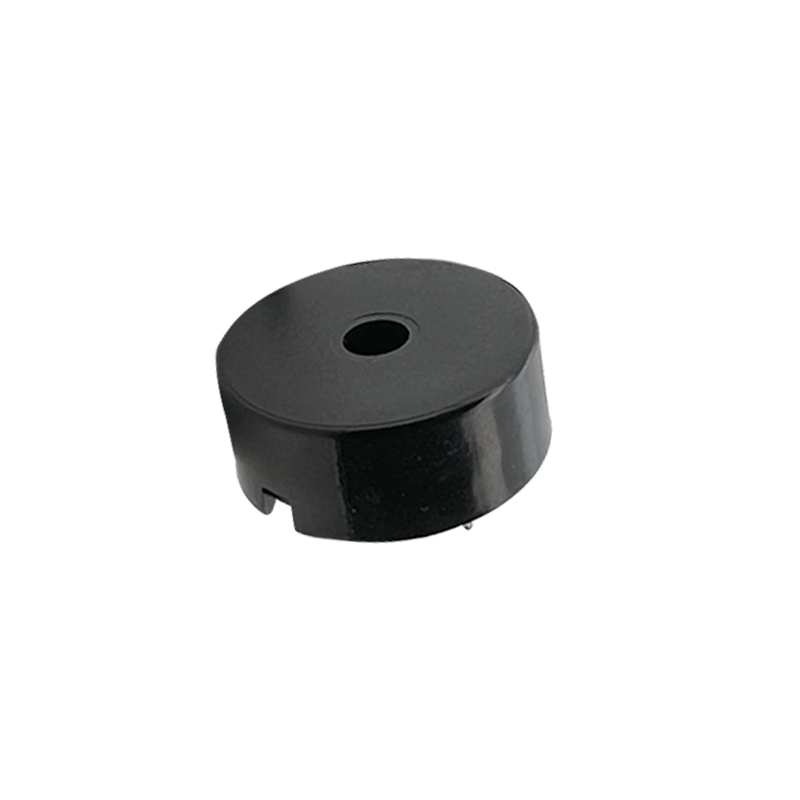

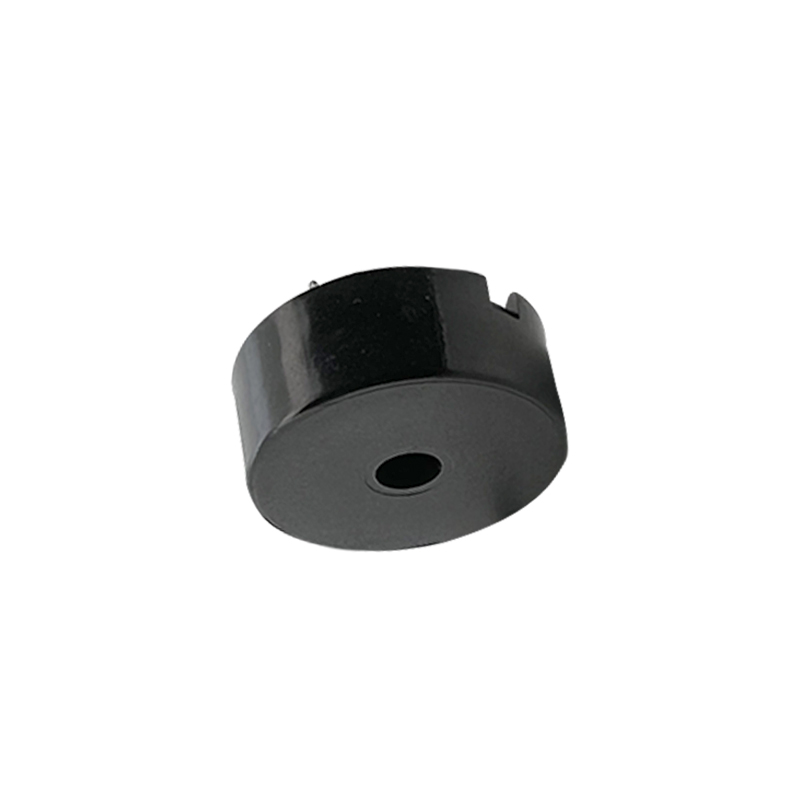

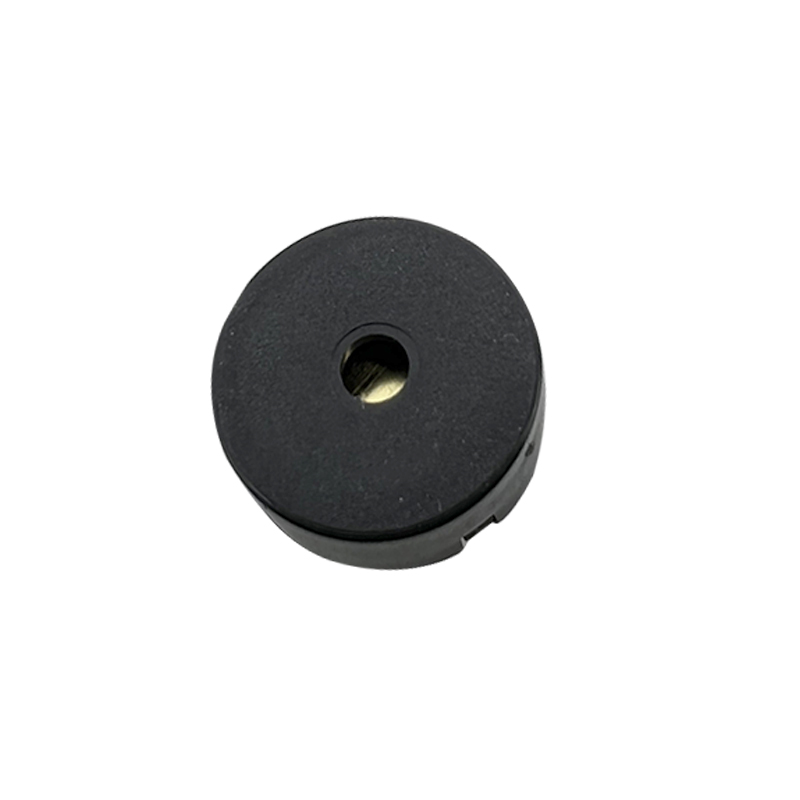

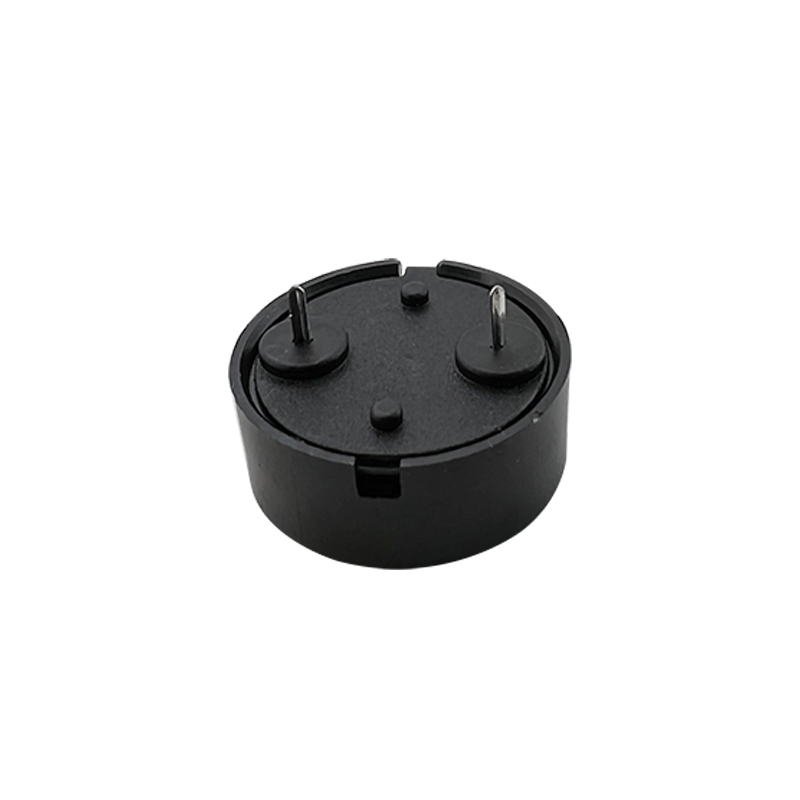

Externally driven piezo buzzer：RHTCYT-17x08
