Features
-Stable Acoustic Performance: Maintains consistent sound pressure levels and frequency response under various temperature and humidity conditions.
-Long Operating Life: With no mechanical moving parts, the buzzer provides exceptional durability and long service life.
-Easy PCB Mounting: Designed for direct soldering onto printed circuit boards, simplifying installation and maintenance.
-Wide Voltage Range: Compatible with multiple power supply levels, offering flexibility for different design requirements.
Applications
1.Consumer Electronics
2.Industrial Equipment
3.Security and Alarm Systems
4.Automotive Devices
Specifications
Piezo Buzzer PCB Mount
Size: Ø14*7.8*7.6mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYB-14x08-A 3...9VDC 4.0±0.5KHz 8mA 80dB 5VDC
RHTCYB-14x08-B 1.5...16VDC 4.0±0.5KHz 8mA 85dB 12VDC
Technical Documents
Please contact us for more information.

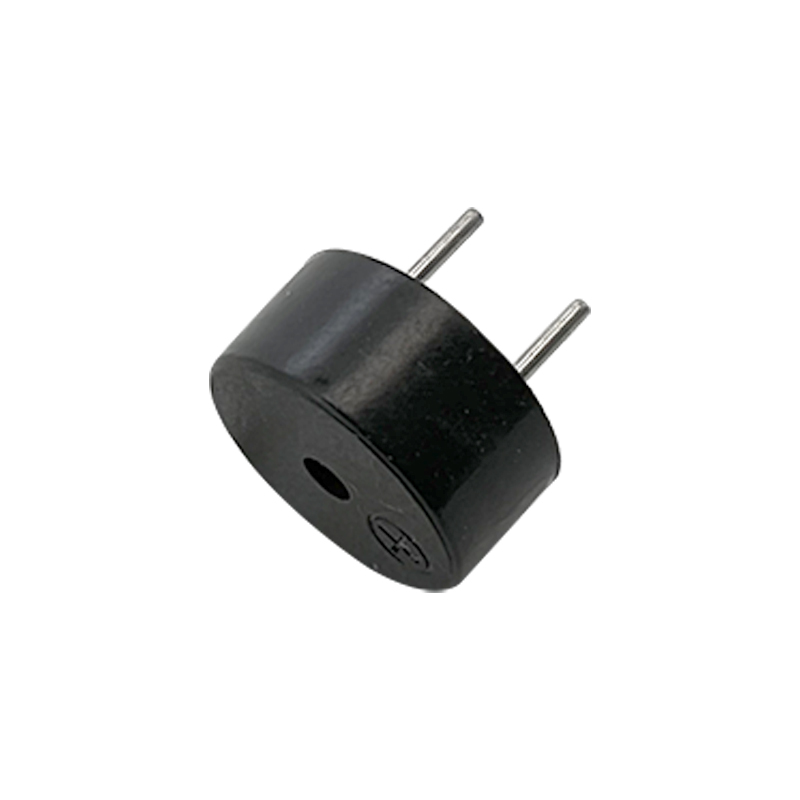

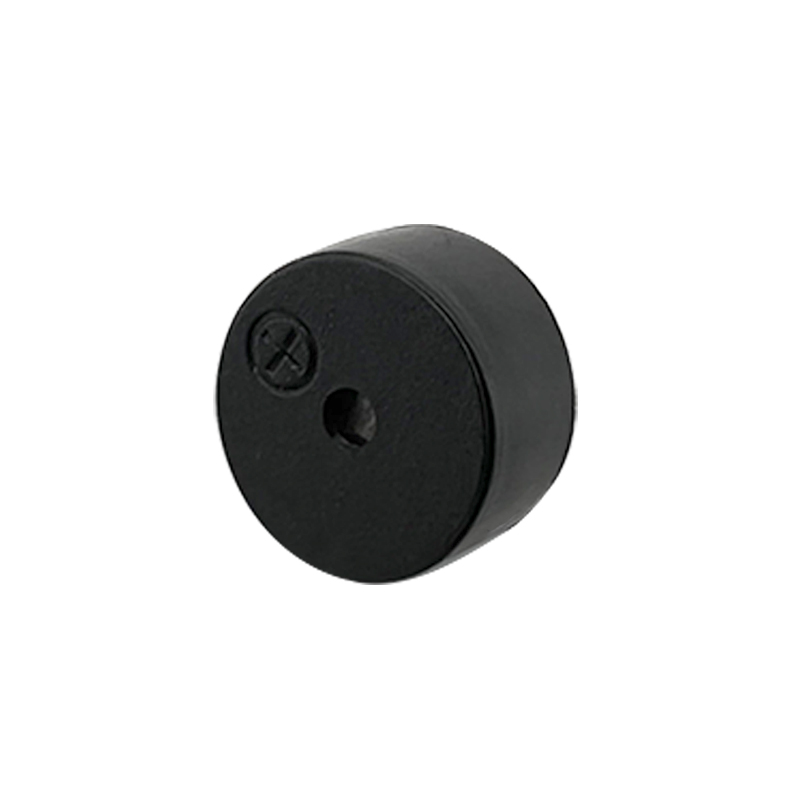

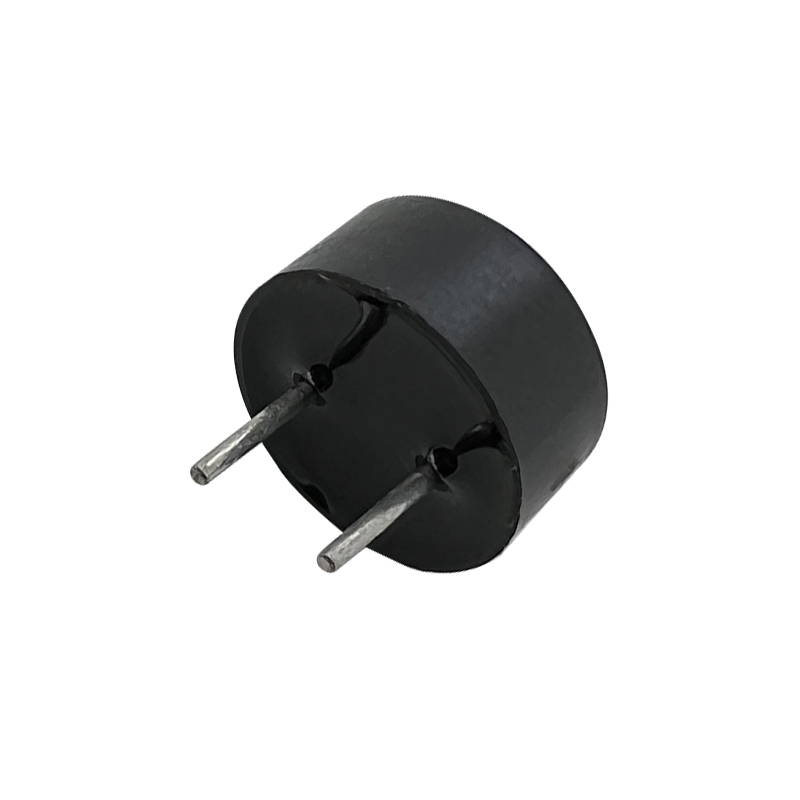

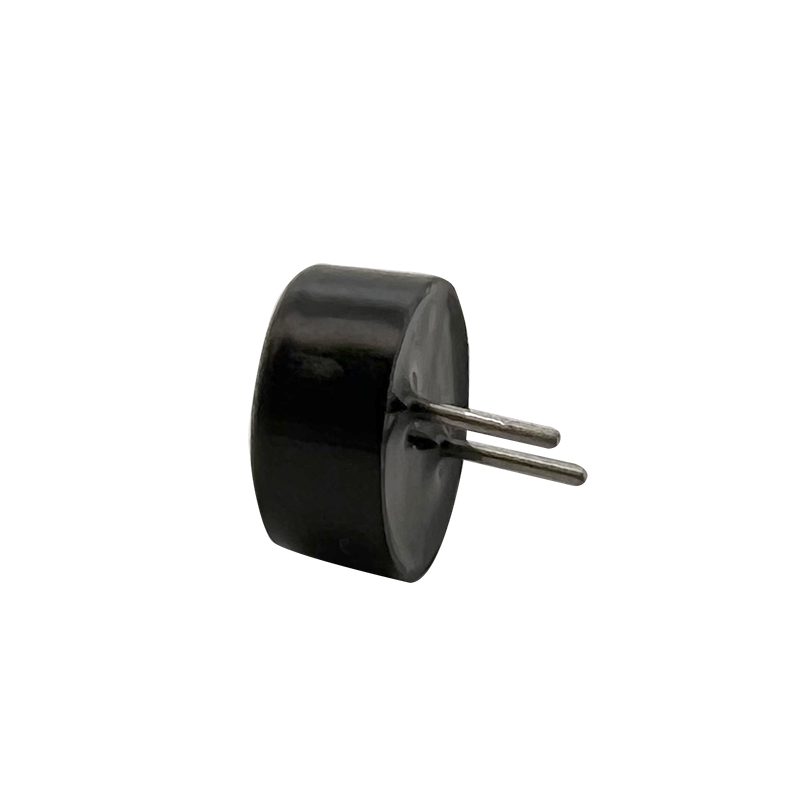

Internally driven piezo buzzer：RHTCYB-14x08
