DVI connectors & HDMI connectors

DVI Connectors and HDMI Connectors are engineered for dependable digital video and audio interfaces in modern electronic equipment. Their design considers high-frequency signal transmission, contact layout, shielding, impedance matching and mechanical retention. Optimized connector structures help maintain signal quality and reduce electromagnetic interference, while precise mating design supports reliable installation and repeated connection in displays, computers, industrial devices and multimedia systems.

Enlarge

Quick View

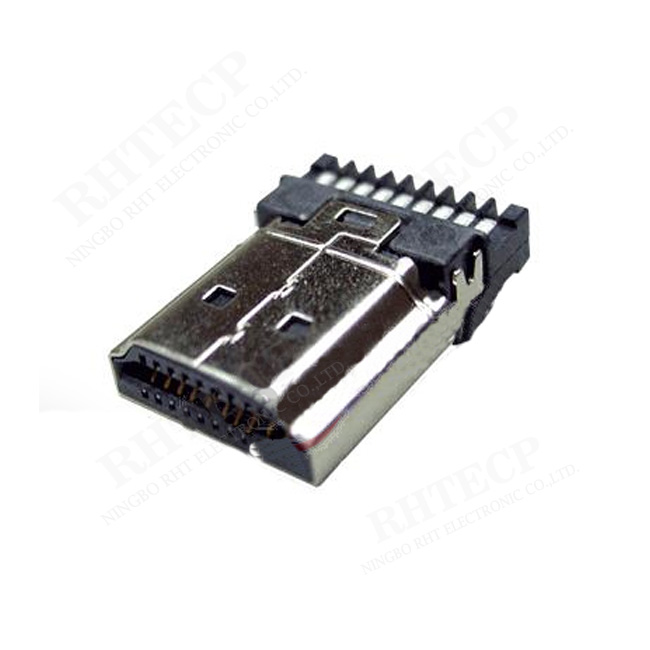

HDMI Connector Male:RHTAY81

Series Part No:RHTAY81

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features
-High-Definition Multimedia Interface: Supports seamless transmission of uncompressed high-definition digital video and multi-channel audio signals, ensuring superior picture and sound quality.
-Supports Advanced Resolutions: Compatible with resolutions up to 4K UHD (3840x2160) and Full HD 1080p, delivering crystal-clear images for home theaters, gaming, and professional displays.
-Robust and Durable Construction: Built with a strong metal shell and high-quality materials to withstand frequent plugging and unplugging without damage, ensuring long service life.
-Gold-Plated Contacts: Equipped with gold-plated pins that enhance conductivity and resist corrosion, minimizing signal loss and maintaining optimal performance over time.

Applications
1.Home Entertainment
2.Computers & Laptops
3.Gaming Consoles
4.Professional Audio-Visual Systems

Specifications
HDMI Connector With Male Solder 19P
How to order Example:
RHTAY81-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

Technical Documents
Please contact us for more information.

X

X
Enlarge

Quick View

HDMI Connector Female : RHTAY82

Series Part No:RHTAY82

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Multiple Versions Available: Supports HDMI 1.4, 2.0, and 2.1 standards to meet different application bandwidth and resolution needs.

-High Resolution Support: Capable of handling resolutions from standard HD up to 4K, 5K, and 8K at high refresh rates for ultra-sharp visuals.

-Compact Design: Small form factor allows installation in space-limited enclosures and slim electronic devices without sacrificing performance.

-Secure Connection: Precision-molded housing and tight mating force reduce the risk of accidental disconnection during use.

Applications

1.Blu-ray / DVD Players

2.Gaming Consoles

3.Desktop Computers

4.Laptops & Notebooks

Specifications

HDMI Connector With Female SMT 19P
How to order Example:
RHTAY82-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

HDMI Connector Female : RHTAY83

Series Part No:RHTAY83

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standardized Interface: Fully adheres to HDMI specifications, ensuring seamless compatibility with televisions, monitors, projectors, gaming consoles, computers, and other HDMI-enabled devices.

-Signal Support: Delivers uncompressed, high-definition digital video and multi-channel audio, guaranteeing crystal-clear images and immersive sound quality.

-Durability: Equipped with gold-plated contacts that resist oxidation and corrosion, extending connector lifespan and maintaining optimal signal integrity.

-Multiple Versions Available: Supports HDMI 1.4, 2.0, and 2.1 standards to meet different application bandwidth and resolution needs.

Applications

1.Televisions & Monitors

2.Home Theater Systems

3.Set-Top Boxes & Streaming Devices

4.Blu-ray / DVD Players

Specifications

HDMI Connector With Female Dip 180 19P
How to order Example:
RHTAY83-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

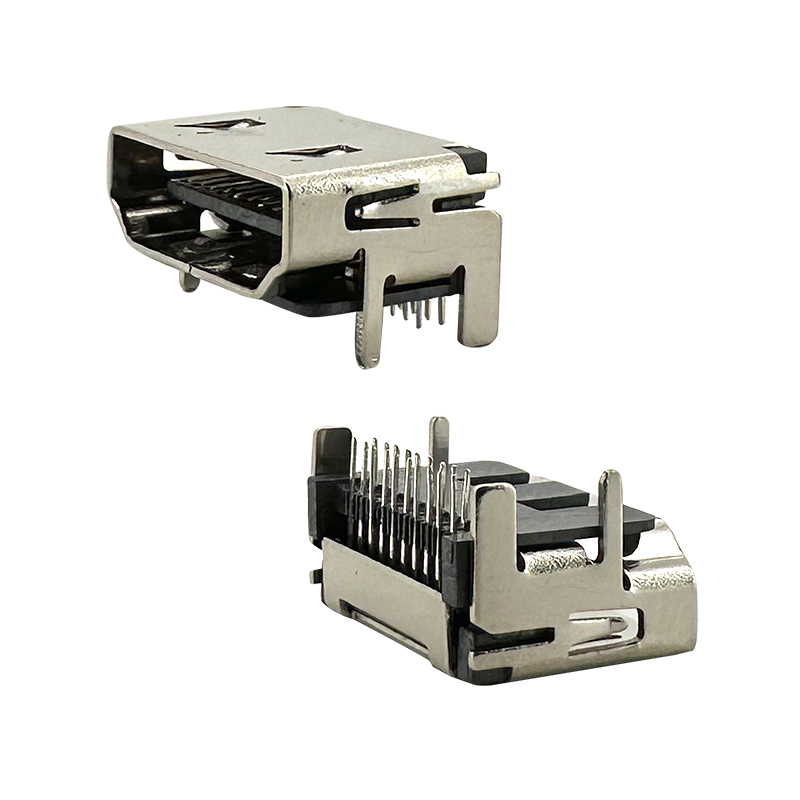

DC04S019JA1R600 HDMI Connector Female:RHTAYB85

Series Part No:RHTAYB85

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: HDMI (High-Definition Multimedia Interface)

-Standard HDMI Type A Interface: The most commonly used HDMI port type, compatible with a wide range of devices such as TVs, monitors, projectors, gaming consoles, and more.

-Gender: Female (socket)

-Pin Configuration: Typically includes 19 pins, arranged to transmit digital audio, video, and control signals.

-Termination Type: Designed to receive male HDMI connectors, providing a secure and stable connection.

Applications

1.Streaming Devices

2.Home Theater Systems

3.Medical and Healthcare Applications

4.Education and Training

5.Consumer Electronics

Specifications

HDMI Female Connector SMT 19P

How to order Example:

RHTAYB85-1-N-30

Shell Material: 1-Brass 2-SPCC

Shell Plate: N=Nickel G=Gold

Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"

Material:

Housing : LCP, UL 94V-0

Cover Terminal: Phosphor Bronze

Shell: Brass/SPCC

Electrical:

Current Rating : 0.5A

Dielectric Withstanding Voltage : 40V AC Per Minute

Insulation Resistance : 100MΩ MIN

Contact Resistance : 30MΩ MAX

Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

HDMI Connector Female :RHTAY86

Series Part No:RHTAY86

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-3D Video Ready: Fully compatible with stereoscopic 3D content for enhanced gaming and cinematic experiences.

-HDR Support: Handles High Dynamic Range formats, delivering richer colors, deeper blacks, and greater contrast.

-ARC & eARC Functionality: Enables Audio Return Channel and Enhanced Audio Return Channel for simplified home theater audio setups.

-Ethernet Over HDMI: Built-in HDMI Ethernet Channel (HEC) allows simultaneous network and video/audio transmission through a single cable.

Applications

1.AV Receivers & Soundbars

2.Digital Signage Displays

3.Broadcast Equipment

4.Cameras & Camcorders

Specifications

HDMI Connector With Female SMT 19P
How to order Example:
RHTAY86-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

HDMI Connector Female :RHTAY84

Series Part No:RHTAY84

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-ARC & eARC Functionality: Enables Audio Return Channel and Enhanced Audio Return Channel for simplified home theater audio setups.

-Ethernet Over HDMI: Built-in HDMI Ethernet Channel (HEC) allows simultaneous network and video/audio transmission through a single cable.

-Low Signal Loss: Optimized impedance control ensures minimal transmission loss and reduced jitter for high-speed data streams.

-Standardized Interface: Fully adheres to HDMI specifications, ensuring seamless compatibility with televisions, monitors, projectors, gaming consoles, computers, and other HDMI-enabled devices.

Applications

1.AV Receivers & Soundbars

2.Digital Signage Displays

3.Broadcast Equipment

4.Cameras & Camcorders

Specifications

DMI Connector With Female Dip 90 19P
How to order Example:
RHTAY84-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

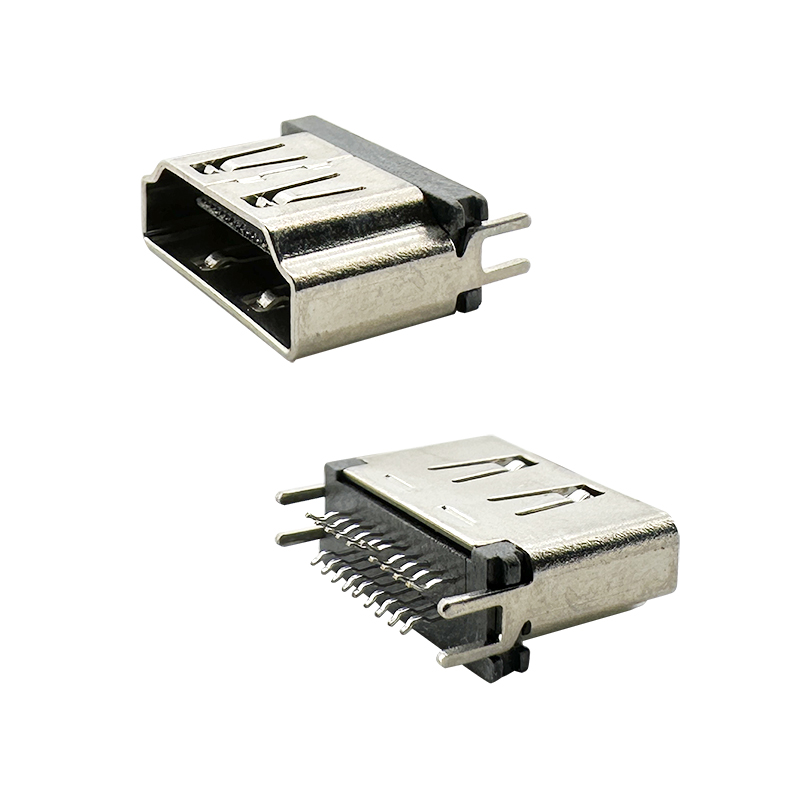

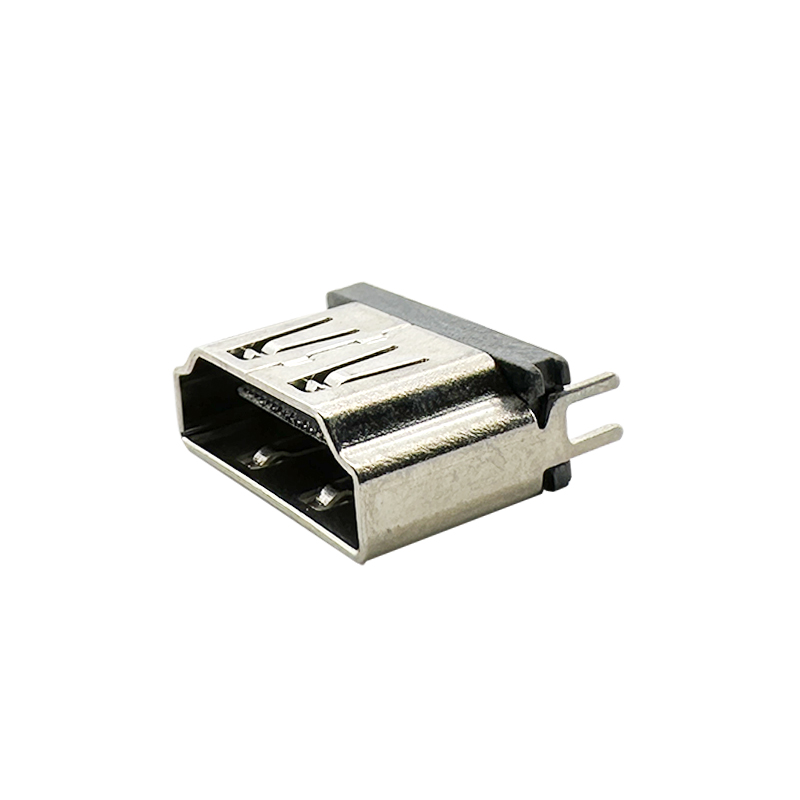

HDMI Female Connector :RHTAY87

Series Part No:RHTAY87

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Audio Support: Capable of transmitting multi-channel audio formats such as Dolby Digital, DTS, and uncompressed audio formats for immersive sound experiences.

-Video Support: Supports various video formats including Standard Definition (SD), High Definition (HD), and Ultra High Definition (UHD) formats with deep color and high refresh rates.

-Compatibility: Compatible with various HDMI standards (e.g., HDMI 1.4, HDMI 2.0, HDMI 2.1), ensuring interoperability with a wide range of HDMI-enabled devices.

-Data Transfer: Supports high-definition video resolutions up to 4K Ultra HD (2160p) and higher, delivering crystal-clear visuals.

Applications

1.Home Entertainment Systems

2.Gaming Consoles and PCs

3.Digital Signage and Display Systems

4.Professional Audio/Visual (AV) and Broadcasting

Specifications

HDMI Connector With Female Dip 180 19P

How to order Example:

RHTAY87-1-N-30

Shell Material: 1-Brass 2-SPCC

Shell Plate: N=Nickel G=Gold

Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"

Material:

Housing : LCP, UL 94V-0

Cover Terminal: Phosphor Bronze

Shell: Brass/SPCC

Electrical:

Current Rating : 0.5A

Dielectric Withstanding Voltage : 40V AC Per Minute

Insulation Resistance : 100MΩ MIN

Contact Resistance : 30MΩ MAX

Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

HDMI Connector Female :RHTAY90

Series Part No:RHTAY90

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Multiple Versions Available: Supports HDMI 1.4, 2.0, and 2.1 standards to meet different application bandwidth and resolution needs.

-High Resolution Support: Capable of handling resolutions from standard HD up to 4K, 5K, and 8K at high refresh rates for ultra-sharp visuals.

-Compact Design: Small form factor allows installation in space-limited enclosures and slim electronic devices without sacrificing performance.

-Secure Connection: Precision-molded housing and tight mating force reduce the risk of accidental disconnection during use.

Applications

1.VR / AR Devices

2.Conference Room Equipment

3.Education / Training Display Systems
4.Interactive Kiosks & Public Displays

Specifications

HDMI Connector With Female Dip 90 19P
How to order Example:
RHTAY90-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X

1 2 3 4 5 6 7 8 9 10 11 12 13 next page
