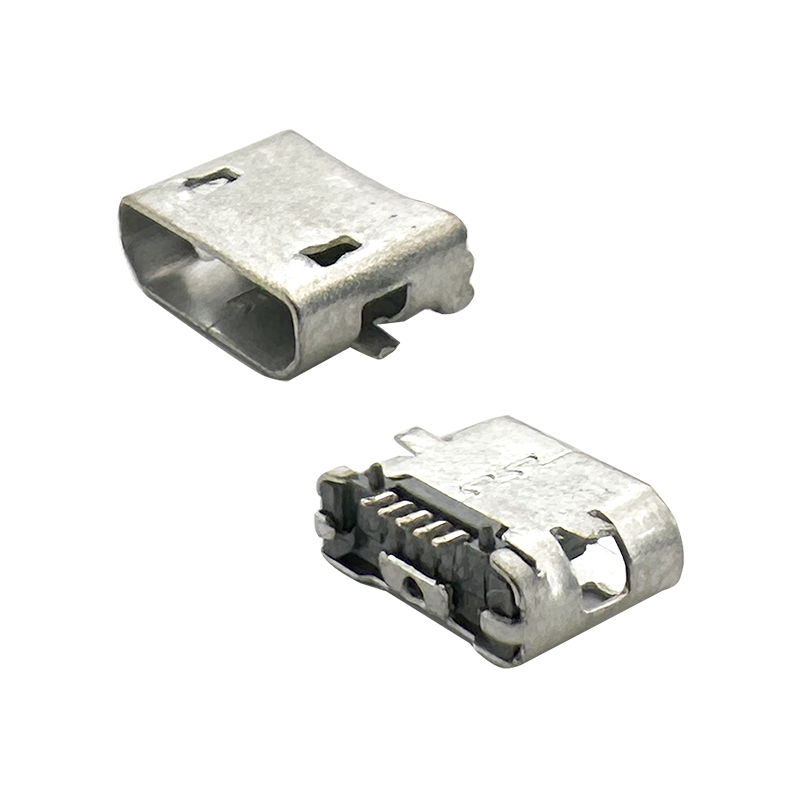

Features

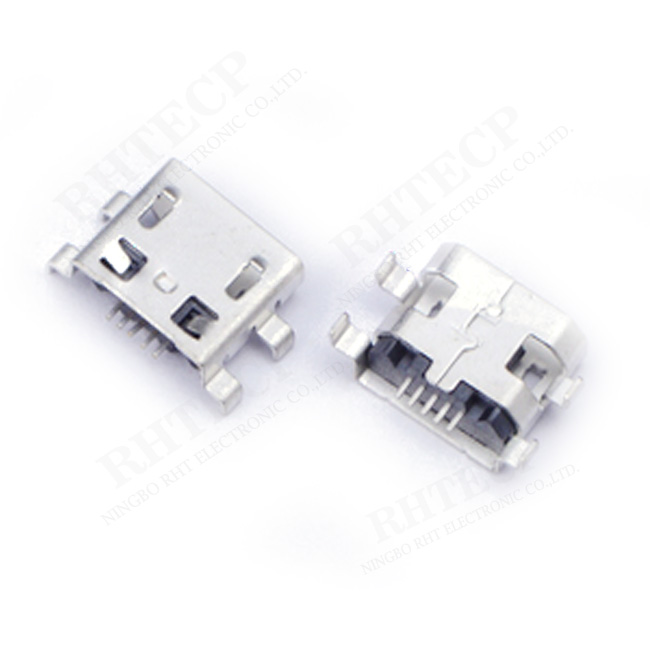

-Connector Type: Micro USB connectors are small, compact connectors widely used for data transfer and charging in various electronic devices.
-5POS: Refers to 5 positions or contacts within the connector, indicating the number of electrical connections available.
-SMD (Surface Mount Device): Designed for surface mounting directly onto a printed circuit board (PCB), offering a compact and low-profile solution.
-Design: Engineered for reliability and durability, featuring a robust housing and contacts that withstand frequent insertion and removal cycles.
Applications
1.Mobile Phones and Smartphones
2.Tablets and Portable Devices
3.Digital Cameras and Camcorders
4.Portable Audio Devices
Specifications
Material
Housing:Hing Temperature Thermoplastic, UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680.
Finish:
Contact:Piated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.
Technical Documents
Please contact us for more information.
