AC power socket connectors*AC power plug connectors

AC power socket connectors, AC power plug connectors, electrical connectors, power plug solutions, power socket solutions, reliable AC connectors, high-performance power connectors, durable power plugs, industrial power connectors, AC power connections, secure electrical connections, electrical outlet connectors, energy-efficient AC connectors, customizable AC power sockets, AC plug and socket connectors, quick-connect power connectors, heavy-duty AC power connectors, low-resistance power connectors, versatile AC power connectors, high-current power plugs, AC plug connectors for appliances.

Enlarge

Quick View

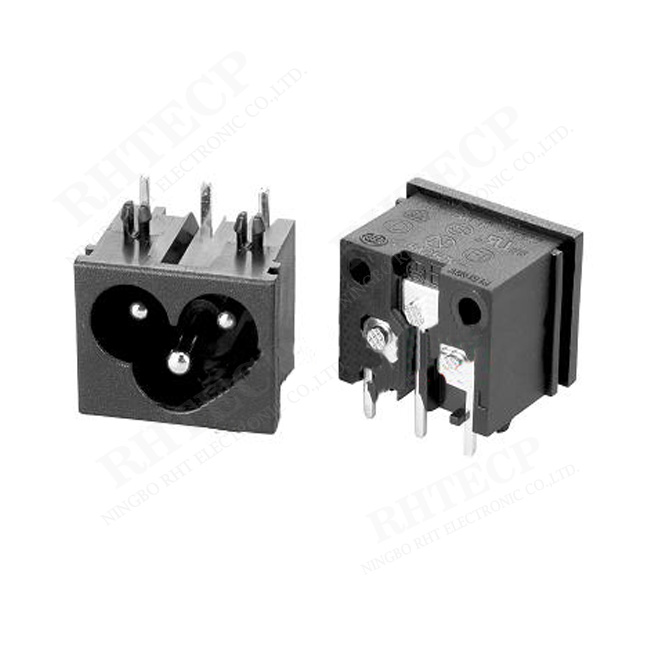

AC Power Inlet C6 Solder Type : RHTAYS-111-01

Series Part No:RHTAYS-111-01

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard IEC C6 Configuration: Complies with IEC standards, ensuring compatibility with a wide range of power cords and devices.
-Solder Mount Design: Provides secure and reliable electrical connections through soldering, ideal for stable PCB integration.
-Compact and Space-Saving: Small footprint suitable for devices with limited space, enabling efficient power inlet integration.
-High Current Rating: Supports typical AC power currents, ensuring safe and stable power delivery.

Applications

1.Consumer Electronics
2.Desktop Computers
3.Laptop Chargers
4.Telecommunication Equipment

Specifications

AC Power Socket C6 Solder Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

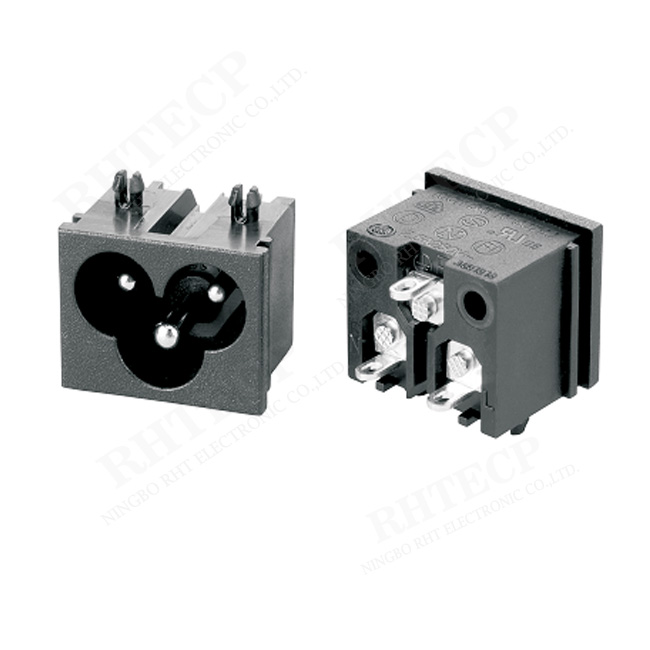

AC Power Inlet C6 PCB Type : RHTAYS-111-02

Series Part No:RHTAYS-111-02

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Space-Saving: Small footprint suitable for devices with limited space, enabling efficient power inlet integration.
-High Current Rating: Supports typical AC power currents, ensuring safe and stable power delivery.
-Durable Construction: Made with high-quality materials that resist wear, corrosion, and heat, extending the connector’s lifespan.
-Easy Installation: The solder-type terminals simplify assembly and provide strong mechanical retention on the PCB.

Applications

1.Laptop Chargers
2.Telecommunication Equipment
3.Medical Devices
4.Audio/Video Equipment

Specifications

AC Power Socket C6 PCB Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

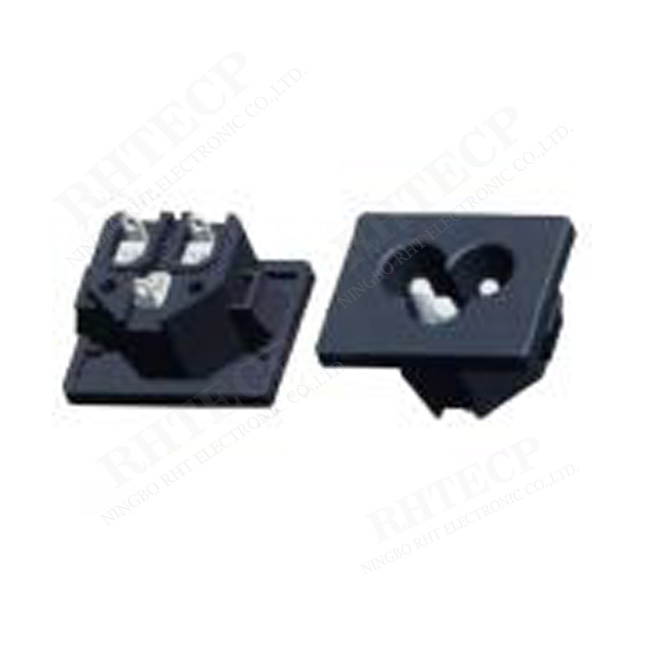

AC Power Inlet C6 Solder PCB Type : RHTAYS-111-03

Series Part No:RHTAYS-111-03

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-IEC C6 Standard Compliance: Meets international IEC standards for C6 power inlet connectors, ensuring broad compatibility with power cords and devices.
-Solder PCB Mount Design: Equipped with solder-type pins for strong and reliable electrical and mechanical connections on printed circuit boards.
-Compact Footprint: Designed for space-efficient PCB layouts, making it ideal for compact electronic devices and appliances.
-High Current Capacity: Supports typical AC power currents, delivering safe and stable power supply to connected equipment.

Applications

1.Home Appliances
2.Networking Devices
3.Power Supplies
4.LED Lighting Systems

Specifications

AC Power Socket C6 Solder PCB Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

AC Power Inlet C6 PCB Type : RHTAYS-111-04

Series Part No:RHTAYS-111-04

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Durable Design: Designed for secure and stable mounting on printed circuit boards (PCBs) with a compact footprint to save space.
-High Current Rating: Supports standard AC power input with a high current capacity, ensuring reliable power delivery.
-Easy PCB Integration: Suitable for direct soldering onto PCBs, simplifying the assembly process.
-Robust Construction: Made from high-quality materials to withstand mechanical stress and maintain long-term durability.

Applications

1.HVAC Systems
2.Audio Amplifiers
3.Battery Chargers
4.Printing Devices

Specifications

AC Power Socket C6 PCB Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

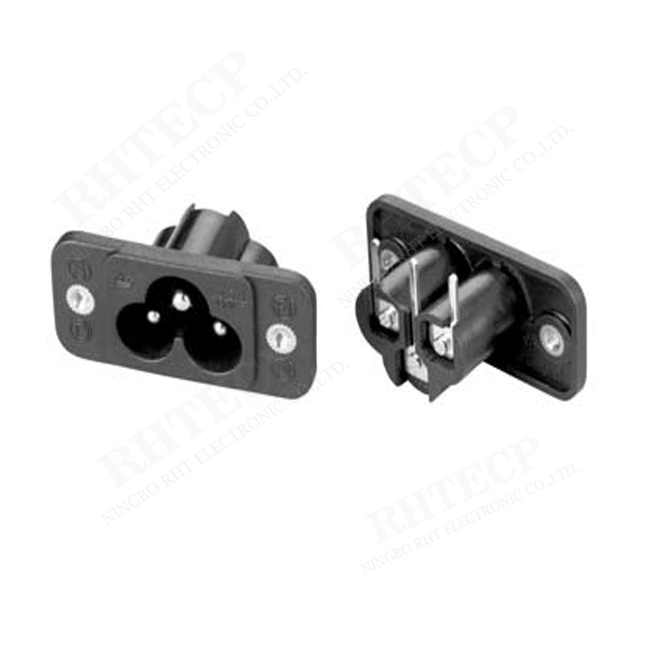

AC Power Inlet C6 Solder Type : RHTAYS-111-06

Series Part No:RHTAYS-111-06

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Solder Type Termination: Designed for direct soldering to the PCB, ensuring a secure and stable electrical connection.
-Compact IEC C6 Interface: Conforms to IEC 60320 C6 standards, offering compatibility with a wide range of AC power cords.
-Reliable Performance: Provides consistent AC power input for electronic devices, with minimal resistance and heat generation.
-Durable Construction: Built with flame-retardant and high-strength materials for enhanced safety and long service life.

Applications

1.Consumer Electronics
2.Computing Devices and Accessories
3.Power Supplies and Adapters
4.Audio and Video Equipment

Specifications

AC Power Socket C6 Solder Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

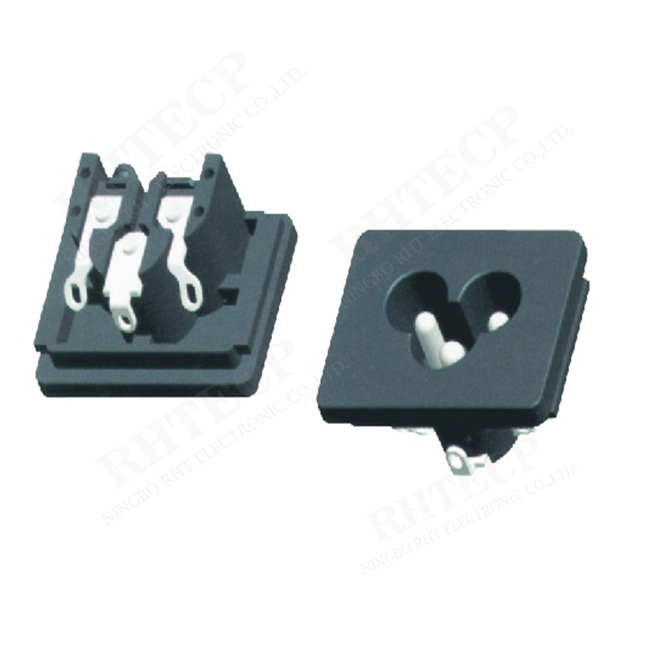

AC Power Inlet C6 PCB Type : RHTAYS-111-07

Series Part No:RHTAYS-111-07

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-PCB Mount Design: Engineered with through-hole or hybrid pins for direct mounting on printed circuit boards, providing stable and secure electrical connections.
-Compact Form Factor: Space-efficient design is ideal for small and portable electronic devices, supporting streamlined product layouts.
-Reliable Power Delivery: Supports AC power input typically up to 2.5A/250V, providing stable and safe current flow for a wide range of devices.
-Durable Construction: Made from flame-retardant thermoplastic and corrosion-resistant contacts for enhanced durability and safety.

Applications

1.Home Appliances
2.Networking Devices
3.Power Supplies
4.LED Lighting Systems

Specifications

AC Power Socket C6 PCB Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

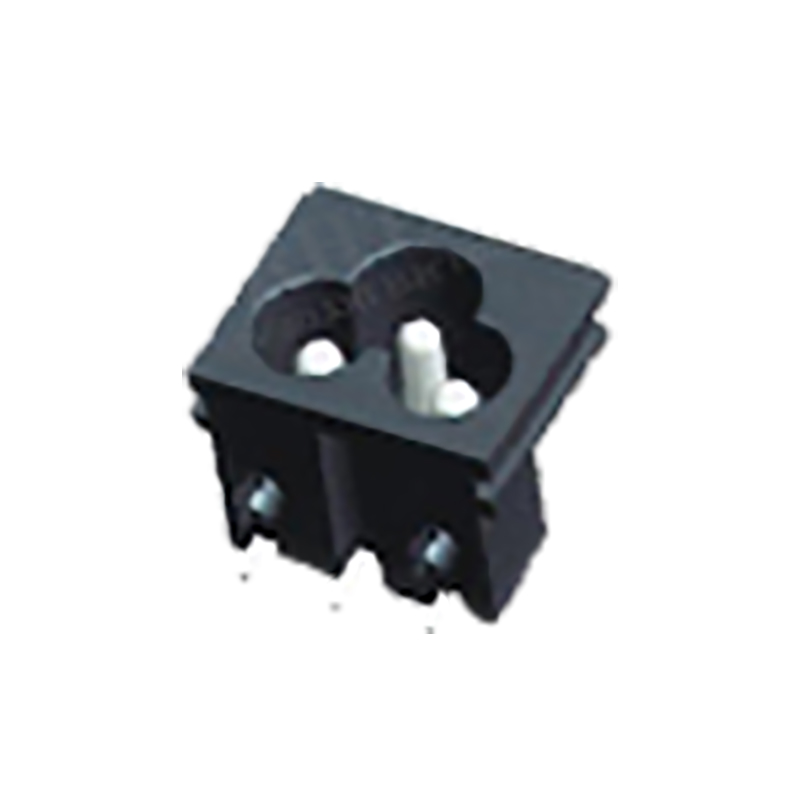

AC Power Inlet C6 Solder Type : RHTAYS-111-08

Series Part No:RHTAYS-111-08

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact IEC C6 Design:The C6 connector, also known as the "cloverleaf" or "Mickey Mouse" inlet, offers a space-saving design ideal for compact electronics and portable devices.
-Solder Type Termination:Provides secure and reliable connections through soldering, ensuring stable electrical performance and minimizing contact resistance.
-Rated for Global Standards:Typically supports voltage ratings up to 250V and current ratings up to 2.5A, meeting international safety and performance standards (such as UL, VDE, and CCC).
-Flame-Retardant Housing:Constructed with high-quality, flame-retardant thermoplastic materials (often UL94V-0 rated) for enhanced safety in high-temperature environments.

Applications

1.Industrial Machinery
2.Test and Measurement Instruments

3.Home Appliances

4.Networking Devices

Specifications

AC Power Socket C6 Solder Type
Electrical Characteristics:
Standard: IEC 60320 C6
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

AC Power Inlet C8 Solder Type : RHTAYS-222-1

Series Part No:RHTAYS-222-1

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact IEC C8 Design:The C8 inlet, often called the “figure-8” connector, features a small and slim profile, making it ideal for lightweight and portable electronic devices.
-Solder Type Termination:Provides secure, long-lasting electrical connections through soldering, ensuring minimal contact resistance and stable performance.
-Rated for Standard Voltage and Current:Supports typical ratings up to 250V and 2.5A, conforming to international safety standards such as UL and IEC certifications.
-Durable Flame-Retardant Housing：Made from high-quality, flame-retardant plastic (usually UL94V-0 rated), ensuring safety and reliability under normal operating conditions.

Applications

1.Power Supplies
2.LED Lighting Systems

3.Office Equipment

4.Laboratory Equipment

Specifications

AC Power Socket Connector C8 Solder Type
Electrical Characteristics:
Standard: IEC 60320 C8
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

1 2 3 4 5 6 7 8 9 10 11 12 13 14 next page
