IEEE 1394 connectors

IEEE 1394 connectors, FireWire connectors, high-speed data transfer, digital video connectors, audio-visual connections, 1394b, 1394a, S400, S800, 6-pin FireWire connector, 4-pin FireWire connector, 9-pin FireWire connector, FireWire cable, video editing, external storage, digital cameras, peripheral devices, plug-and-play, hot-swapping, multimedia devices, data transfer speed, FireWire 800, IEEE 1394 standard, FireWire interface, technology, connectivity solutions

Enlarge

Quick View

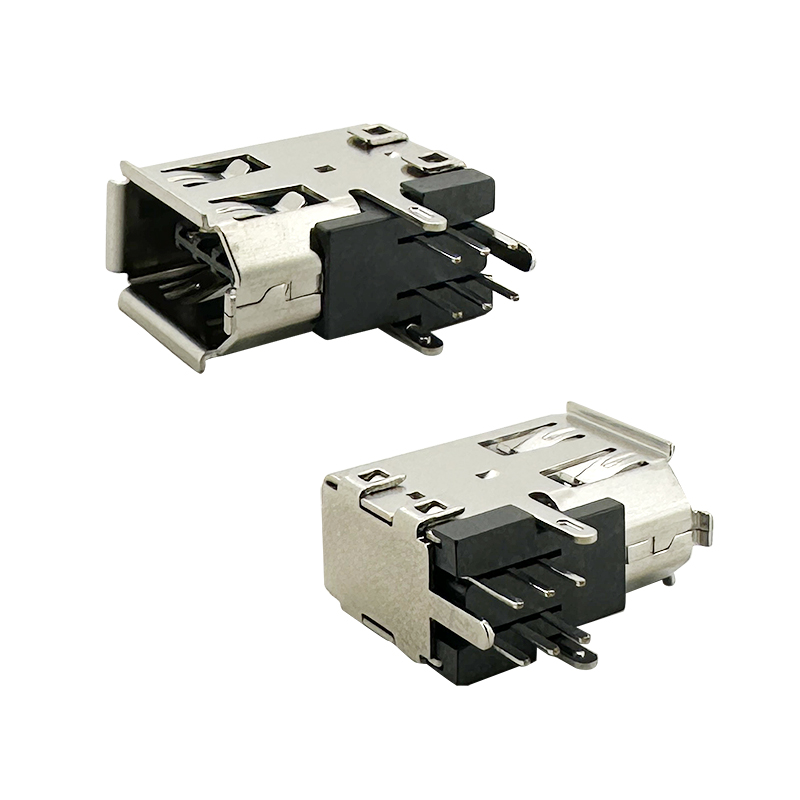

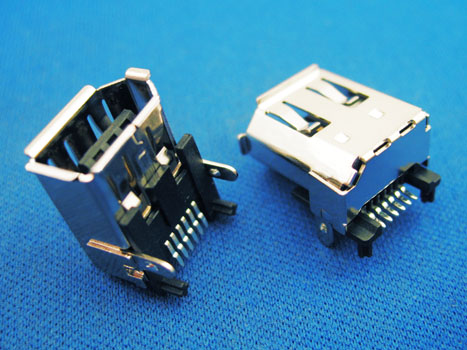

IEEE 1394 Connector 6P female pcb dip 90 :RHTAY394-6FA

Series Part No:RHTAY394-6FA

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: IEEE 1394 (FireWire/i.LINK)

-Pin Configuration: 6 pins

-Gender: Female

-Mounting Type: PCB (Printed Circuit Board) DIP (Dual In-line Package)

Applications

1.Medical Imaging Devices

2.Industrial Automation and Robotics

3.Aerospace and Defense

4.Computer Peripherals

Specifications

How to order Example:

RHTAY394-6FA-B

W=White B=Black

Material:

Housing: 30% Glass filled PBT UL94V-0

Contacts: Brass

Shell:Copper Alloy

Pin Plated: Gold 3u" over 50u" nickel

Electrical:

Current Rating: 1.5 AMP

Insulator Resistance: 500M Ohm min

Dielectric Withstanding Voltage:500 VAC / 1Minute

Contact Resistance: 30m Ohm max.

Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

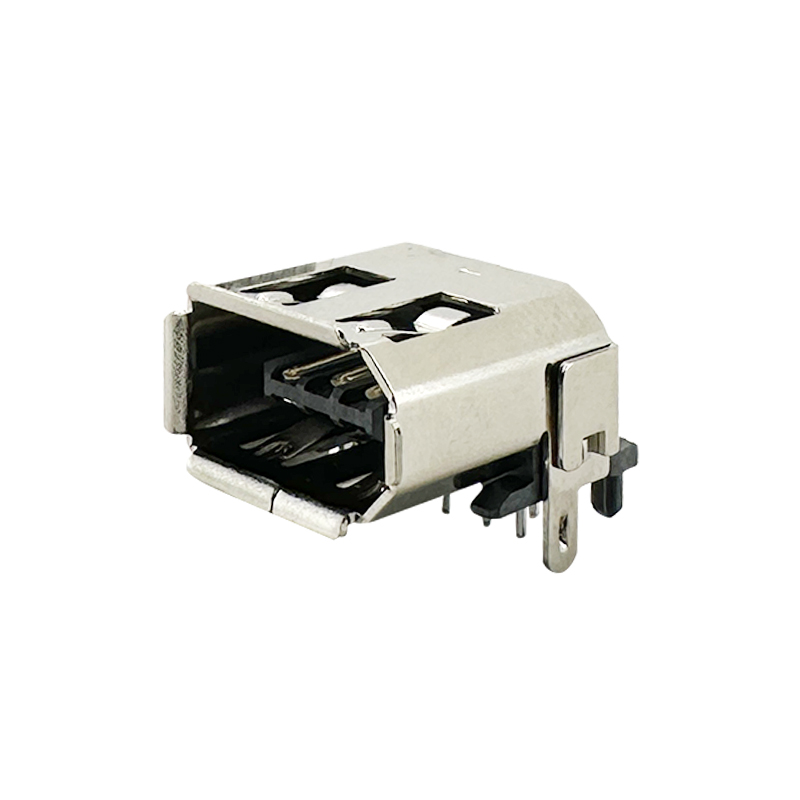

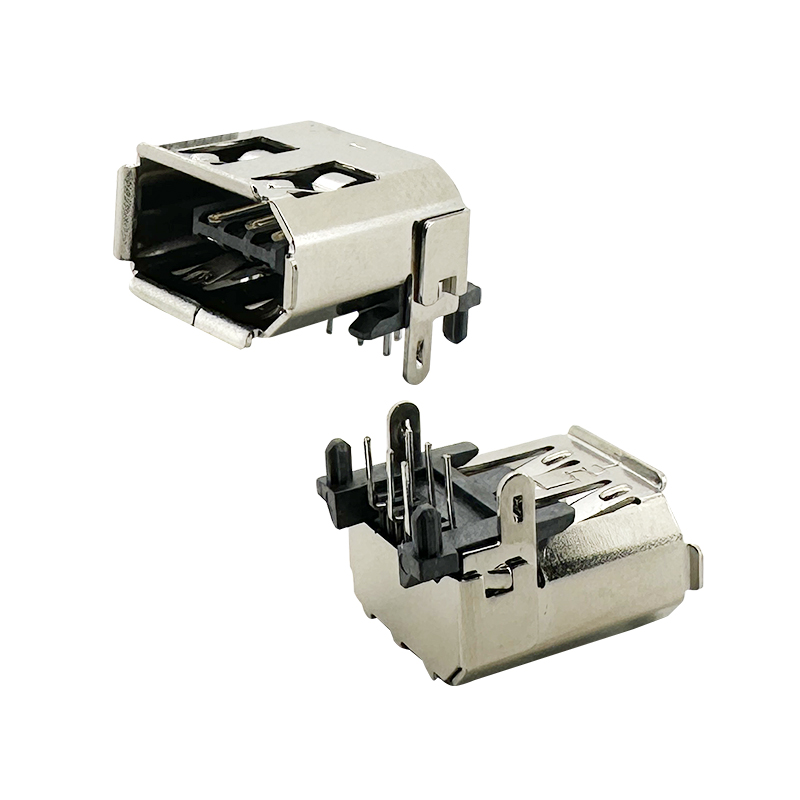

IEEE 1394 Connector 6P female pcb dip 90 :RHTAY394-6FC

Series Part No:RHTAY394-6FC

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Orientation: 90 degrees (Right Angle)

-Termination: Designed for soldering directly onto PCBs, providing a secure and permanent electrical connection.

-Compatibility: Compliant with IEEE 1394 standards, supporting data rates up to 400 Mbps (IEEE 1394a) or even higher speeds (IEEE 1394b) for efficient data transmission.

-Design: Compact and space-efficient design suitable for applications where PCB space is limited or where a right-angle connector orientation is required for efficient PCB layout.

Applications

1.Digital Audio/Video Equipment

2.External Storage Devices

3.Computer Peripherals

4.Consumer Electronics

Specifications

How to order Example:

RHTAY394-6FC-B

W=White B=Black

Material:

Housing: 30% Glass filled PBT UL94V-0

Contacts: Brass

Shell:Copper Alloy

Pin Plated: Gold 3u" over 50u" nickel

Electrical:

Current Rating: 1.5 AMP

Insulator Resistance: 500M Ohm min

Dielectric Withstanding Voltage:500 VAC / 1Minute

Contact Resistance: 30m Ohm max.

Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

IEEE 1394 Connector 6P female SMD : RHTAY394-6FB

Series Part No:RHTAY394-6FB

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-Speed Data Transmission：Complies with IEEE 1394 (FireWire) standards to support fast and stable data transfer, ideal for multimedia and industrial devices.
-6-Pin Female Configuration：Offers a standardized 6-pin interface for secure connections and compatibility with common FireWire cables.
-Surface Mount Design (SMD)：Enables efficient PCB assembly with space-saving installation, suitable for high-density electronic layouts.
-Durable and Compact Structure：Built with heat-resistant materials and gold-plated contacts for long service life, while maintaining a compact and lightweight profile.

Applications

1.Consumer Electronics
2.Industrial Automation
3.Audio and Video Equipment
4.Computer Peripherals

Specifications

How to order Example:
RHTAY394-6FB-B
W=White B=Black
Material:
Housing: LCP UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

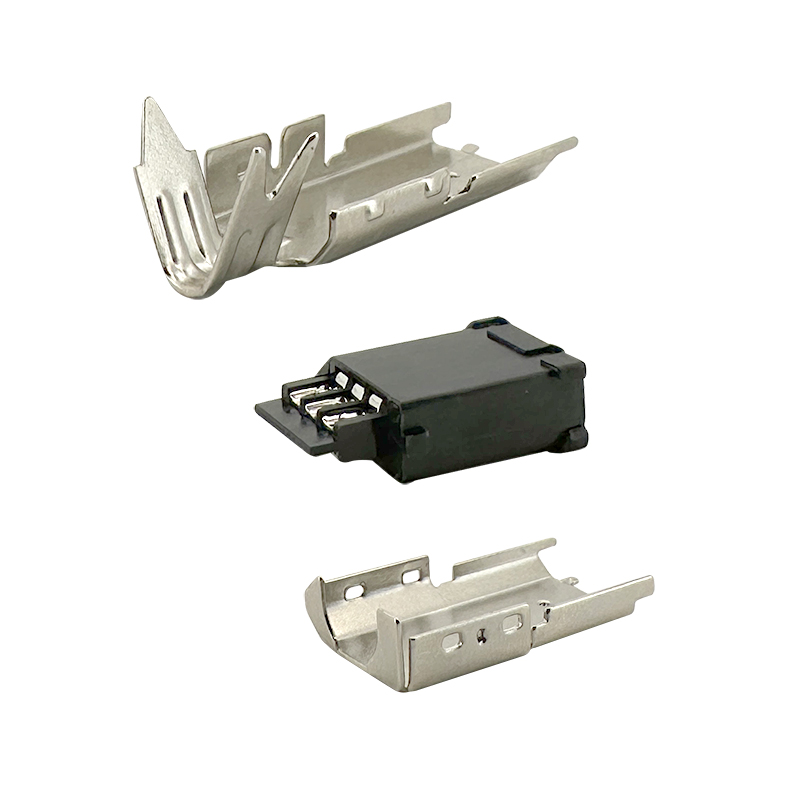

IEEE 1394 Connector Plug 6P :RHTAY394-6FD

Series Part No:RHTAY394-6FD

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Data Transfer Speed: Supports data rates up to 400 Mbps (IEEE 394a) or up to 800 Mbps (IEEE 394b), depending on the version.

-Compatibility: Compatible with IEEE 1394 standards, ensuring interoperability between devices from different manufacturers.

-Reliability: Provides reliable data transmission with minimal signal loss, crucial for real-time data streaming and multimedia applications.

-Durability: Constructed from durable materials to withstand frequent plugging and unplugging cycles.

Applications

1.Digital Audio/Video Production

2.Computer Peripherals

3.Consumer Electronics

4.Medical Imaging and Healthcare

Specifications

How to order Example:

RHTAY394-6FD-B

W=White B=Black

Material:

Housing: 30% Glass filled PBT UL94V-0

Contacts: Brass

Shell:Copper Alloy

Pin Plated: Gold 3u" over 50u" nickel

Electrical:

Current Rating: 1.5 AMP

Insulator Resistance: 500M Ohm min

Dielectric Withstanding Voltage:500 VAC / 1Minute

Contact Resistance: 30m Ohm max.

Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

IEEE 1394 Connector 4P SMD : RHTAY394-4FB

Series Part No:RHTAY394-4FB

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Space-Saving Design: The 4-pin SMD (Surface Mount Device) IEEE 1394 connector offers a compact footprint, ideal for devices with limited PCB space while maintaining reliable data transmission.
-High-Speed Data Transfer: Supports IEEE 1394 standard, enabling high-speed data communication up to 400 Mbps (FireWire 400), suitable for multimedia devices, camcorders, and external storage.
-Surface Mount Technology: Designed for automated PCB assembly, the SMD package ensures strong mechanical bonding and excellent electrical performance with minimal manual intervention.
-Robust Connection: Provides secure and stable mating with IEEE 1394 cables, minimizing signal loss and electromagnetic interference (EMI) during data transmission.

Applications

1.Consumer Electronics
2.Digital Camcorders
3.External Hard Drives and Storage Devices
4.Personal Computers and Laptops

Specifications

How to order Example:
RHTAY394-4FB-B
W=White B=Black
Material:
Housing: LCP UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

IEEE 1394 Connector 4P PCB Dip 90 : RHTAY394-4FC

Series Part No:RHTAY394-4FC

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Right-Angle 90° DIP Design: The dip (dual in-line package) configuration with a 90-degree orientation allows for convenient PCB layout and efficient use of board space, ideal for vertical mounting.
-4-Pin IEEE 1394 Interface: Provides a standard 4-pin connection compliant with IEEE 1394 (FireWire) protocols, enabling reliable high-speed data transmission.
-Robust Mechanical Stability: The dip pins offer strong solder joint connections on the PCB, ensuring durability and secure mounting even in environments with vibration.
-High-Speed Data Transfer: Supports data rates up to 400 Mbps (FireWire 400 standard), suitable for multimedia applications like video cameras, external drives, and other consumer electronics

Applications

1.Audio/Video Equipment
2.Professional Video Editing Systems
3.Gaming Consoles and Accessories
4.Industrial Automation Equipment

Specifications

How to order Example:
RHTAY394-4FC-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

IEEE 1394 Connector 4P PCB Dip 180 :RHTAY394-4FD

Series Part No:RHTAY394-4FD

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Robust Mechanical Strength: DIP pins ensure secure solder connections, enhancing mechanical stability and reducing the risk of connection failure under vibration or stress.
-High-Speed Data Support: Supports data transfer rates up to 400 Mbps, suitable for external storage devices, digital camcorders, and other FireWire-enabled equipment.
-Low Contact Resistance: Precision-engineered contacts minimize resistance and signal degradation, ensuring efficient and reliable data communication.
-Corrosion-Resistant Materials: Constructed with high-quality metal alloys and plating to resist oxidation and wear, extending connector life.

Applications

1.Medical Imaging Devices
2.Multimedia Workstations
3.Data Acquisition Systems
4.Networking Equipment

Specifications

How to order Example:
RHTAY394-4FD-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

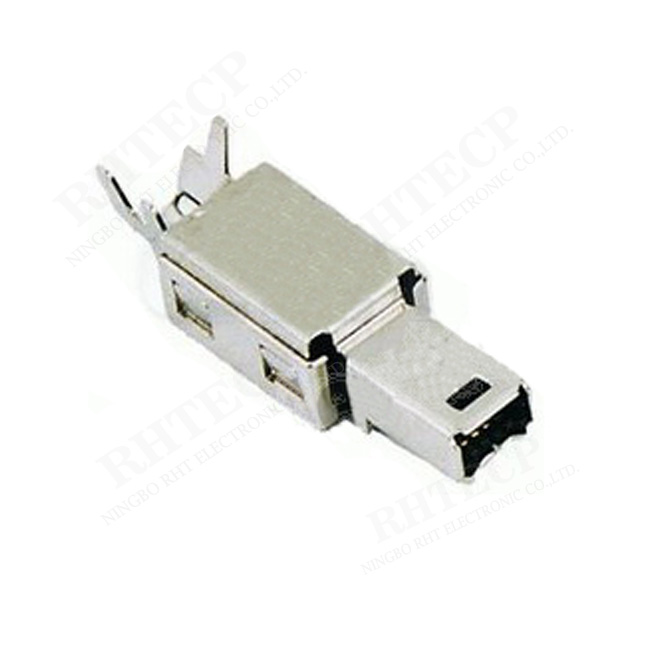

IEEE 1394 Connector 4P Plug : RHTAY394-4FE

Series Part No:RHTAY394-4FE

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard 4-Pin Design: Complies with IEEE 1394 (FireWire) specifications, providing a reliable 4-pin interface for data and power transmission.
-High-Speed Data Transfer: Supports data rates up to 400 Mbps, ideal for multimedia devices, external storage, and professional video equipment.
-Robust Plug Construction: Built with durable materials to ensure long-lasting performance and resistance to wear from repeated connect/disconnect cycles.
-Compact and Lightweight: Small form factor makes it suitable for space-constrained applications without compromising connectivity quality.

Applications

1.Automotive Infotainment Systems
2.Broadcasting Equipment
3.Robotics and Control Systems
4.High-Speed Data Transfer Interfaces

Specifications

How to order Example:
RHTAY394-4FE-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC

Technical Documents

Please contact us for more information.

X

X
