USB 2.0 connectors

"USB 2.0 connectors, USB connectors, high-speed data transfer, USB Type-A, USB Type-B, mini-USB, micro-USB, USB 2.0 cable, plug-and-play, external devices, peripherals, USB ports, USB 2.0 interface, data transfer rate, universal serial bus, USB compatibility, multimedia devices, external storage, printers, scanners, digital cameras, mobile devices, charging, USB hub, USB 2.0 specification, backward compatibility, portable devices, universal connectivity.

Enlarge

Quick View

14P USB Type C Female +USB2.0 female : RHTAY460

Series Part No:RHTAY460

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Dual-Port Design: Combines USB Type-C and USB 2.0 female ports to support multiple device connections in one compact unit.
-High-Speed Data Transfer: Supports USB 3.1 speeds on the Type-C port and USB 2.0 standards on the second port for versatile performance.
-Compact 14-Pin Layout: Optimized for space-saving PCB designs, ideal for slim and portable electronic devices.
-Durable Construction: Made with corrosion-resistant plating and quality materials to ensure long-lasting reliability and stable electrical contacts.

Applications

1.Consumer Electronics
2.Laptops and Notebooks
3.Tablets and Mobile Devices
4.Docking Stations and Hubs

Specifications

14P USB Type C Female +USB2.0 female
Electrical
Current Rating: 1.5A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

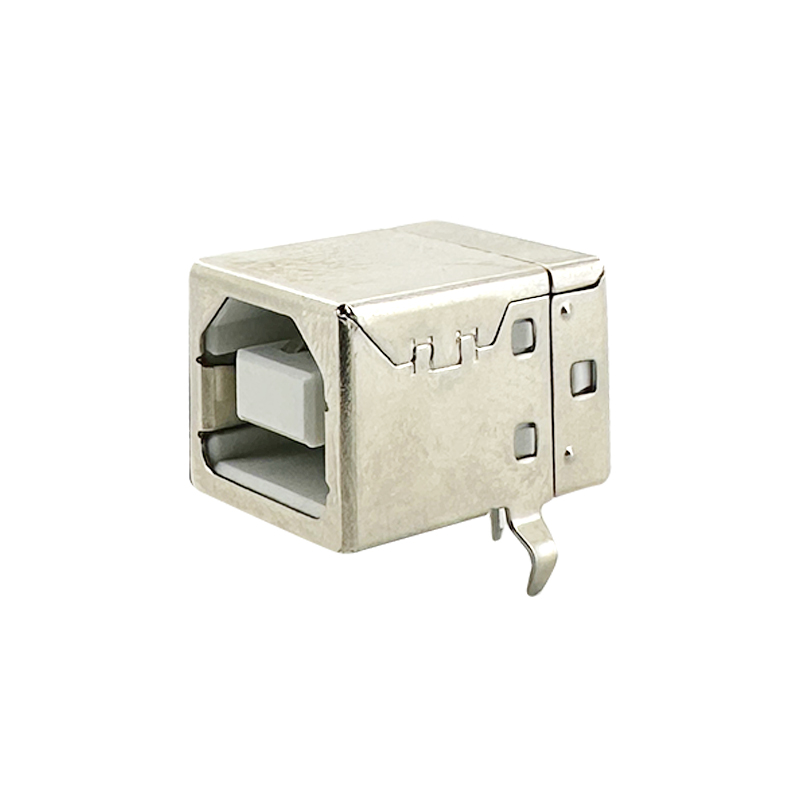

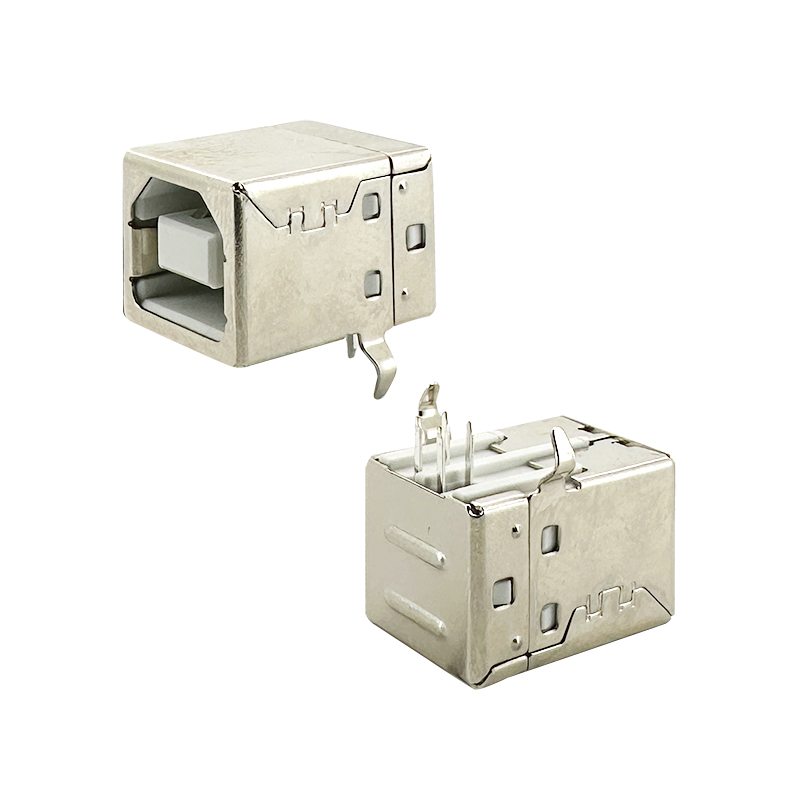

B Female Dip 90 USB Connector :RHTAY51

Series Part No:RHTAY51

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring longevity and reliability in various applications.

-Shielding: Often includes shielding to minimize electromagnetic interference (EMI), ensuring signal integrity during data transmission.

-Mounting Type: Designed for through-hole mounting (DIP), providing mechanical stability and secure attachment to the PCB during soldering.

-Compatibility: Compatible with various electronic devices and applications that require USB connectivity, such as printers, scanners, external storage devices, and other peripherals.

Applications

1.Networking Equipment

2.Industrial Automation

3.Medical Devices

4.Consumer Electronics

Specifications

aterial：

Insulator:PBT UL94V-0,Black/White.

Contacts:Brass C2680.

Shell:C2680/SPCC.

Finish:

Contact:Contact area gold plated 1U ";

Bright tin plating 40u" Min in welding area.

Shell:Nickel plating 40u" Min.

Electrical:

Contact Resistance:30mΩ Max.

Insulation Resistance:1000MΩ Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

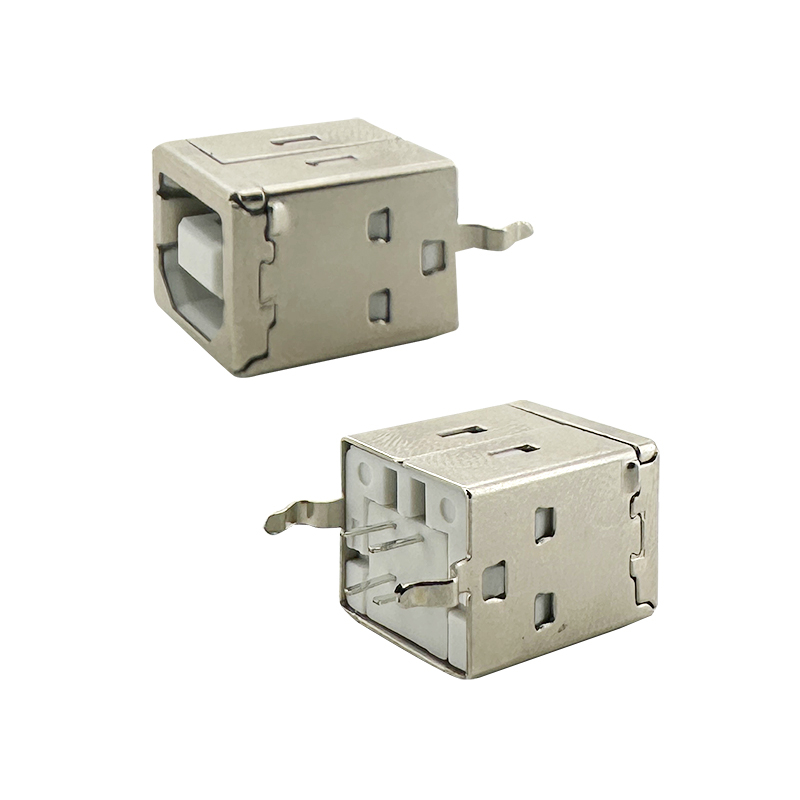

B Female Dip 180 USB Connector:RHTAY52

Series Part No:RHTAY52

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring longevity and reliability in various applications.

-Shielding: Often includes shielding to minimize electromagnetic interference (EMI), ensuring signal integrity during data transmission.

-Mounting Type: Designed for through-hole mounting (DIP), providing mechanical stability and secure attachment to the PCB during soldering.

-Compatibility: Compatible with various electronic devices and applications that require USB connectivity, such as printers, scanners, external storage devices, and other peripherals.

Applications

1.Networking Equipment

2.Industrial Automation

3.Medical Devices:

4.Consumer Electronics

Specifications

Material：

Insulator:PBT UL94V-0,Black/White.

Contacts:Brass C2680.

Shell:C2680/SPCC.

Finish:

Contact:Contact area gold plated 1U ";

Bright tin plating 100-200u" Min in welding area.

Shell:Nickel plating 50-80u" Min.

Electrical:

Contact Resistance:30mΩ Max.

Insulation Resistance:1000MΩ Min.

Dielectric Withstanding Voltage:5

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

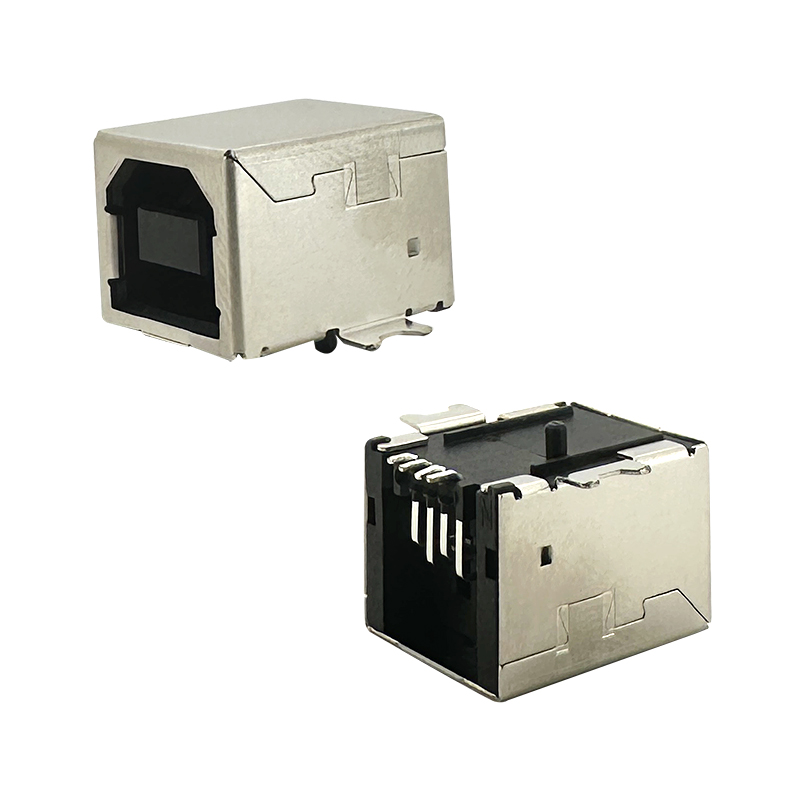

B Female SMD USB Connector:RHTAY56

Series Part No:RHTAY56

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Standard Compatibility: Supports USB standards such as USB 2.0 or USB 3.0, depending on the specific model. USB 3.0 offers higher data transfer rates (up to 5 Gbps) compared to USB 2.0.

-Connector Type: B female connectors are typically used as upstream connectors, found on devices such as printers, scanners, and other peripherals that connect to a computer or host device.

-Surface Mount Design: Designed for direct soldering onto the surface of a printed circuit board (PCB), which is space-efficient and suitable for modern compact electronic devices.

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring longevity and reliability in various applications.

Applications

1.Industrial Automation

2.Medical Devices

3.Automotive Electronics

4.Point-of-Sale (POS) Systems

Specifications

Material：

Insulator:LCP or Nylon .UL94V-0

Contacts:Phosphor Bronze,(T=0.25mm).

Shell:Cold Roller Steel or brass,Nikel Plated.

Electrical:

Contact Current Rating :1Amp.30V AC

Dielectric Withstanding Volt:AC 500V/Min.R.M.S.

Insulation Resistance:1000MΩ Min. at 250V DC

Contact Resistance:30mΩ Max.

Operating Temperature:-55°C to +85°C

Mechanical Characteristics:

Mating Force:3.57Kg.Max.

Unmating Force:1.02Kg.Min..2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

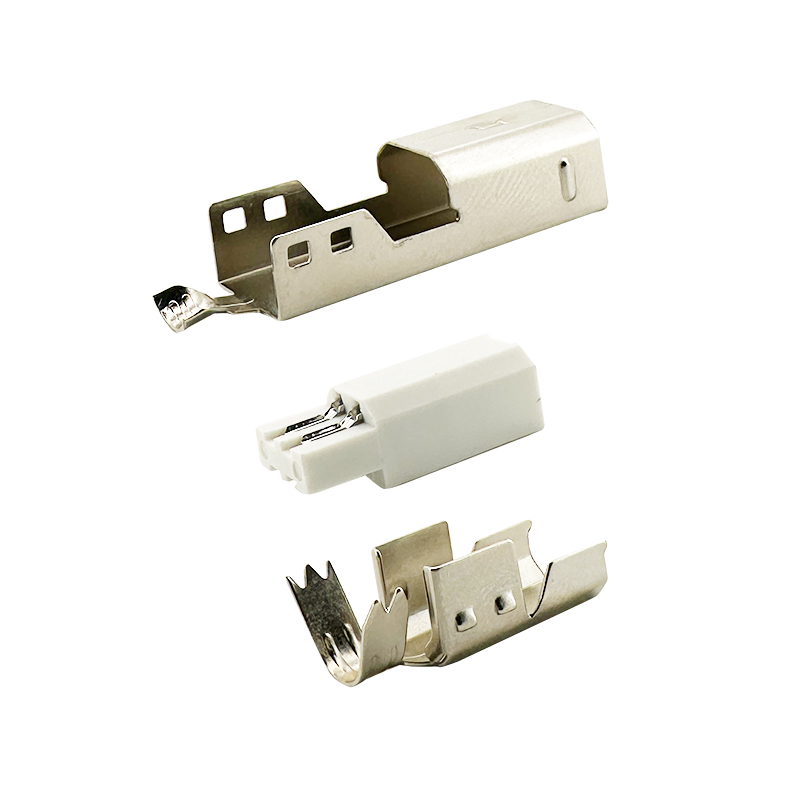

B Male Solder USB Connector:RHTAYA84

Series Part No:RHTAYA84

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Backward Compatibility: While primarily used for USB 3.0 devices, USB B connectors are backward compatible with USB 2.0 and USB 1.1 standards, allowing them to work with older USB devices at lower speeds.

-Mechanical Durability: Designed to withstand frequent insertion and removal cycles, ensuring longevity and reliability.

-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during high-speed data transmission.

-Mounting Type: Designed for through-hole mounting (solder type), providing mechanical stability and secure attachment to the PCB during assembly.

Applications

1.External Hard Drives and SSDs

2.Printers and Scanners

3.Digital Cameras and Camcorders

4.Audio Interfaces and MIDI Devices

Specifications

Material:

Housing: 30% Glass filled PBT UL94V-0.

Contacts: Phosphor Bronze

Pin Plated: Gold 3u" over 50u" nickel

Electrical:

Current Rating: 1 AMP

Insulator Resistance: 1000M Ohm min. at 500 VDC

Dielectric Withstanding Voltage:500 VAC / Minute

Contact Resistance: 30m Ohm max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

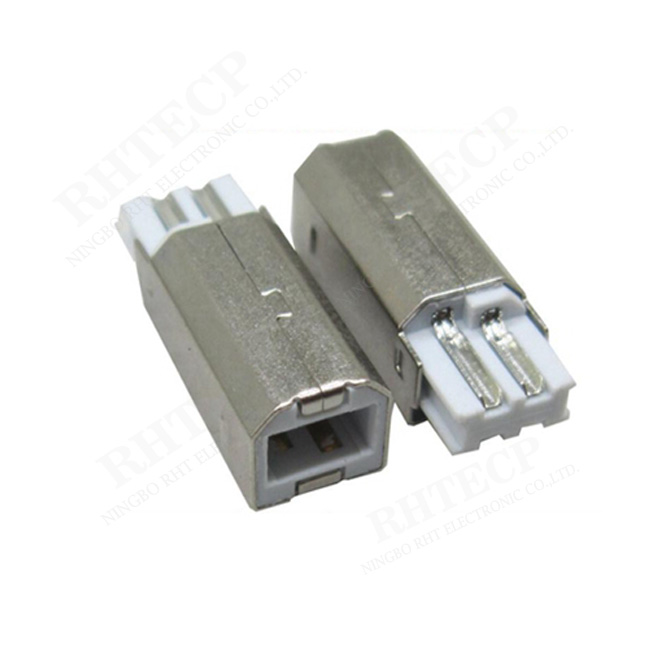

B Male Solder USB Connector : RHTAY92

Series Part No:RHTAY92

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Type B Male Interface: Designed to meet USB 2.0/1.1 standards, this connector ensures compatibility with a wide range of peripheral devices such as printers, scanners, and industrial control equipment.
-Solder Type Mounting: The through-hole solder terminals provide a secure and reliable connection to PCBs, making it ideal for applications requiring strong mechanical stability.
-Robust Construction: Features a nickel-plated metal shell that offers excellent shielding against electromagnetic interference (EMI) and improves durability in demanding environments.
-High Mating Durability: Engineered for repeated plug-in/out cycles with consistent performance, ensuring a long lifespan in commercial and industrial usage.

Applications

1.Consumer Electronics
2.Industrial Automation
3.Medical Devices
4.Communication Equipment

Specifications

Material
Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Piated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

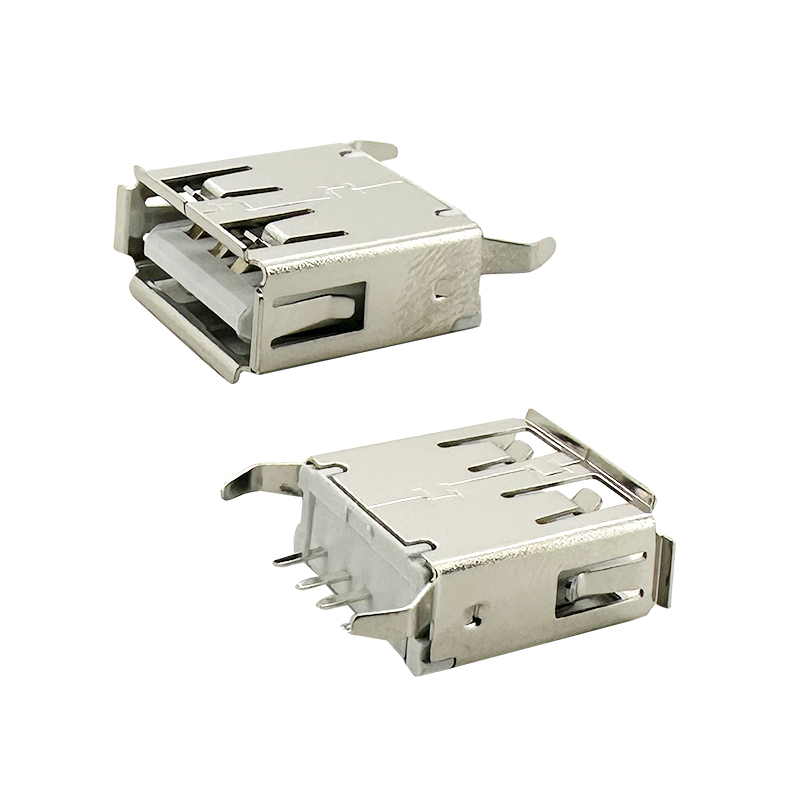

A Female Dip 180 USB Connector:RHTAY81B&RHTAY823&RHTAY831

Series Part No:RHTAY81B&RHTAY823&RHTAY831

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Standard Compatibility: Supports various USB standards such as USB 2.0 or USB 3.0, depending on the specific model. USB 3.0 connectors offer higher data transfer rates compared to USB 2.0.

-Orientation: The 180-degree orientation indicates that the connector is designed to be mounted horizontally on the PCB (Printed Circuit Board), with the pins extending out from both sides of the connector body.

-Number of Pins: Typically, USB connectors have four pins: VCC (Power), Data+, Data-, and Ground (GND). These pins facilitate power delivery and data transfer between devices.

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring reliable performance over the connector's lifespan.

Applications

1.Motherboards and Expansion Cards

2.Embedded Systems

3.Consumer Electronics

4.Industrial Equipment

Specifications

Material

Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Plated Gold In Mating Area;Tin On Solder Tails.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

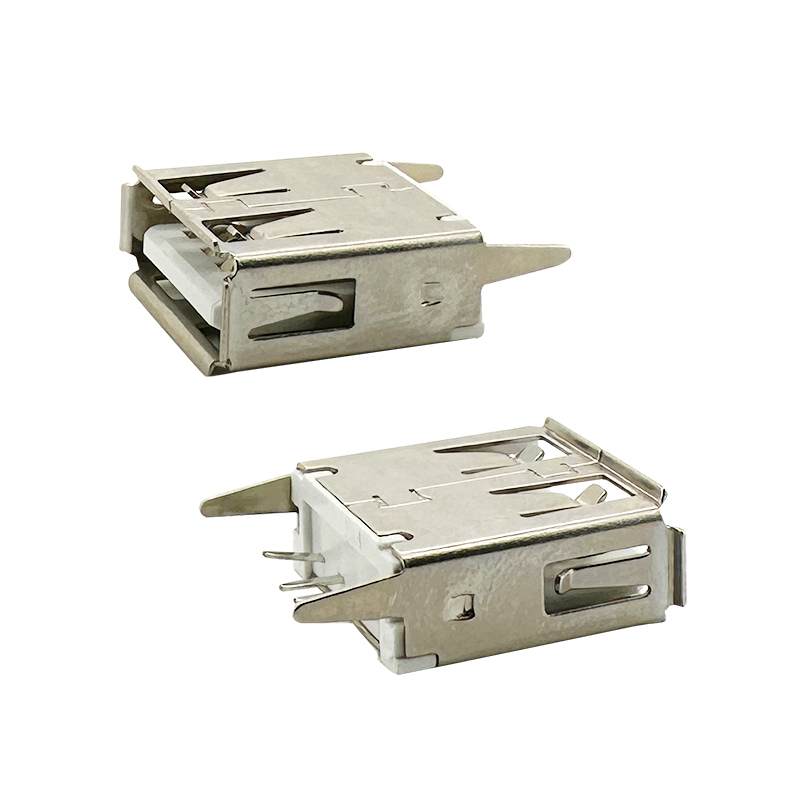

A Female Dip 180 USB Connector:RHTAY830

Series Part No:RHTAY830

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during data transmission.

-Mounting Type: Designed for through-hole mounting, which provides mechanical stability and secure attachment to the PCB during soldering.

-Connector Type: Female USB connectors are designed to receive male USB plugs, enabling devices to connect for data transfer, charging, and other functionalities.

-Compatibility: Compatible with a wide range of electronic devices and applications that require USB connectivity, such as computers, peripherals, consumer electronics, and industrial equipment.

Applications

1Medical Devices

2.Automotive Electronics

3.Networking Equipment

4.Test and Measurement Instrumentss.

Specifications

Material

Housing:Thermoplastic plastics.

Terminals:Copper Alloy.Gold plated in contact area;

Tin plated in termination Nickel plated overall.

Shell:Copper Alloy.Nickel plated overall.

Electrical:

Rating Current:1.5Ampere.

Rating Voltage:30V Max.

Contact Resistance:30mΩ Mill.

Insulation Resistance:1000MΩ Min.

Mechanical Characteristics:

Connector Mating force:35N Max (3.57Kgf)

Connector Unmating force:10N Min (1.02Kgf)

Durability:1500 Cycles.

Environment Characteristics:

Operating temperature:-0 °C to +50 °C

Technical Documents

Please contact us for more information.

X

X

1 2 3 4 5 6 next page
