USB 3.0 connectors

USB 3.0 Connectors are engineered to support efficient high-speed data communication and dependable device interfacing. Their design considers contact configuration, signal routing, impedance characteristics, shielding effectiveness and mechanical endurance. Refined terminal positioning and housing construction help maintain stable transmission performance, reduce interference and withstand repeated mating, making them suitable for computers, industrial equipment, peripherals and embedded electronic systems.

Enlarge

Quick View

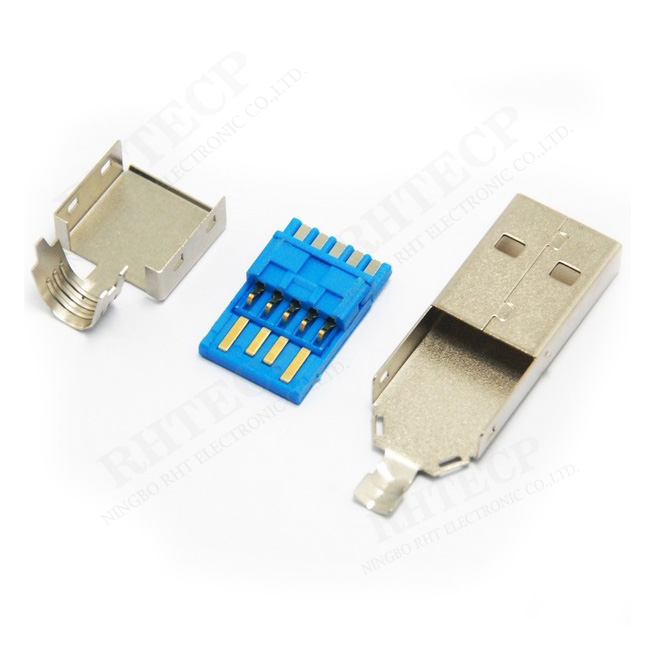

A Male Solder USB 3.0 connector : RHTAY12

Series Part No:RHTAY12

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Reliable Signal Integrity: Engineered to minimize crosstalk and maintain high-quality signal transmission over longer cable lengths.
-Easy Installation: Solder-type design allows for straightforward integration into custom hardware projects and repairs.
-Wide Application: Suitable for use in consumer electronics, industrial equipment, data transfer hubs, and peripheral devices.
-Heat-Resistant Materials: Manufactured with materials that withstand soldering heat without degradation, ensuring durability during assembly.

Applications

1.Consumer Electronics
2.Computer Motherboards
3.External Hard Drives
4.Printers and Scanners

Specifications

MaterialInsulator: PBT,UL94V-0Contact: Copper Alloy T=0.2mm,Gold plated
Shell: Spcc,T=0.30MM，Nickel(Ni) plated
Electrical
Contact Current Rating:1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:500VAC(R.M.S.)
Contact Resistance: 30mΩ Max
Insulation Resistance:1000MΩ Min
Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

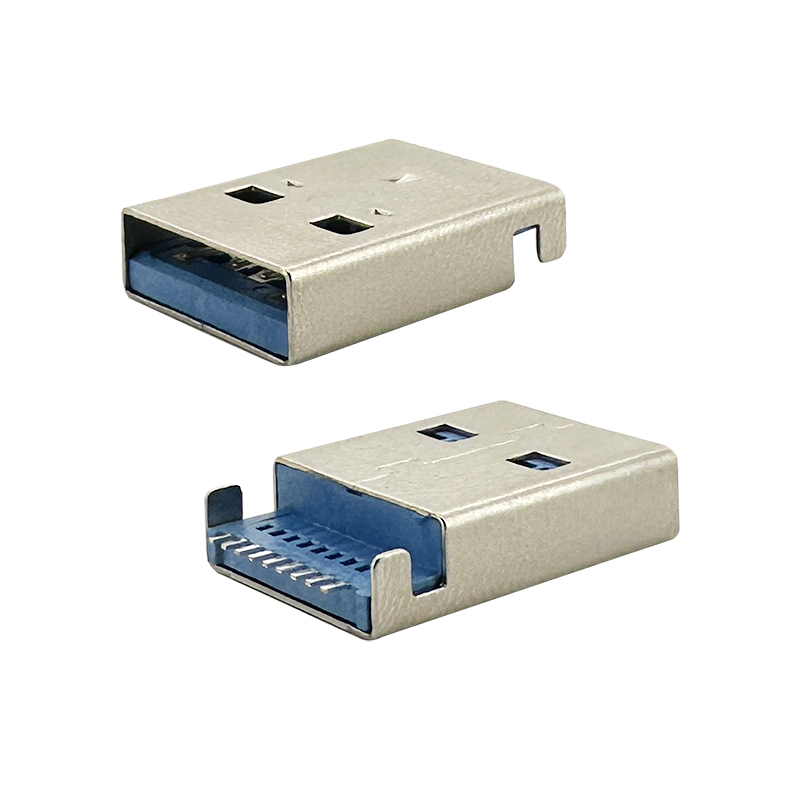

SMT A Male USB 3.0 Connector:RHTAY10

Series Part No:RHTAY10

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB 3.0 Standard:Compliant with USB 3.0 specifications, offering enhanced data transfer rates (up to 5 Gbps) compared to USB 2.0, making it suitable for high-speed data applications.

-Connector Type:A Male Connector: Typically used for connecting to downstream devices such as computers, laptops, hubs, and other peripherals.

-SMT (Surface-Mount Technology):Designed for direct soldering onto the surface of a printed circuit board (PCB), allowing for automated assembly processes and reducing production time.

-Number of Pins:The connector includes the standard 9 pins required for USB 3.0 connectivity: 4 for data transfer (Tx and Rx pairs), 1 for ground, and 4 for power and other signals.

Applications

1.External Displays and Monitors

2.Networking Devices

3.Gaming Devices

4.Industrial Automation

Specifications

Material

Housing: Thermoplastic

Contacts: copper

Pin Plated: Gold 3u" over 50u" nickel

Shell: Spcc,Nickel plated

Electrical

Contact Current Rating: 1.5 A

Withstanding Voltage:500VAC(Rms)

Contact Resistance: 30mΩ Max

Insulation Resistance:1000MΩ Min

Mechanical

Operating Temperature:-30°C TO +80°C.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

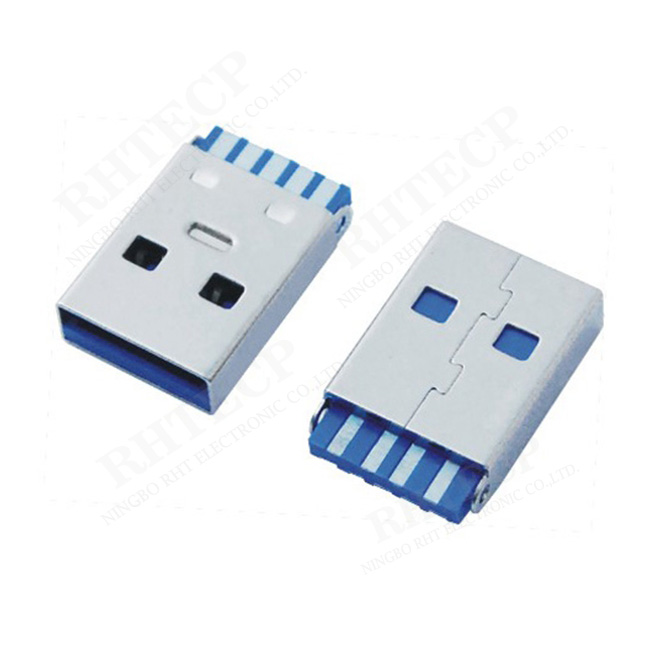

A Male Solder USB 3.0 connector : RHTAY49

Series Part No:RHTAY49

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-Speed Data Transfer: Supports USB 3.0 protocol with data transfer rates up to 5 Gbps, enabling fast and efficient communication between devices.
-Backward Compatibility: Fully compatible with USB 2.0 and USB 1.1 standards, ensuring versatility with a wide range of devices.
-Robust Solder-Type Pins: Designed with male solder pins for secure and stable electrical connections on printed circuit boards (PCBs) or cables.
-Durable Construction: Features a rugged metal shell that provides excellent shielding against electromagnetic interference (EMI) and mechanical protection.

Applications

1.Data Transfer Hubs
2.USB Expansion Cards
3.Audio/Video Devices
4.Networking Equipment

Specifications

Micro Match Connector Female DIP 180

Order Information:

RHTAY04F-XX-R-A

XX-No.of 04~26pin

Color: R=Red B=Black

Material:A=PBT D=PA9T E=PA46

Material:

Housing: PBT/PA46/PA9T UL94V-0

Contacts: Phosphor bronze

Plating:Sn over 50u" nickel

Electrical Characteristics:

Current Rating: 1.0 AMP

Voltage Rating: 230V AC/DC

Withstand voltage:500V AC/Minute

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

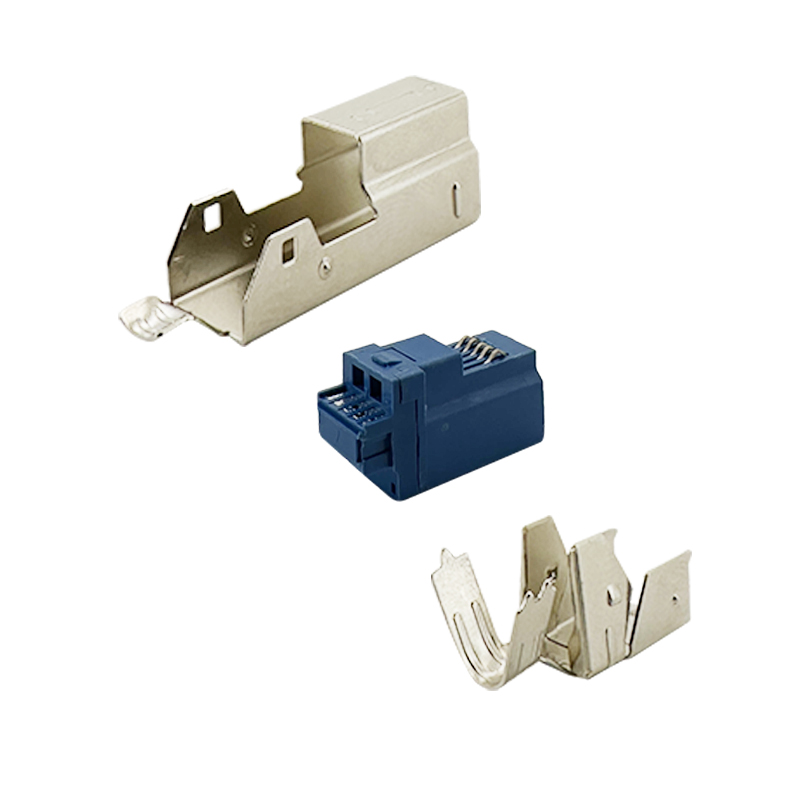

B Male Solder USB 3.0 connector:RHTAYA48

Series Part No:RHTAYA48

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Solder Type: Designed for soldering directly onto a printed circuit board (PCB), providing a secure and permanent connection.

-Backward Compatibility: While primarily used for USB 3.0 devices, USB 3.0 connectors are backward compatible with USB 2.0 and USB 1.1 standards, allowing them to work with older USB devices at lower speeds.

-Mechanical Durability: Designed to withstand frequent insertion and removal cycles, ensuring longevity and reliability.

-Shielding: Typically includes shielding to minimize electromagnetic interference and ensure signal integrity during high-speed data transmission.

Applications

1.External Hard Drives

2.Printers and Scanners

3.Digital Cameras and Camcorders

4.Docking Stations

Specifications

Material

Housing: 30% Glass filled PBT UL94V-0

Contacts: copper

Pin Plated: Gold 3u" over 50u" nickel

Shell: Spcc,Nickel plated

Electrical

Contact Current Rating: 1.8 A

Withstanding Voltage:500VAC(Rms)

Contact Resistance: 30mΩ Max

Insulation Resistance:1000MΩ Min

Mechanical

Operating Temperature:-30°C TO +80°C.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

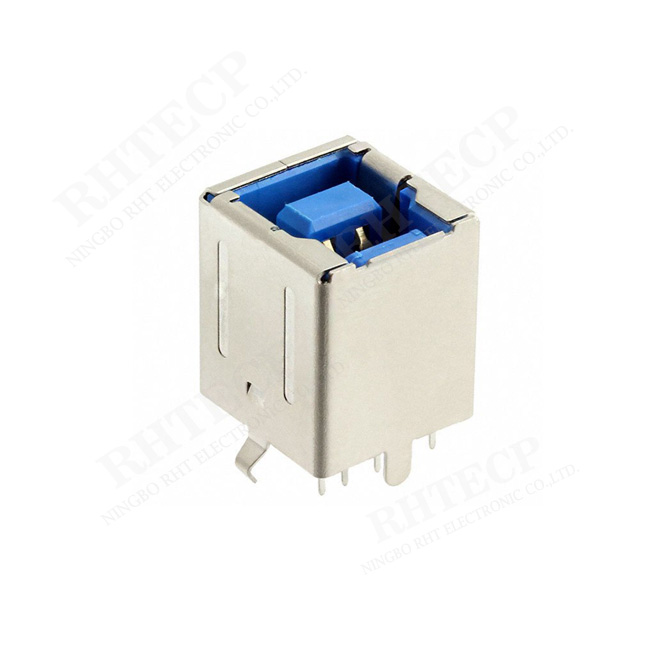

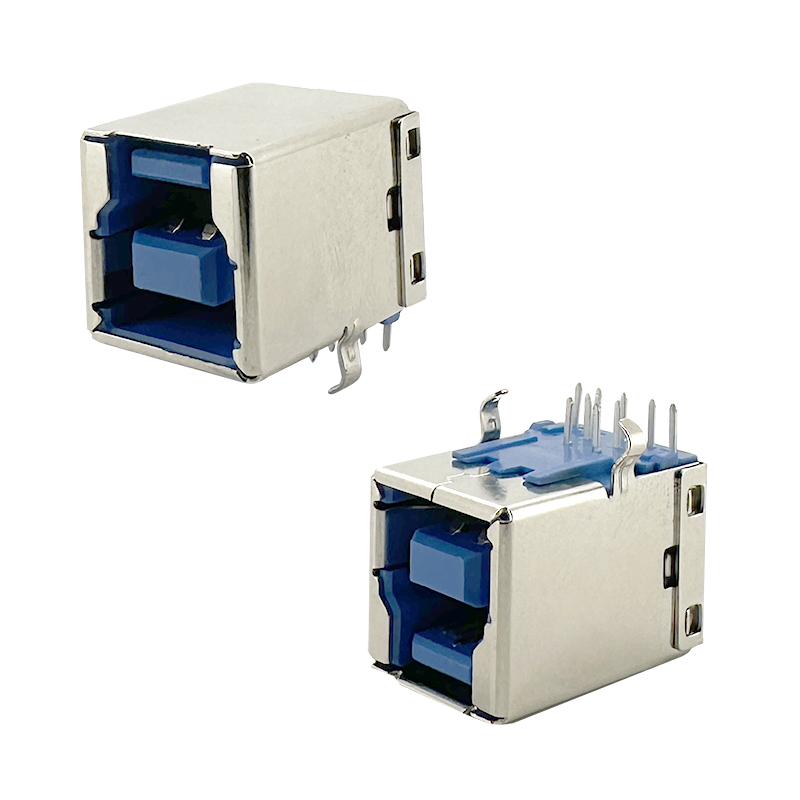

Dip 90 B Female USB 3.0 Connector :RHTAY48F

Series Part No:RHTAY48F

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compatibility: Compliant with USB 3.0 specifications, ensuring compatibility with devices that require high-speed data transfer rates and backward compatibility with USB 2.0 devices.

-Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.

-Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling fast data transfer for large files and multimedia content.

-Power Delivery: Provides enhanced power delivery compared to USB 2.0 connectors, supporting higher power output for charging and powering devices.

Applications

1.Medical and Healthcare Devices

2.Gaming Consoles and Accessories

3.Data Acquisition Systems

4.Telecommunications and Networking Equipment

Specifications

Material

Housing: Thermoplastic, Glass Fiber Filled,UL94-HB

Cover: Thermoplastic, Glass Fiber Filled, UL94V-0

USB2.0 Contact: Copper Alloy,Gold.

USB3.0 Contact: Copper Alloy,Gold.

Shell: Brass/Spcc,Nickel(Ni) T=0.30MM

Electrical

Contact Current Rating:1.5 A For

Pin1&Pin4 0.25 A Other Contacts.

Withstanding Voltage:100vac(Rms)

Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4

50mΩ Max(Initial) For Other Contacts

10mΩ Max Change For Post Test Llcr

Insulation Resistance:1000mΩ Min

Mechanical

Operating Temperature:-40°C TO +85°C.

Mating Force: 35N MAX

Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Dip 180 B Female USB 3.0 Connector: RHTAY16

Series Part No:RHTAY16

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB 3.0 Standard: Supports high-speed data transfer up to 5 Gbps
-180-Degree DIP (Dual In-line Package): Suitable for PCB through-hole mounting
-Female Connector: Designed to accept male USB 3.0 plugs
-Durable Construction: Made with robust materials for long-lasting use

Applications

1Desktop Computers
2.Embedded Systems
3.Industrial Equipment
4.Medical Devices

Specifications

Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
USB2.0 Contact: Copper Alloy,Gold.
USB3.0 Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating:1.5 A For
Pin1&Pin4 0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
10mΩ Max Change For Post Test Llcr
Insulation Resistance:1000mΩ Min
Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

dip 90 MID mount H1.68mm A Female USB 3.0 connector ：RHTAY011

Series Part No:RHTAY011

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-90-degree right-angle DIP mount design for efficient PCB space utilization and easy integration into compact electronic devices.
-MID (Mechanical Insertion Depth) mount ensures stable and secure mechanical connection, reducing wear and improving durability during repeated insertions.
-Compact H1.68mm height profile ideal for slim and low-profile device applications where space saving is critical.
-Fully compliant with USB 3.0 standards, supporting data transfer speeds up to 5 Gbps, enabling fast and reliable communication with USB 3.0 peripherals.

Applications

1.Desktop Computers
2.Embedded Systems
3.Industrial Automation
4.Medical Devices

Specifications

Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating: 1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min
Mechanical
Operating Temperature:-30°C TO +80°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

dip 90 MID mount H3.18mm A Female USB 3.0 connector : RHTAY14

Series Part No:RHTAY14

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-90-degree right-angle DIP mount design allows for efficient use of PCB space, ideal for compact and densely packed electronic devices.
-MID (Mechanical Insertion Depth) mount provides a secure and stable connection, reducing mechanical stress and ensuring reliable performance over repeated plug cycles.
-H3.18mm height profile is designed to accommodate devices that need a slightly taller connector while maintaining a low overall profile.
-Compliant with USB 3.0 standards, supporting high-speed data transfer rates up to 5 Gbps, suitable for demanding data applications.

Applications

1.3D Printers
2.Development Boards
3.Portable Devices
4.Data Storage Devices

Specifications

Electrical
Contact Current Rating:1.5 A For
Pin1&Pin4 0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
10mΩ Max Change For Post Test Llcr
Insulation Resistance:1000mΩ Min
Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X

1 2 3 4 next page
