Smart card connectors

Smart card connectors, card reader connectors, contactless card connectors, RFID connectors, electronic card connectors, security card connectors, smart card interface connectors, secure data transmission connectors, IoT card connectors, financial transaction card connectors, biometric card connectors, connector solutions for smart cards, card connector designs, modular smart card connectors, high-speed card connectors, durable smart card connectors, smart card terminal connectors, connector components for card-based systems, smart card accessories, smart card interface solutions.

Enlarge

Quick View

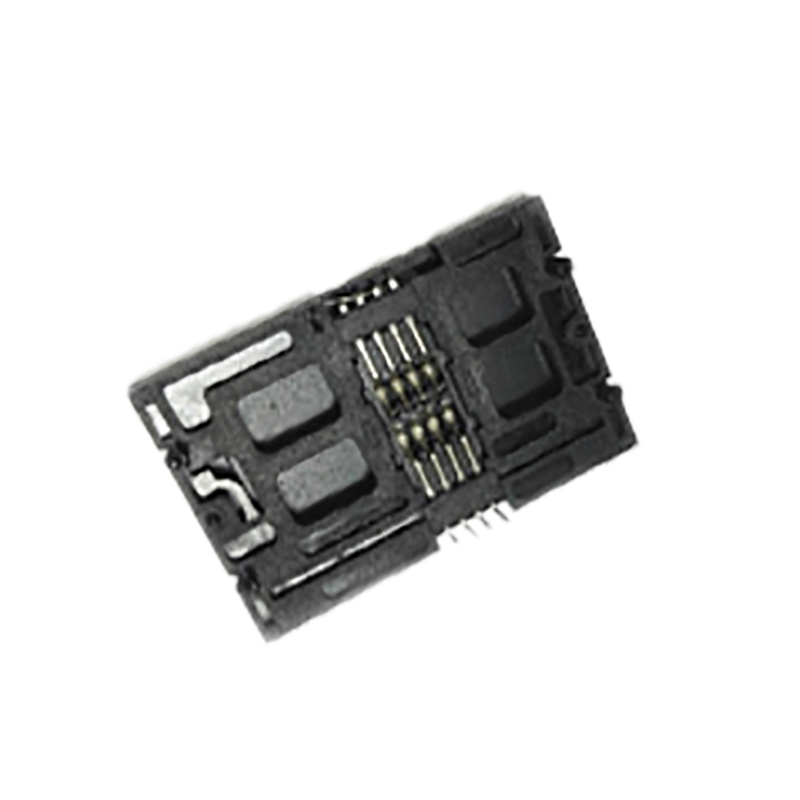

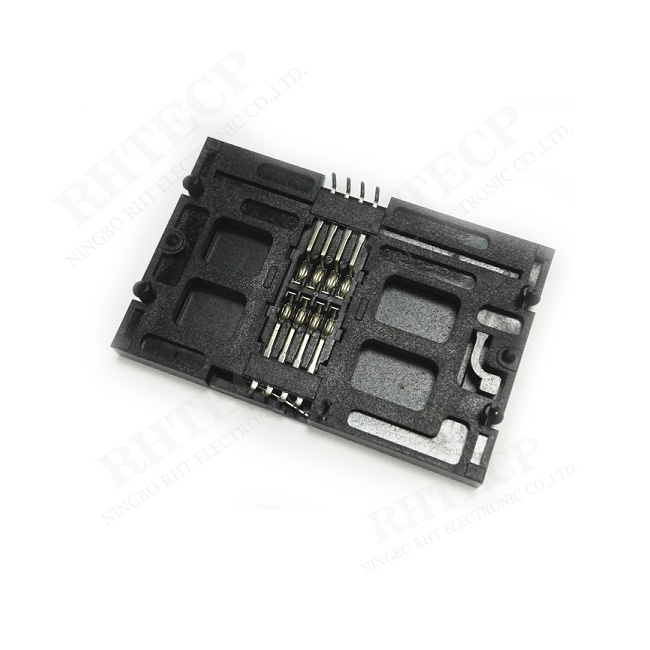

AMP C70210M0089254 Smart Card Connector & RU-618 Smart Card Connector : RHTAYCC01(RU-618)

Series Part No:RHTAYCC01(RU-618)

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and robust design：slim structure, ideal for space-limited devices while maintaining strong mechanical stability.
-High durability & reliability：supports over 10,000+ mating cycles, ensuring long service life in intensive-use environments.
-Secure card retention system：optimized locking mechanism prevents accidental card removal and ensures stable contact.
-Excellent electrical performance：gold-plated contacts reduce resistance and provide consistent, high-quality signal transmission.

Applications

1.Telecommunication equipment
2.Banking and financial systems
3.POS terminals and payment devices
4.Identification and authentication systems

Specifications

AMP C70210M0089254 Smart Card Connector & RU-618 Smart Card Connector
Electrical Characteristics:
Number of CONTACTS : 8 Pins
Rated voltage : 50V MAX
Rated current : 1A MAX
Dielectric withstanding voltage : 500V AC rms 1min (sealevel)

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

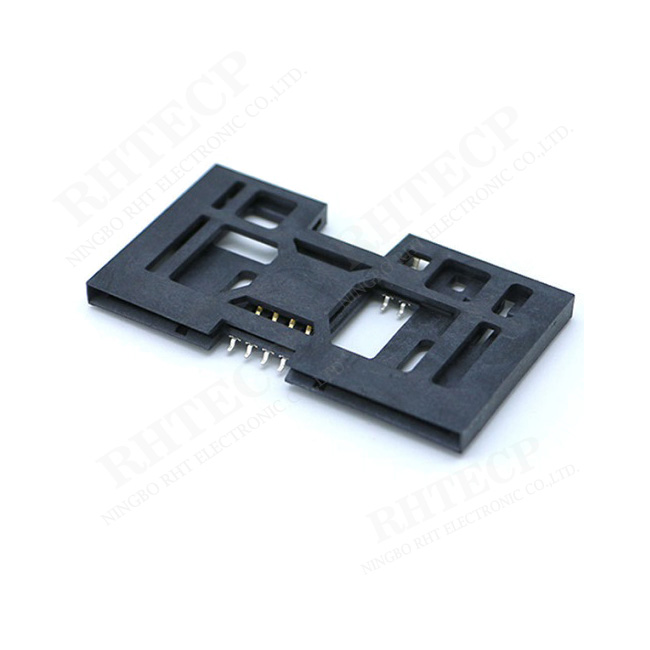

Smart Card Connector PUSH PULL,8P+2P,With post : RHTAYSC-F002

Series Part No:RHTAYSC-F002

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-pull mechanism：ensures smooth and secure card insertion and removal, reducing wear and tear over repeated use.
-8P+2P contact configuration：supports multiple signal and power lines, making it suitable for complex smart card applications.
-With post：provides enhanced mechanical stability and reliable PCB mounting, preventing connector displacement.
-High durability construction：made from premium materials, designed to withstand 10,000+ mating cycles for long-term reliability.

Applications

1.POS terminals and payment devices
2.Banking and financial systems
3.Telecommunication equipment
4.Identification and authentication systems

Specifications

Smart Card Connector PUSH PULL,8P+2P,With post
Material:
1. Bracket: PC UL94V-0, black
2. Cover plate: bracket: PC UL94V-0, black
3. Small door: bracket: PC UL94V-0, black
4. Reed: phosphor copper, bottom Ni, surface local Au
5. Large switch: phosphor copper
6. Small switch: phosphor copper
7. Button: PC, black
8. Small door spring: stainless steel
Electrical characteristics
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
Durability:100,000 cycles min.
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

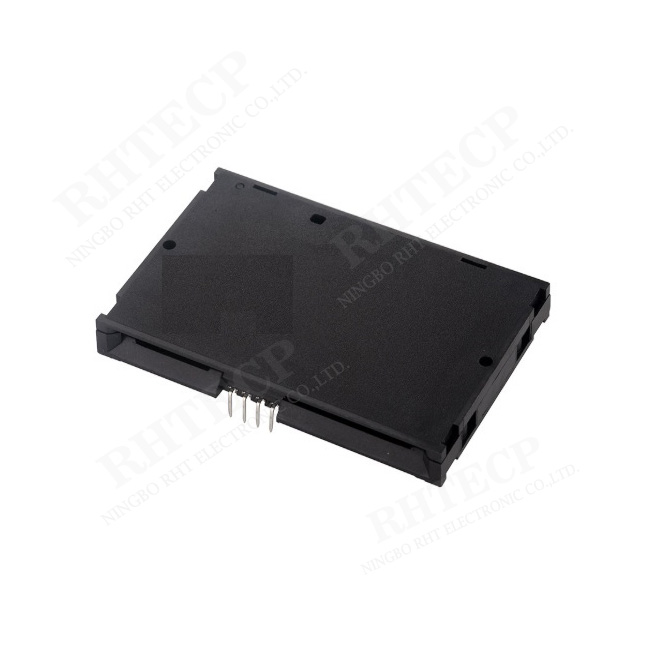

Smart Card Connector PUSH PULL,8P+2P,With post : RHTAYSC-F006

Series Part No:RHTAYSC-F006

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-pull mechanism：ensures smooth insertion and secure removal of smart cards.
-8P+2P contact configuration：supports multiple signal and power lines for versatile applications.
-With post：provides stable mounting and enhanced mechanical support.
-Durable construction：high-quality materials for long service life and reliable performance.

Applications

1.Access control and security devices
2.SIM card modules and mobile devices
3.Smart cards for government and public services
4.Industrial control and automation systems

Specifications

Smart Card Connector PUSH PULL,8P+2P,Without post
Material:
Base:Hi-temp Thermoplastic,Black UL94V-0
Cover:SUS,Solder area:Tin plated
Data Contact:Copper Alloy,Contact area:Gold plated
Current Rating: 1A
Contact Resistance:50mΩ typical,100mΩ max.
Insulation Resistance:1000MΩ min
Dielectric withstanding voltage:AC 500V(r.m.s) /60s
Durability:100,000 cycles min.
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

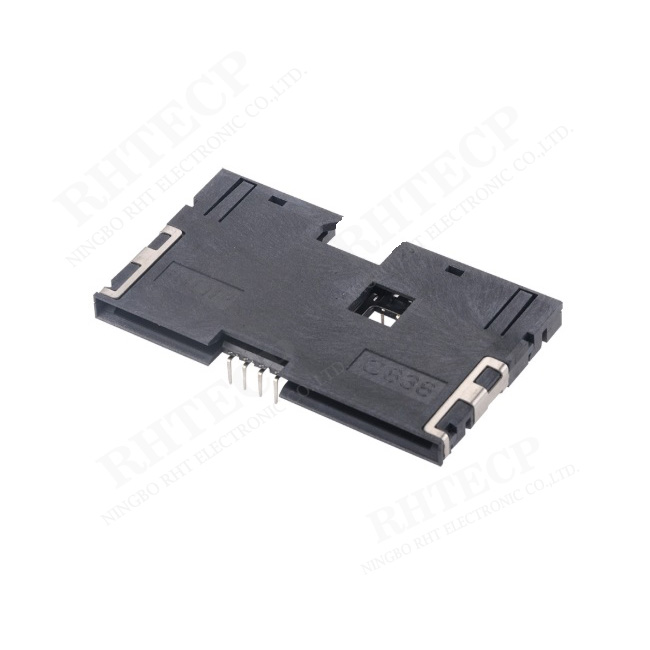

Smart Card Connector PUSH PULL,8P+2P : RHTAYSC-007

Series Part No:RHTAYSC-007

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-Pull Mechanism: Smooth insertion and removal of smart cards without damaging contacts. Provides a secure and reliable connection.

-High Contact Count: 8P+2P configuration allows for multiple signal lines plus extra contacts for enhanced functionality.

-Durable Construction: Made with high-quality materials ensuring long service life and resistance to wear from repeated card insertion and removal.
-Compact Design: Space-saving footprint suitable for PCB mounting in compact electronic devices.

Applications

1.Smart Card Readers
2.Payment Terminals
3.Access Control Systems
4.Vending Machines

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Rated current: 1.0A max
Rated voltage: 50V AC/DC
Operating temperature: -40°C ~ +85°C
Contact resistance: 100m ohms max.
Withstand voltage: 500V AC / 1 minute
Insulation resistance: 1000M ohms min./500VDC
Durability times: 50000 times
Product temperature resistance: 260±5°C 10S
Flatness: 0.10mm MAX.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

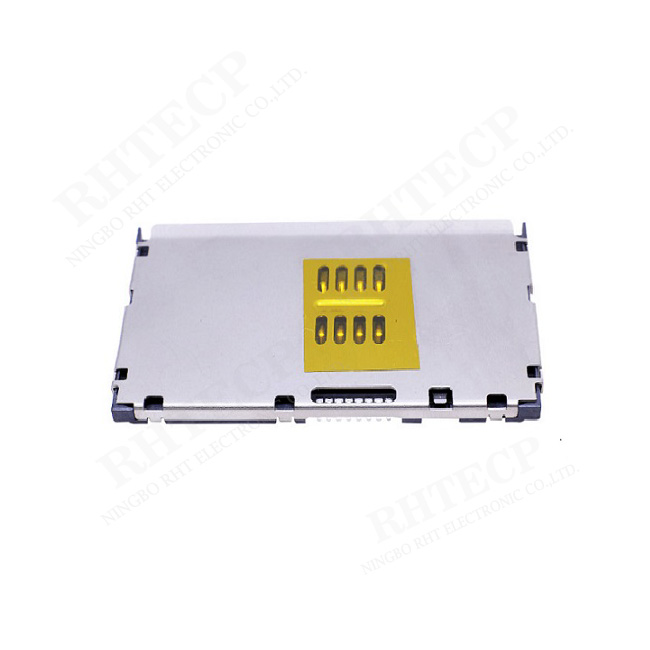

Smart Card Connector PUSH PULL,8P+2P : RHTAYSC-008

Series Part No:RHTAYSC-008

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Low Noise Operation – Engineered to operate with minimal electromagnetic noise and vibration.

-Thermal Stability – Equipped with cooling systems (air or oil cooled) to manage heat dissipation.

-Customizable Specifications – Available in various power ratings, winding types, and core materials.

-Compact Design – Optimized footprint for space-saving installation in industrial or commercial settings.

Applications

1.Vending Machines

2.Telecommunications Devices

3.Networking Equipment

4.Identity Verification Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Material:
1.Base:Hi-temp Thermoplastic,Black UL94V-0
2.Cover:SUS,Solder area:Tin plated
3.Data Contact:Copper Alloy,Contact area:Gold plated
4.Switch Contact:Contact area:Silver plated
5.Flake:SUS
Electrical Characteristics
Contact resistance:50Ω typical,100Ω max
Insulation resistance:>1000MΩ/500V DC
Durability:300,000 cycles min.
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

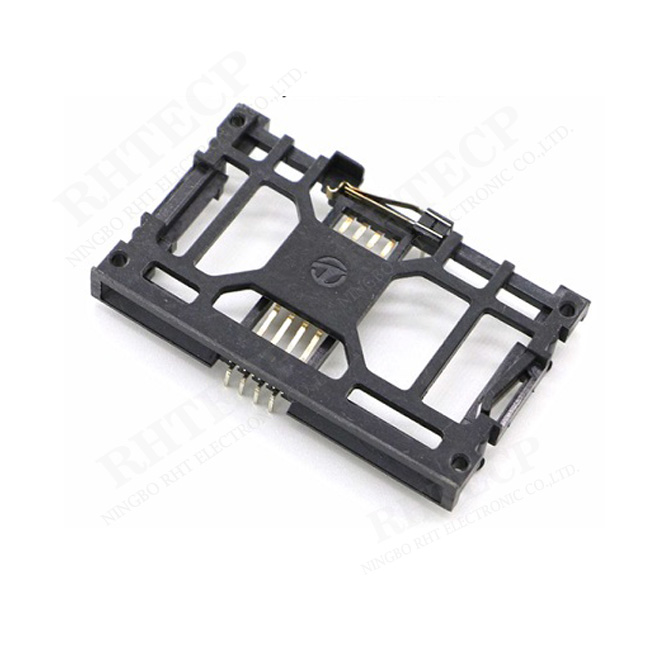

Smart Card Connector PUSH PULL,8P+2P : RHTAYSC-009

Series Part No:RHTAYSC-009

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Wide Application: Ideal for smart card readers, payment terminals, access control devices, and other electronic equipment.

-Compliance Standards: Meets industry standards for smart card connectors, ensuring compatibility and safety.

-Push-Pull Mechanism: Smooth and secure card insertion and removal, reducing wear on card contacts and preventing accidental disconnection.

-High Contact Count (8P+2P): Supports multiple signal lines plus additional contacts for extra functionality, ideal for complex electronic applications.

Applications

1.Banking & ATM Machines

2.Ticketing Systems

3.Security Systems

4.Healthcare Devices

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Durability:300000 cycles min.
Contact Resistance:50Ω typical,100Ω Max.
Insulation Resistance:>1000MΩ/500V DC.
Solderability
Vapor phase:215ºC.30sec.Max.
IR feflow:260ºC.10sec.Max.
Manual soldering:370ºC.3sec.Max.
4.Environmental Characteristics
Operating Temperature:-40ºC TO +85ºC
Operating humidity:10%-+95%RH.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

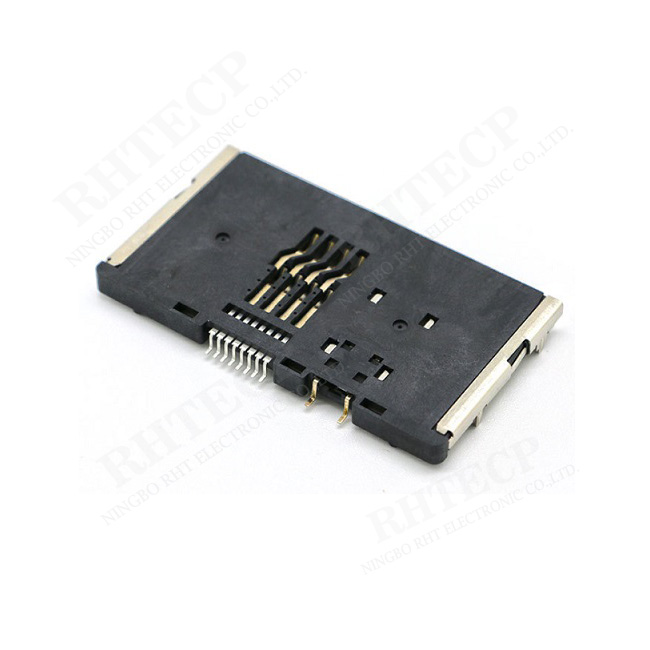

Smart Card Connector PUSH PULL,8P+2P : RHTAYSC-010

Series Part No:RHTAYSC-010

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High Contact Count (8P+2P): Supports multiple signal lines plus additional contacts for extra functionality, ideal for complex electronic applications.

-Durable Construction: Made from high-quality, corrosion-resistant materials that ensure long-term reliability even under frequent use.

-Stable Electrical Performance: Low contact resistance guarantees reliable data transmission and minimal signal loss.

-Compact and Space-Saving Design: Optimized footprint allows easy integration into PCB boards of limited size without compromising performance.

Applications

1.Banking & ATM Machines

2.Ticketing Systems

3.Security Systems

4.Healthcare Devices

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical:
Durability:100000 cycles min.
Contact Resistance:50Ω typical,100Ω Max.
Insulation Resistance:>1000MΩ/500V DC.
Solderability
Vapor phase:215ºC.30sec.Max.
IR feflow:260ºC.10sec.Max.
Manual soldering:370ºC.3sec.Max.
4.Environmental Characteristics
Operating Temperature:-40ºC TO +85ºC
Operating humidity:10%-+95%RH.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

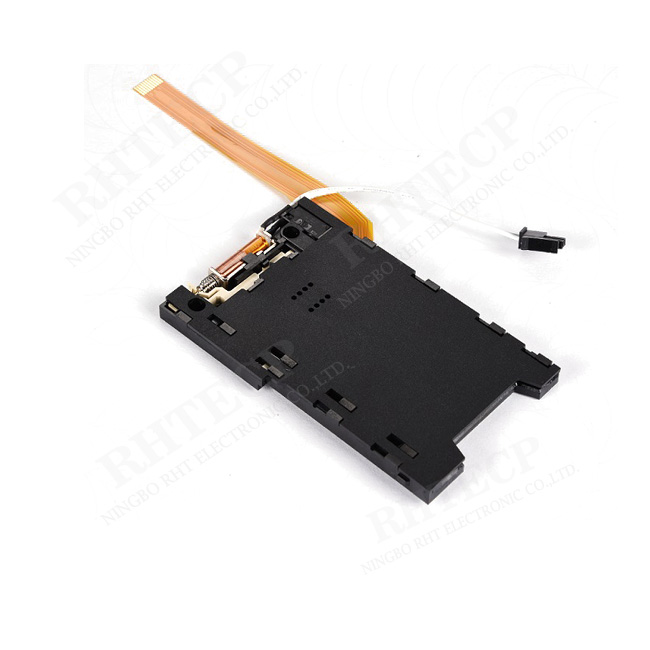

Smart Card Connector PUSH PULL,8P+2P : RHTAYSC-F011A

Series Part No:RHTAYSC-F011A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Enhanced Card Retention: Secure locking mechanism holds cards firmly in place while still enabling easy push-pull operation.

-Wide Application Range: Suitable for smart card readers, payment terminals, access control systems, vending machines, and other electronic devices requiring reliable card connections.

-Industry Standard Compliant: Ensures compatibility with a variety of smart cards and meets global quality and safety standards.

-Long Service Life: Designed for thousands of insertion and removal cycles, providing consistent performance over time.

Applications

1.Gaming Machines

2.Retail POS Systems

3.IoT Devices with Card Interface
4.Industrial Control Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Material:
Housing:LCP,UL94V-0
Contact: Copper Alloy.
Electrical:
Current Rating:2 A
Contact Resistance:20mΩ max.
Insulatton Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-55℃~+125℃

Technical Documents

Please contact us for more information.

X

X

1 2 3 4 5 6 next page
