Features
-Medical Electronics: Supports advanced imaging systems and diagnostic devices that demand secure and fast signal interfaces.
-Consumer Electronics: Integrated into high-performance devices such as gaming consoles, VR platforms, and smart appliances.
-Test and Measurement Instruments: Ensures stable PCIE card connections in oscilloscopes, signal analyzers, and other precision tools.
-Data Centers and Cloud Servers: Enables dense PCIE-based expansion for storage, compute, and AI acceleration hardware.
Applications
1.R Medical Electronics
2.Consumer Electronics
3.Test and Measurement Instruments
4.Data Centers and Cloud Servers
Specifications

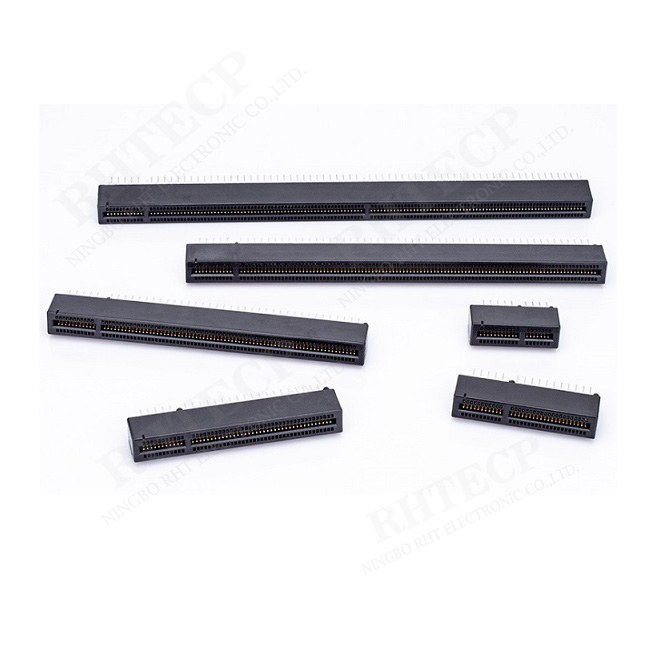

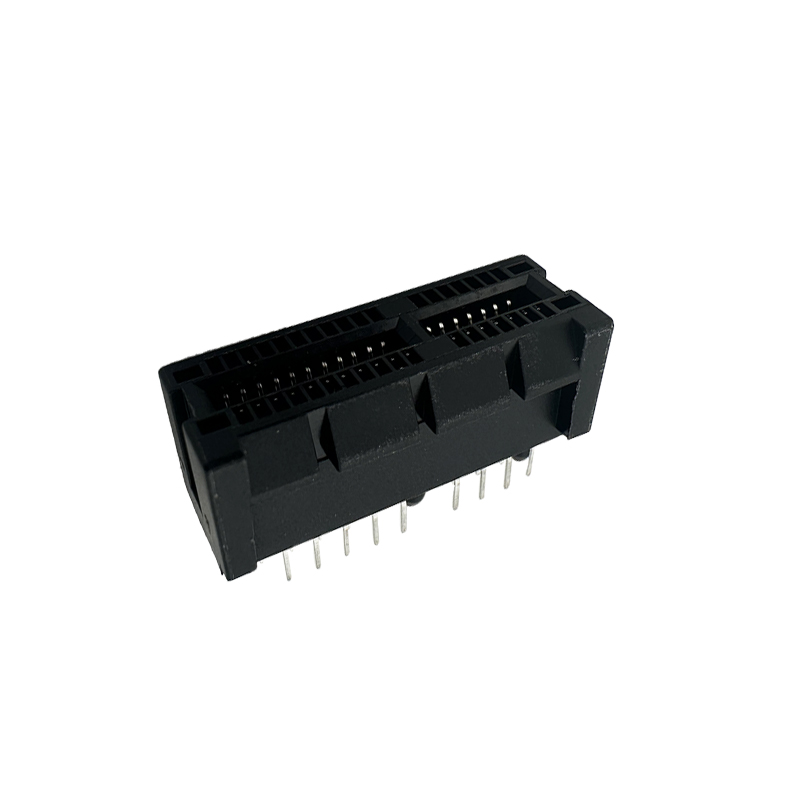

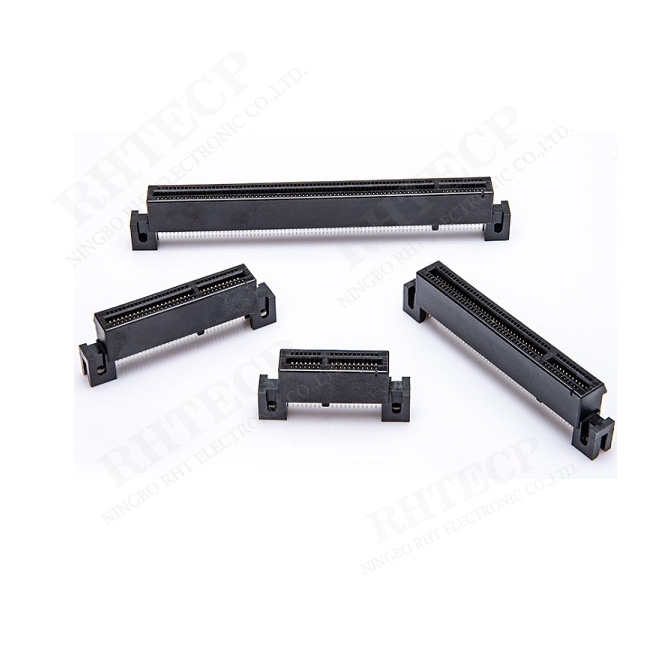

1.0mm PCIE Card Connector Splint Type 36P 64P 98P 164P
Order Information
RHTAYCIE02C-XX-B-1U-A
XX-No.of 36-164pins
B-Black W-White L-Blue Y-Yellow
Plating:1u"Gold ~30u" Gold
A-Tube C-Tray E-Box
Material:
Housing: PA46/PA6T/LCP, Glass Fiber 30%,UL94V-0
Contact: Brass
Plating: Gold Plating Over Nickel on Contact Area-TIN Plating on Terminal.
Mechanical
Insertion Forge: 1.15N Max Per Contact Pair
Withdrawal Force: 0.15N Min per contact pair
Contact Retention Force: 4.9N Min Per Contact,
Electrical Specification:
Contact Resistance: 30 Milliohms Max
Current Resistance: 1.1 Ampere
Insulation Resistance: 1000 Megohms Min, At 500V AC
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.
