D-Sub connectors & D-SUB hood

D-Sub Connectors and D-Sub Hoods are engineered for dependable signal connections and secure cable assembly in electronic systems. Their design focuses on pin arrangement, contact pressure, insulation spacing, shell strength and cable protection. Proper hood structure improves strain relief and shielding performance, while precise connector geometry supports stable mating and long-term reliability in industrial control, communication and computer equipment.

Enlarge

Quick View

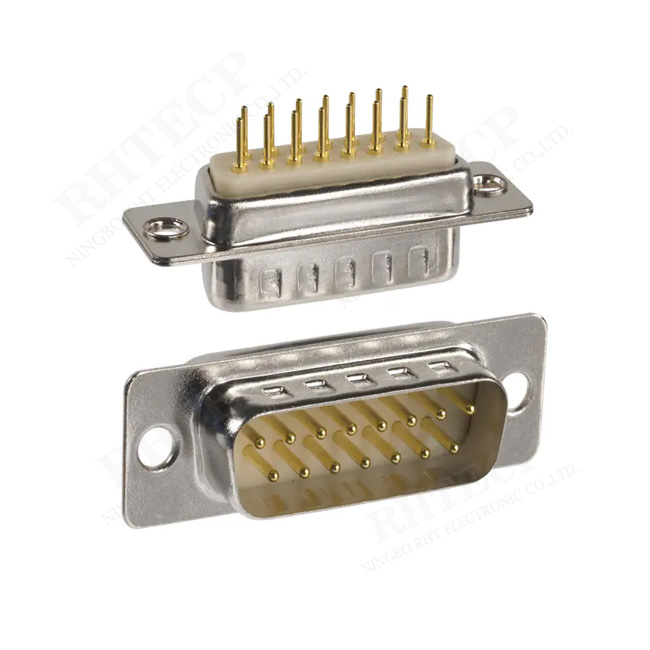

D-SUB-Sraight,Dual Row,Male,15P：RHTAY21E-15-M-W

Series Part No:RHTAY21E-15-M-W

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Male Connector: Features male pins for secure connection with female counterparts, ensuring stable connections.
-Straight Pin Orientation: Straight layout for easy insertion and alignment, perfect for space-constrained setups.
-Dual Row Design: Allows higher pin density while maintaining a small footprint, ideal for multi-signal connections.
-Durable Construction: Built with high-quality materials to resist wear and tear, ensuring long-lasting performance.

Applications

1.Industrial Automation Systems
2.Control Panels
3.Test Equipment
4.Data Communication Systems

Specifications

D-SUB-Sraight,Dual Row,Male,15P,
No Accesories,White Insulator,
Gold Flash(Stampped Pin)

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

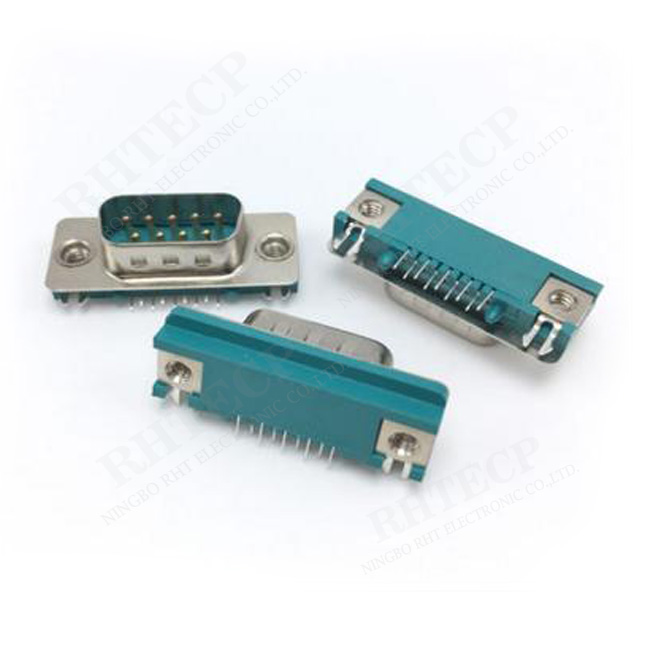

DR 2 Row SlimType D-SUB Connector 9P Male Female Right angle:RHTAYF15

Series Part No:RHTAYF15

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-SlimType Design: Compact and space-saving:The slim profile allows this connector to fit into tight spaces where traditional connectors may not, making it ideal for applications with limited room for installation.
-2-Row Configuration: Efficient 9-Pin Layout :The 2-row design with 9 pins ensures optimal space usage while maintaining reliable connections, providing better stability and signal quality.
-Right Angle Orientation: Flexible Installation :The right angle design provides more installation flexibility, making it easier to route cables in tight enclosures or to reduce strain on connectors in confined spaces.
-9-Pin (9P) Configuration: Versatile Connectivity:This standard 9-pin D-SUB connector is widely used in applications like serial communication, industrial control systems, and computer peripherals, offering excellent compatibility across different devices.

Applications

1.Industrial Automation Systems
2.Computer Networking Equipment
3.Telecommunications Devices
4.Embedded Systems

Specifications

DR 2 Row SlimType D-SUB Connector 9P Male Female Right angle
Order Information
RHTAYF15-09-M-L
Type:F15 Or F15C
09-No.of 9pins
M-Male F-Female
L-Blue B-Black E-Green
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 25mΩ Max. Initial
Operating Temperature: -55°C~+105°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

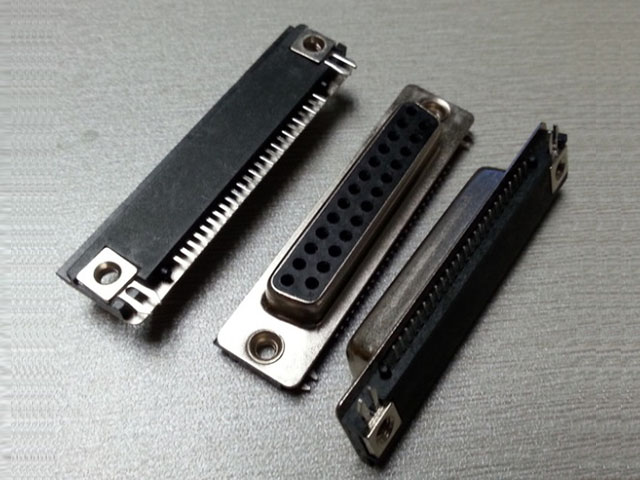

DR 2 Row SlimType D-SUB Connector 9P 25P Female Right angle : RHTAYF18

Series Part No:RHTAYF18

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Termination Style: Designed for through-hole mounting on a PCB (Printed Circuit Board). The pins of the connector are inserted into plated through-holes on the PCB and soldered to provide a secure mechanical and electrical connection.

-Latch or Locking Mechanism: Some box header connectors may include a latch or locking mechanism to secure the connector to the PCB, providing additional mechanical stability.

Mating Cycles: Designed to withstand multiple mating cycles, making them suitable for applications where frequent assembly and disassembly of components are required.

-Housing Material: The connector housing is typically made from durable thermoplastics such as PBT (Polybutylene Terephthalate) or Nylon. These materials provide mechanical strength and resistance to heat, chemicals, and environmental factors.

-Polarization and Keying: Some box header connectors may feature polarization features or keying options to ensure proper alignment during mating. This prevents incorrect connections that could damage components or affect performance.

Applications

1.Test and Measurement Instruments
2.Audio/Video Equipment
3.Automotive Electronics
4.Robotics

Specifications

DR 2 Row SlimType D-SUB Connector 9P 25P Female,Right angle
Order Information
RHTAYF18C-XX-M-B
Type:F18 Or F18C
XX-No.of 9~25pins
F-Female
L-Blue B-Black
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 25mΩ Max. Initial
Operating Temperature: -55°C~+105°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

DR 2 Row D-SUB Connector 9P Male Female Right angle,5.08mm : RHTAYD17

Series Part No:RHTAYD17

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Right Angle Orientation: Enables flexible cable routing and minimizes strain on the connector, making it suitable for confined spaces.
-5.08mm Pitch: Standard 5.08mm pin pitch ensures compatibility with a wide range of devices and systems.
-Male/Female Connectors: Available in both male and female versions, offering versatility for different applications.
-Durable Construction: Built with high-quality materials to withstand mechanical stress and provide long-lasting performance.

Applications

1.Computer Networking Equipment
2.Telecommunications Devices
3.Embedded Systems
4.Control Panels

Specifications

DR 2 Row D-SUB Connector 9P Male Female Right angle,5.08mm
Order Information
RHTAYD17-09-M-L
Type:D17 Or D17B
09-No.of 9pins
M-Male F-Female
L-Blue B-Black
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

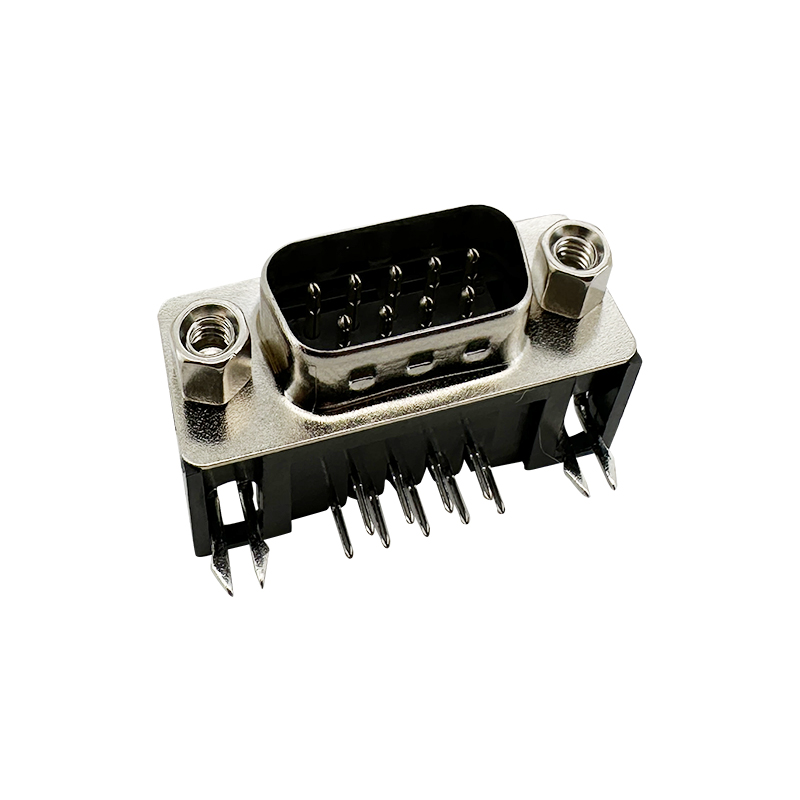

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,8.1mm :RHTAYB15

Series Part No:RHTAYB15

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: D-SUB (Dual Row)

-Number of Pins: 9P, 15P, 25P, 37P

-Orientation: Right Angle

-Pitch: Typically 8.1mm pitch between pins

Applications

1.Computer Peripherals

2.Industrial Equipment

3.Telecommunications

4.Test and Measurement Equipment

Specifications

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,8.1mm

Order Information

RHTAYB15-XX-M-B

Type:15 Or 15B Or 15C

XX-No.of 09,15,25,37pins

M-Male F-Female

B-Black L-Blue

Material:

Housing: PBT+30% Glass filled ,UL94V-0

Contacts: Brass ,Gold Plating

Electrical Characteristics:

Current Rating: 5 AMP

Insulator Resistance: 1000MΩ Min. at DC 500V

Withstanding Voltage: 500V AC (rms) for 1 minute

Contact Resistance: 20mΩ Max. Initial

Operating Temperature: -55°C~+105°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

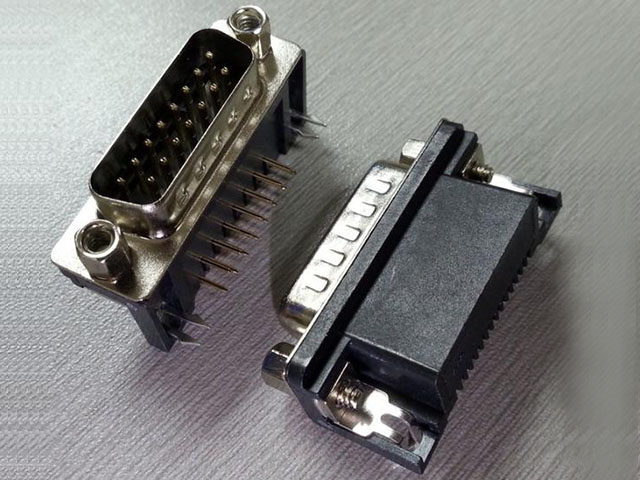

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,9.4mm: RHTAYE15

Series Part No:RHTAYE15

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Versatile Pin Configurations: Available in 9P, 15P, 25P, and 37P options, offering flexible connectivity for various applications.
-Right Angle Orientation: Right-angle design allows for efficient cable routing and installation in tight spaces, reducing cable strain.
-2-Row Design: The 2-row arrangement ensures a compact footprint while maintaining reliable and stable connections.
-9.4mm Pin Pitch: Standard 9.4mm pitch for compatibility with a wide range of devices and systems.

Applications

1.Industrial Automation
2.Networking Equipment
3.Telecommunications Systems
4.Embedded Systems

Specifications

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,9.4mm
Order Information
RHTAYE15C-XX-M-B
Type:E15 Or E15C
XX-No.of 09,15,25,37pins
M-Male F-Female
B-Black
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

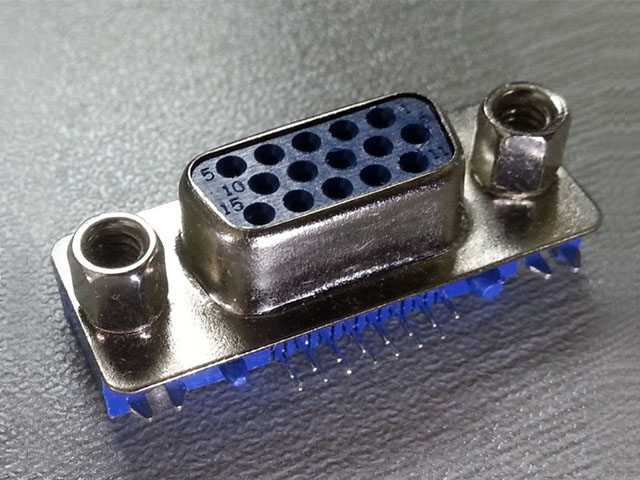

HDR 3 Row Slim Type D-SUB Connector, 15P Female,Right angle : RHTAYF20

Series Part No:RHTAYF20

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Right-Angle Configuration: Optimized for efficient cable management and minimal space usage.
-High-Quality Material: Made from durable materials for long-lasting performance and reliable connections.
-Versatile Compatibility: Suitable for a wide range of electronic applications, including computers, industrial equipment, and networking.
-Precision Engineering: High-precision manufacturing ensures consistent performance and low tolerances.

Applications

1.Computers and Servers
2.Industrial Automation
3.Networking Equipment
4.Telecommunication Systems

Specifications

HDR 3 Row Slim Type D-SUB Connector, 15P Female,Right angle
Order Information
RHTAYF20-15-F-L-N-R
15-No.of 15 pins
F-Female
B-Black L-Blue
N-Nickel plated G-Gold plated
P-Positive R-Reverse
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating or Gold Plating
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 40mΩ Max. Initial
Operating Temperature: -40°C~+85°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

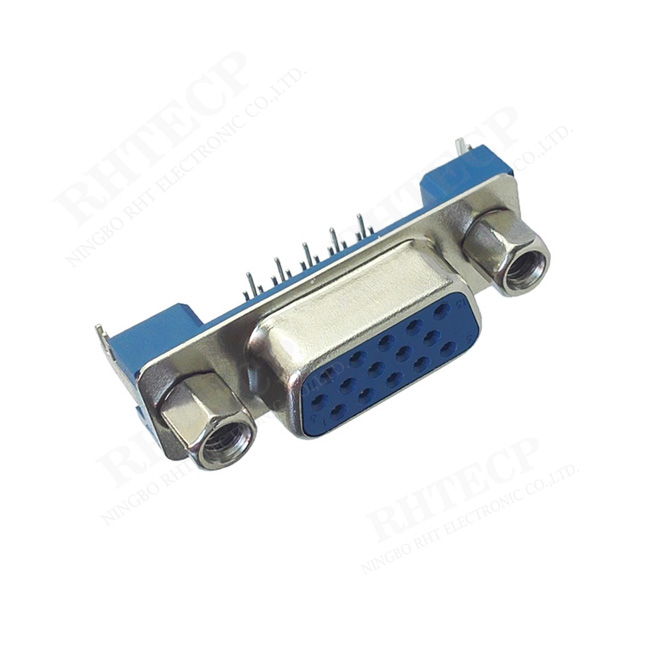

HDR 3 Row Slim Type D-SUB Connector, 15P Female,Right angle : RHTAYF19

Series Part No:RHTAYF19

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Slim Type Design: Compact and space-saving, ideal for installations in tight spaces where traditional connectors may not fit.
-3-Row Configuration: The 3-row layout with 15 pins ensures efficient space usage while maintaining a reliable, stable connection.
-Right Angle Orientation: Right-angle configuration allows for flexible cable routing, reducing strain and providing more installation options.
-Female Connector: The 15P female connector ensures secure and reliable connections with male counterparts.

Applications

1.Embedded Systems
2.Computer Peripherals
3.Control Panels
4.Medical Devices

Specifications

HDR 3 Row Slim Type D-SUB Connector, 15P Female,Right angle
Order Information
RHTAYF19C-15-M-B
Type:F19 Or F19C
15-No.of 15pins
F-Female
L-Blue B-Black
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 25mΩ Max. Initial
Operating Temperature: -55°C~+105°C

Technical Documents

Please contact us for more information.

X

X

1 2 3 4 5 6 next page
