Features
-Pitch and Size: The connectors have a pitch (distance between adjacent contacts) of 0.5mm, suitable for applications requiring fine pitch connections. The overall height (H) is approximately 1.2mm, providing sufficient clearance for the flexible circuits and ensuring compatibility with standard PCB layouts.
-ZIF Mechanism: These connectors feature a Zero Insertion Force (ZIF) mechanism, which allows for insertion and removal of the flexible circuits without applying significant force. This minimizes the risk of damaging the circuits during assembly or maintenance, making them ideal for applications where frequent connection/disconnection is necessary.
-Bottom/Upper Contact Design: These connectors can have both bottom and upper contacts, where the contact points are located on both the underside and top side of the connector. This dual contact design facilitates versatile connectivity options, enabling direct contact with the PCB pads on either side for optimized electrical performance and reliable signal transmission.
-Surface Mount Technology (SMT): Designed for surface mount assembly, these connectors are soldered directly onto the surface of a PCB. This allows for efficient and automated assembly processes, ensuring secure mechanical attachment to the board and minimizing assembly time and costs.
Applications
1. Telecommunications
2. LED Lighting
3. Testing and Measurement Equipment
4. Military and Aerospace
Specifications

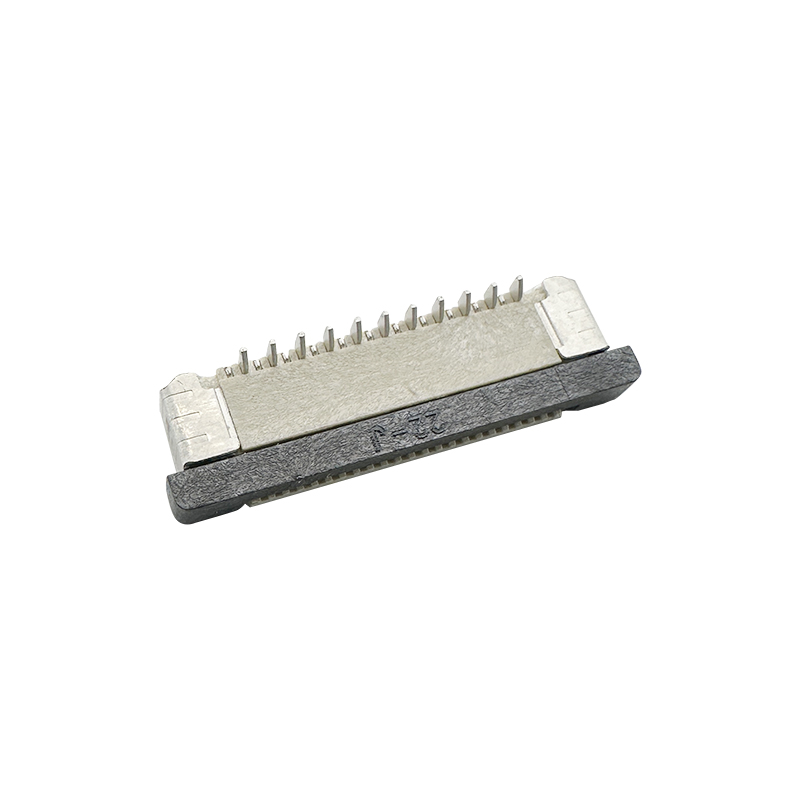

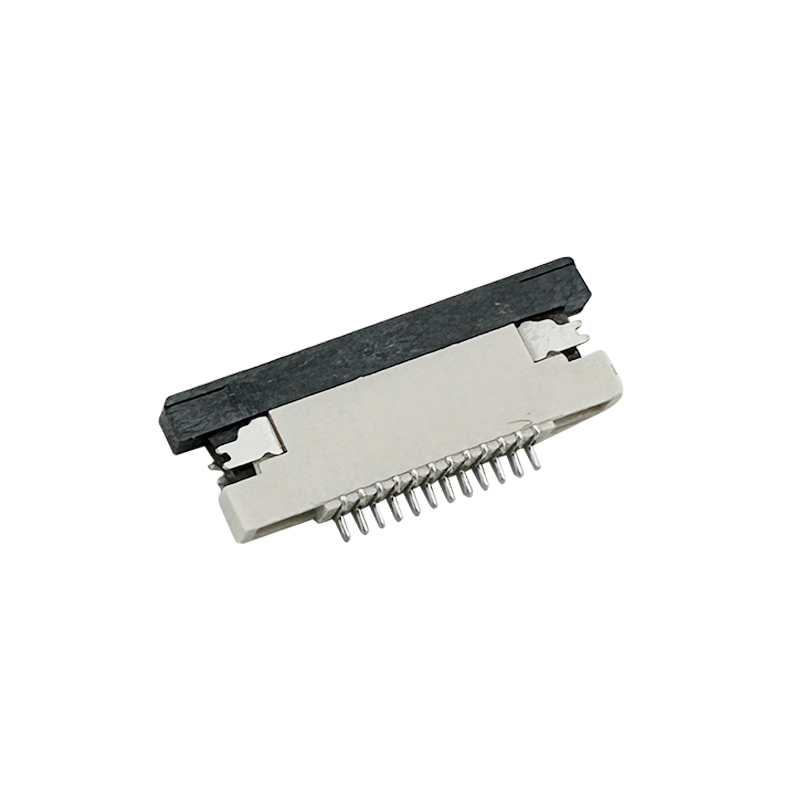

0.5mm ZIF SMT H1.2mm bottom/upper contacts 4-35P FPC/FFC connector
Order Information
RHTAY42D--1.2-XX-T-U-R
XX-No.of 04 ~ 35pin
Height: 1.2mm
T-SMT Pin
U-Upper Contact L-Lower Contact
Packing: R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Contact: Copper alloy
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.3 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +85℃
Technical Documents
Please contact us for more information.
