Features
-Pitch: 2.54mm (0.1 inches), which defines the spacing between each contact or pin center. This standard pitch ensures compatibility with various PCB designs and components designed for 0.1-inch grid spacing.
-Connector Type: IDC box header connectors are designed to interface with flat cables or ribbon cables. They feature insulation displacement contacts that pierce the insulation of the cable to make direct contact with the conductors, eliminating the need for stripping insulation or soldering.
-Number of Contacts: Available in configurations ranging from single-row headers with a few contacts to multi-row headers with numerous contacts, accommodating different connectivity requirements in electronic designs.
-Contact Material: Contacts are typically made from materials such as phosphor bronze or brass with tin or gold plating. These materials ensure good electrical conductivity, corrosion resistance, and durability over multiple mating cycles.
Applications
1. Computers and Peripherals
2. Telecommunications and Networking Equipment
3. Industrial Automation and Control Systems
4. Consumer Electronics
Specifications

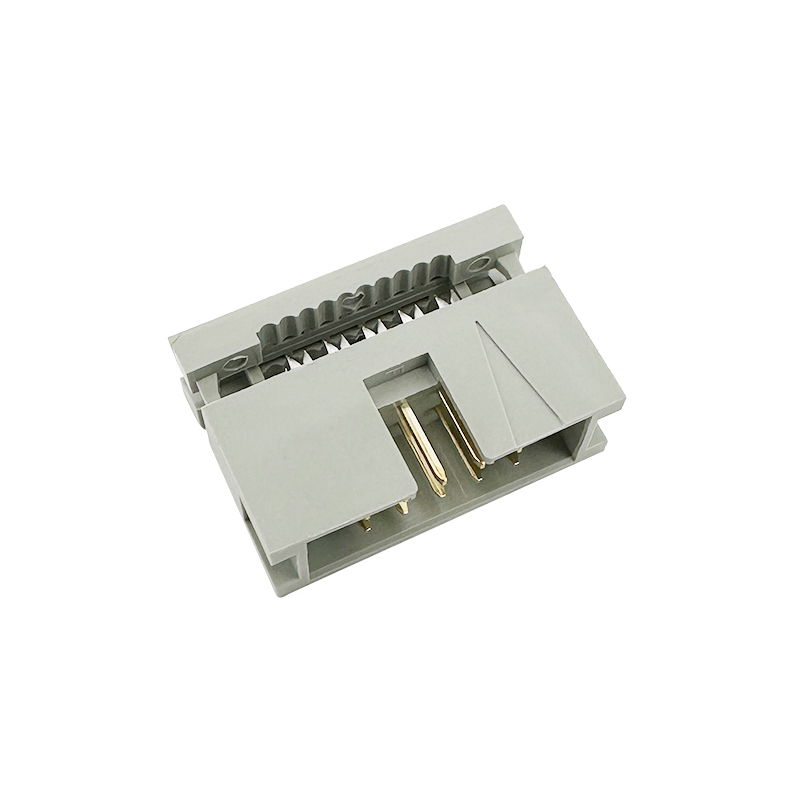

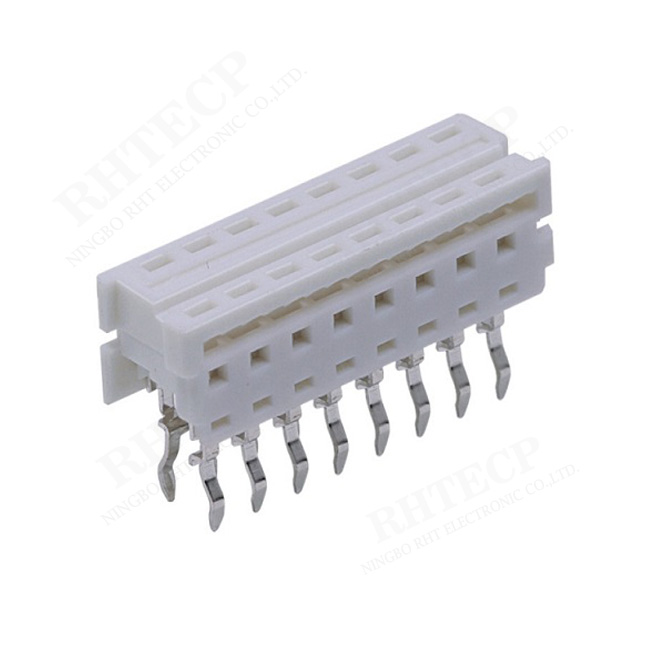

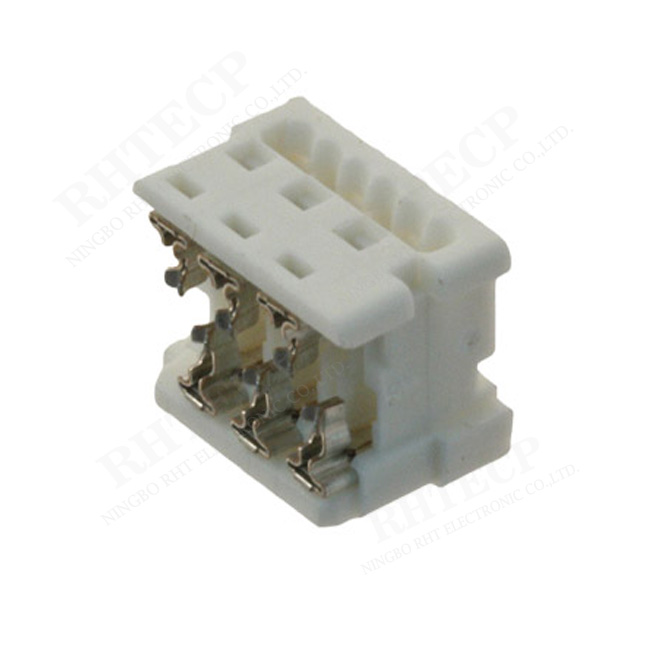

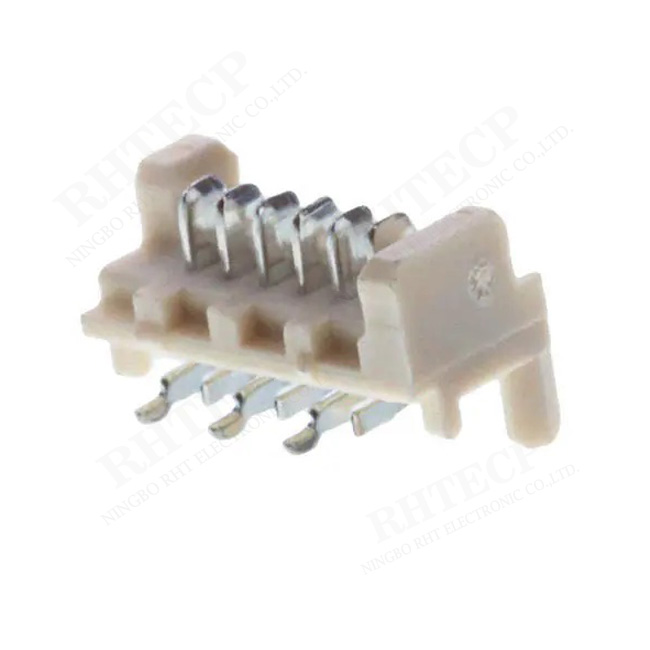

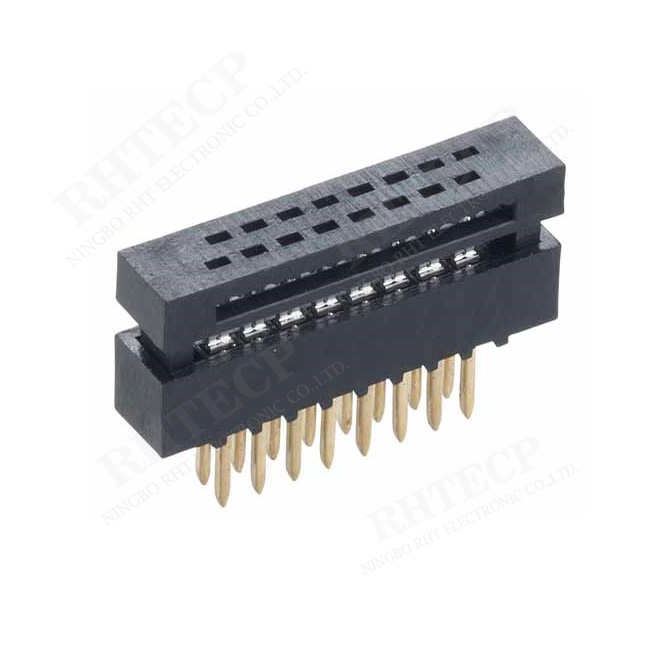

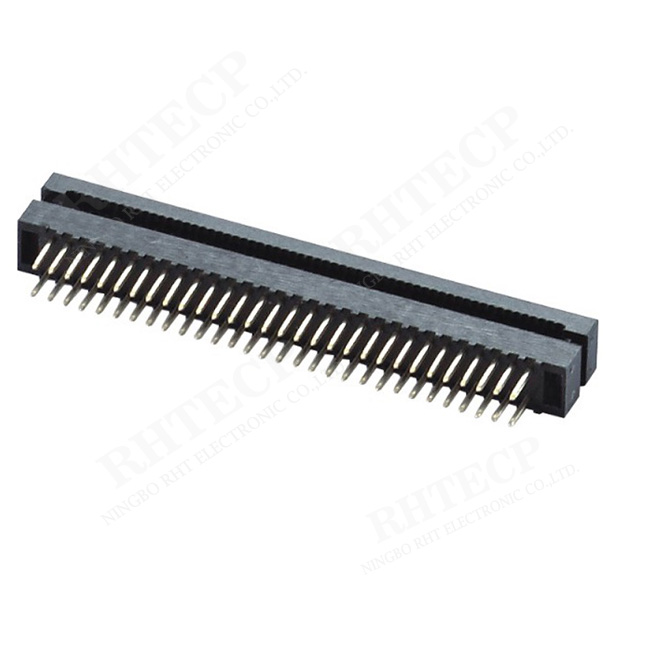

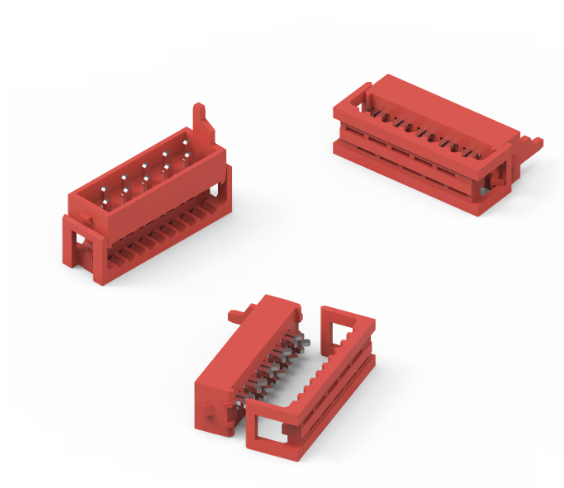

2.54mm Pitch IDC Box Header Connector
Order Information:
RHTAY01Z-XX-G-E
XX-No.of 06~64pin
B-Black G-Gray
E-With ears N-Without ears
Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Au or Sn Over Ni
Cable: 1.27mm (0.050") pitch flat cable
Electrical Characteristics:
Current Rating: 3.0 AMP
Withsstand Voltage:500V AC
Insulator Resistance: 1000M Ohm min
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
