Micro match connectors

Micro Match Connectors are engineered for compact, high-density connections where precise alignment and reliable signal transmission are required. Their design emphasizes fine contact pitch, terminal geometry, mating accuracy, retention force and housing stability. Optimized contact structures support efficient board and cable integration, while robust locking features help maintain consistent performance in control modules, communication equipment and industrial electronic systems.

Enlarge

Quick View

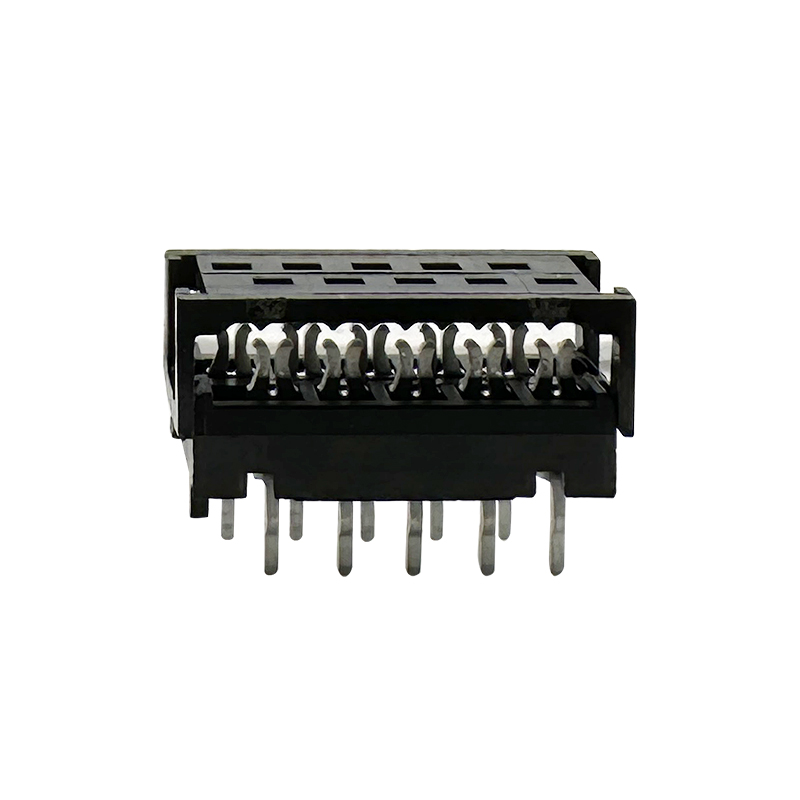

Micro Match Dip Plug IDC Connector:RHTAY04A

Series Part No:RHTAY04A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro-Match DIP Plug IDC Connector.

-Design: Compact and space-saving design, ideal for applications where board space is limited.

-Termination Type: IDC (Insulation Displacement Connector), designed for direct connection to flat ribbon cables with insulation displacement contacts.

-Pin Configuration: Typically available in various pin configurations, such as 10, 14, 16, 20, or 24 pins, arranged in a single row.

Applications

1.Industrial Automation and Control Systems

2.Medical and Laboratory Equipment

3.Automotive Electronics

4.Aerospace and Defense Applications

Specifications

Micro Match Connector IDC Plug IDC Type.

Order Information:

RHTAY04A-XX-R-口

XX-No.of 04~26pin

Color: R=Red B=Black

Material:NONE=PBT E=PA46

Material:

Housing: PBT UL94V-0

Contacts: Phosphor bronze

Plating:Sn over 50u" nickel

Cable: 1.27mm (0.050") pitch flat cable

Electrical Characteristics:

Current Rating: 1.0 AMP

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Withstand voltage:500V AC

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

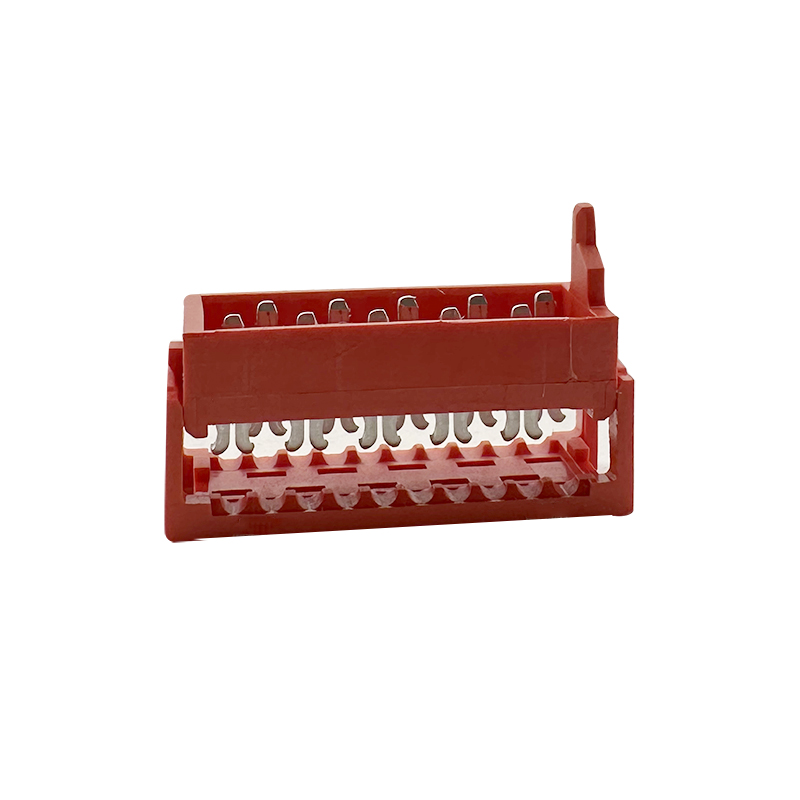

Micro Match Dip Plug IDC Connector : RHTAY04E

Series Part No:RHTAY04E

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro-Match Connector with IDC (Insulation Displacement Contact) Type.

-Design: Compact and space-saving design, suitable for applications where board space is limited.

-Termination Type: IDC (Insulation Displacement Contact), which allows for direct connection to flat ribbon cables without the need for stripping insulation.

-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may also be available, depending on the specific model.

Applications

1.Telecommunication Devices

2.Medical and Laboratory Equipment

3.Automotive Electronics

4.Aviation and Aerospace Applications

Specifications

Micro-Match Connector,Plug,Male,IDC Type.

Order Information:

RHTAY04E-XX-R-口-口

XX-No.of 04~26pin

Color: R=Red B=Black

Material:NONE=PBT E=PA46

Packing: NONE=Tray T=Tube

Material:

Housing: PBT UL94V-0

Contacts: Brass

Plating:Sn over 50u" nickel

Cable: 1.27mm (0.050") pitch flat cable

Electrical Characteristics:

Current Rating: 1.0 AMP

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Withstand voltage:500V AC

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Micro Match Connector IDC Type:RHTAY04EN

Series Part No:RHTAY04EN

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pin Configuration: Usually available in various pin counts, ranging from 4 to 20 pins or more, arranged in a single row.

-Mounting: Designed for through-hole mounting on PCBs, providing a secure and reliable connection.

-Durability: Constructed from durable materials to withstand mechanical stress and ensure long-term reliability in electrical connections.

-Electrical Performance: Provides low contact resistance and reliable signal transmission, suitable for digital and low-frequency analog signals.

Applications

1.Computers and Peripherals

2.Consumer Electronics

3.Industrial Automation and Control Systems

4.Telecommunication Devices

Specifications

Micro-Match Connector IDC Type.

Order Information:

RE-C-204EN-XX-R-口-口

XX-No.of 04~26pin

Color: R=Red B=Black

Material:NONE=PBT E=PA46

Packing: NONE=Tray T=Tube

Material:

Housing: PBT UL94V-0

Contacts: Brass

Plating:Sn over 50u" nickel

Cable: 1.27mm (0.050") pitch flat cable

Electrical Characteristics:

Current Rating: 1.0 AMP

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Withstand voltage:500V AC

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

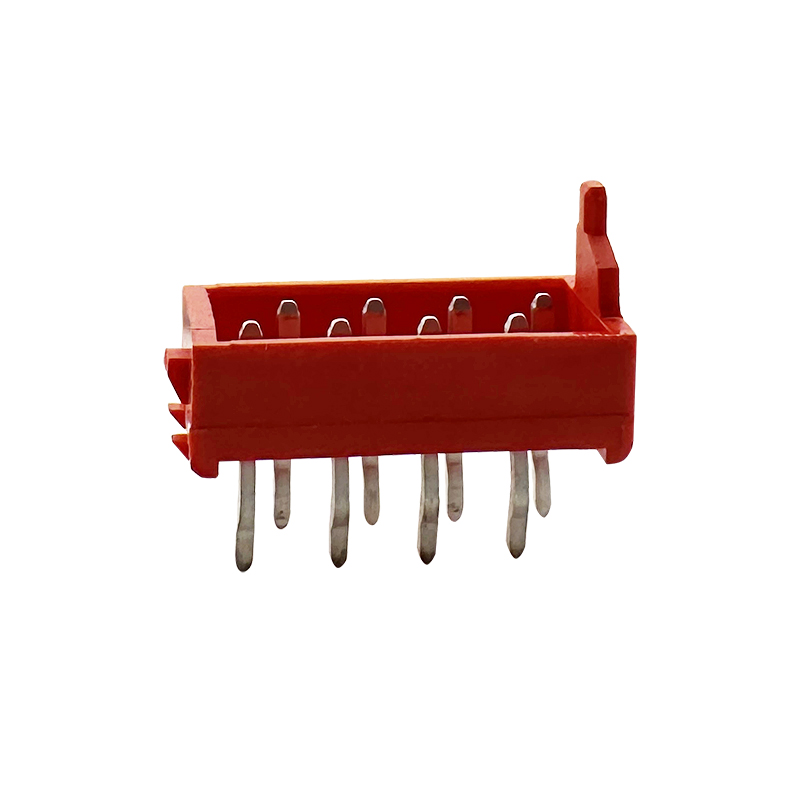

Micro Match Connector Male DIP 180 Type :RHTAY04M

Series Part No:RHTAY04M

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro-Match Connector Male DIP 180 Type.

-Design: Compact and space-saving design, ideal for applications where board space is limited.

-Termination Type: DIP (Dual In-line Package) configuration, designed for through-hole mounting on PCBs.

-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may also be available depending on the specific model.

Applications

1.Telecommunication Devices

2.Medical and Laboratory Equipment

3.Automotive Electronics

4.Aviation and Aerospace Applications

Specifications

1.27mm Micro-Match Connector,Plug,Male,Dip 180.

Order Information:

RHTAY04M-XX-R-口-口

XX-No.of 04~26pin

Color: R=Red B=Black

Material: A=PBT D=PA9T E=PA46

Packing: NONE=Tube R=Reel

Material:

Housing: PBT/PA46/PA9T UL94V-0

Contacts: Brass

Plating:Sn over 50u" nickel

Electrical Characteristics:

Current Rating: 1.0 AMP

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Withstand voltage:500V AC

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Micro Match Connector Male DIP 180 Type :RHTAY04MA

Series Part No:RHTAY04MA

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pin Configuration: Usually available with 10, 14, 16, 20, or 24 pins, arranged in a single row.

-Mounting: Designed for through-hole mounting on PCBs, providing a secure and reliable connection.

-Durability: Constructed from durable materials to withstand mechanical stress and ensure long-term reliability in electrical connections.

-Electrical Performance: Provides low contact resistance and reliable signal transmission, suitable for digital and low-frequency analog signals.

Applications

1.Computers and Peripherals:

2.Consumer Electronics:

3.Industrial Automation and Control Systems:

4.Telecommunication Devices:

Specifications

Order Information:

RHTAY04MA-XX-R-口-口

XX-No.of 04~26pin

Color: R=Red B=Black

Material: A=PBT D=PA9T E=PA46

Packing: NONE=Tube R=Reel

Material:

Housing: PBT/PA46 UL94V-0

Contacts: Brass

Plating:Sn over 50u" nickel

Electrical Characteristics:

Current Rating: 1.0 AMP

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Withstand voltage:500V AC

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Micro Match Dip Plug IDC Connector : RHTAY04MD

Series Part No:RHTAY04MD

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-density design: Supports multiple connections in limited space, perfect for miniaturized devices.
-Reliable contact performance: Offers stable electrical performance with optional gold or tin plating for enhanced durability.
-Polarized housing: Prevents incorrect mating and ensures secure connection every time.
-RoHS compliant: Environmentally friendly and compliant with global hazardous substance regulations.

Applications

1.Consumer Electronics
2.Industrial Automation
3.Telecommunications
4.Medical Devices

Specifications

Micro Match Connector Male SMD Type
Order Information:
RHTAY04MD-XX-R-D-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material:D=PA9T E=PA46
Packing: T=Tube R=Reel
Material:
Housing: PA46/PA9T UL94V-0
Contacts: Brass
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

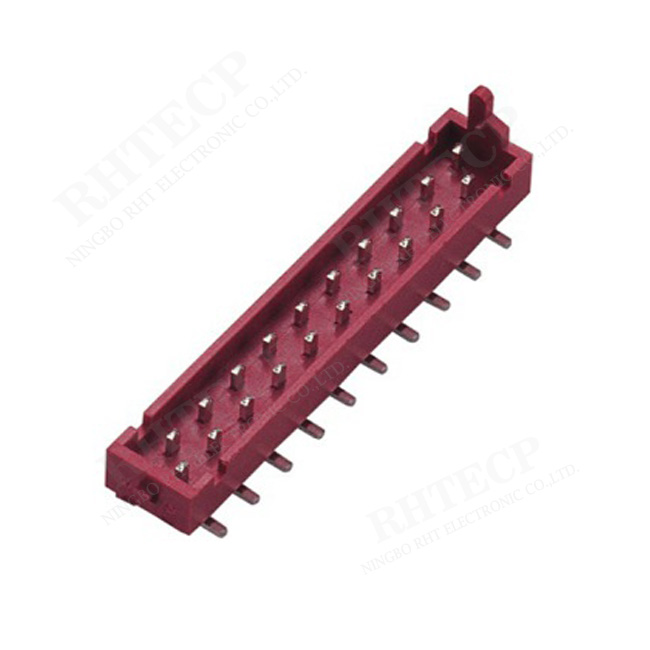

Micro Match Dip Plug IDC Connector :RHTAY04ME

Series Part No:RHTAY04ME

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Reliable contact performance: Features precision-formed contacts with gold or tin plating options to maintain low contact resistance over long lifetimes.
-Polarized housing: Prevents reverse mating and guarantees correct orientation during connector engagement.
-RoHS compliant: Manufactured without restricted substances, meeting global environmental and safety standards.
-Wire-to-board connection: Optimized for signal and low-power applications in consumer, industrial, and automotive electronics.

Applications

1.Medical Devices
2.Instrumentation & Measurement
3.Computing & Data Communication
4.Automotive Electronics

Specifications

Micro Match Connector Male SMD Type
Order Information:
RHTAY04ME-XX-R-D-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material:D=PA9T E=PA46
Packing: T=Tube R=Reel
Material:
Housing: PA46/PA9T UL94V-0
Contacts: Brass
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

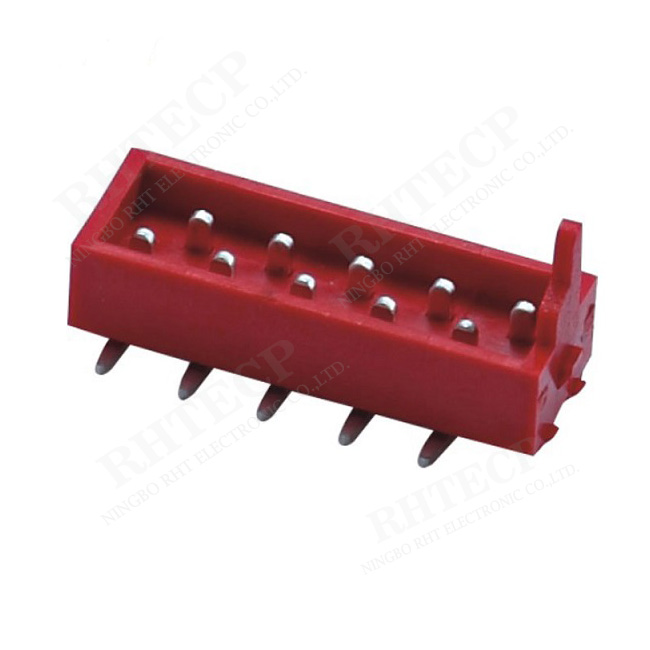

Micro Match Dip Plug IDC Connector : RHTAY04H

Series Part No:RHTAY04H

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pin Configuration: Usually available with various pin counts, typically ranging from 10 to 24 pins, arranged in a single row.

-Mounting: Designed for through-hole mounting on PCBs, providing a secure and reliable connection.

-Durability: Constructed from durable materials to withstand mechanical stress and ensure long-term reliability in electrical connections.

-Electrical Performance: Provides low contact resistance and reliable signal transmission, suitable for digital and low-frequency analog signals.

Applications

1.Industrial Automation and Control Systems

2.Medical and Laboratory Equipment

3.Automotive Electronics

4.Aviation and Aerospace Applications

Specifications

Micro Match Connector Male SMD Type
Order Information:
RHTAY04H-XX-R-口-口
XX-No.of 04~26pin
Color: R=Red B=Black
Material: NONE=PA9T E=PA46
Packing: NONE=Tube R=Reel
Material:
Housing: PA46/PA9T UL94V-0
Contacts: Brass
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

1 2 3 next page
