Features
-Number of Pins: These connectors are available in various configurations with different numbers of pins, ranging from single-row headers with a few pins to dual-row headers with many pins. The number of pins depends on the specific application requirements for signal, power, or data transmission.
-Material and Construction: Male pin header connectors are typically constructed from materials such as brass or phosphor bronze for the pins, and plastic or high-temperature thermoplastics for the housing. This construction provides mechanical strength and durability while ensuring reliable electrical contact.
-Mounting Style: They are designed for through-hole mounting on PCBs, where the pins are soldered into plated through-holes on the PCB for secure attachment and electrical connection.
-Plating Options: Pins may be plated with materials such as gold, tin, or silver to enhance conductivity, prevent oxidation, and improve durability over multiple mating cycles.
Applications
1. Industrial Applications:
2. Automotive Electronics:
3. Medical Devices:
4. Aerospace and Defense:
Specifications

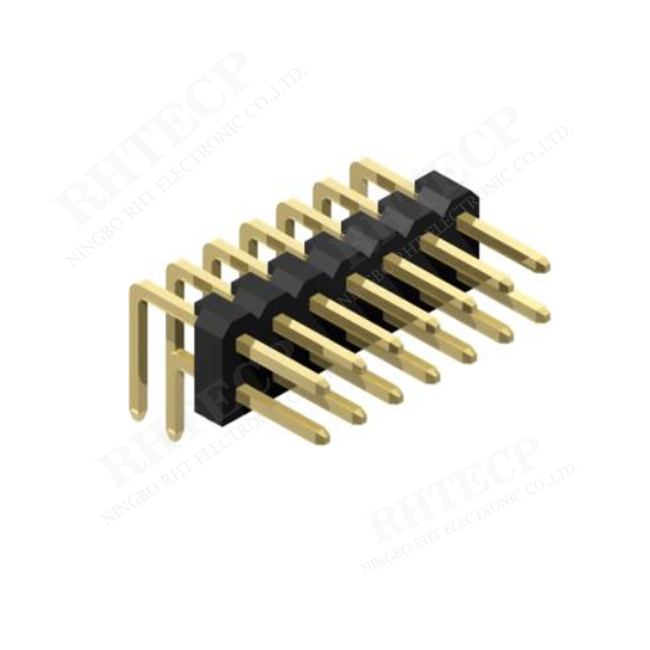

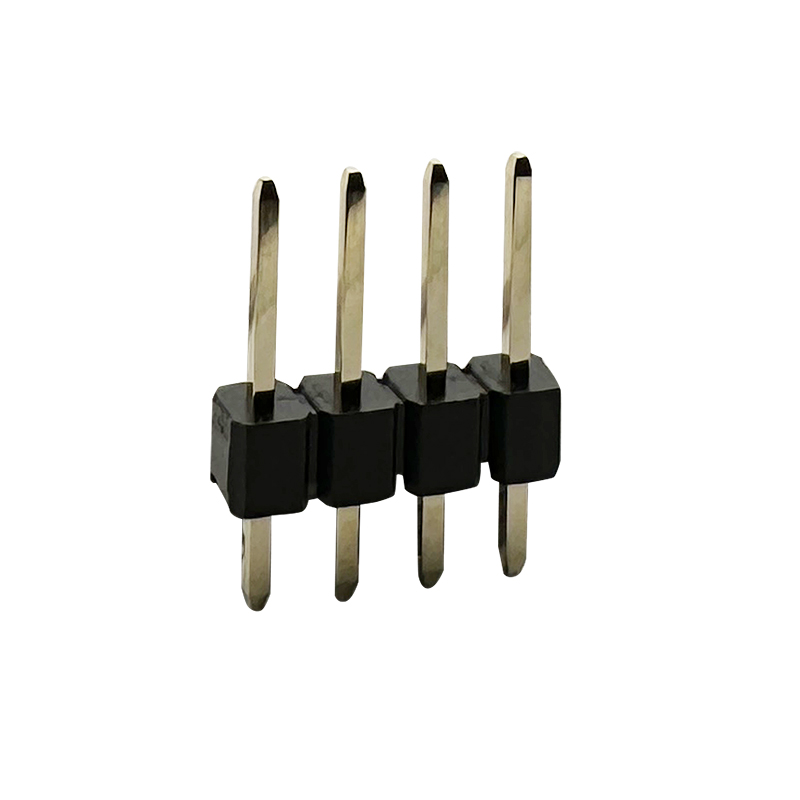

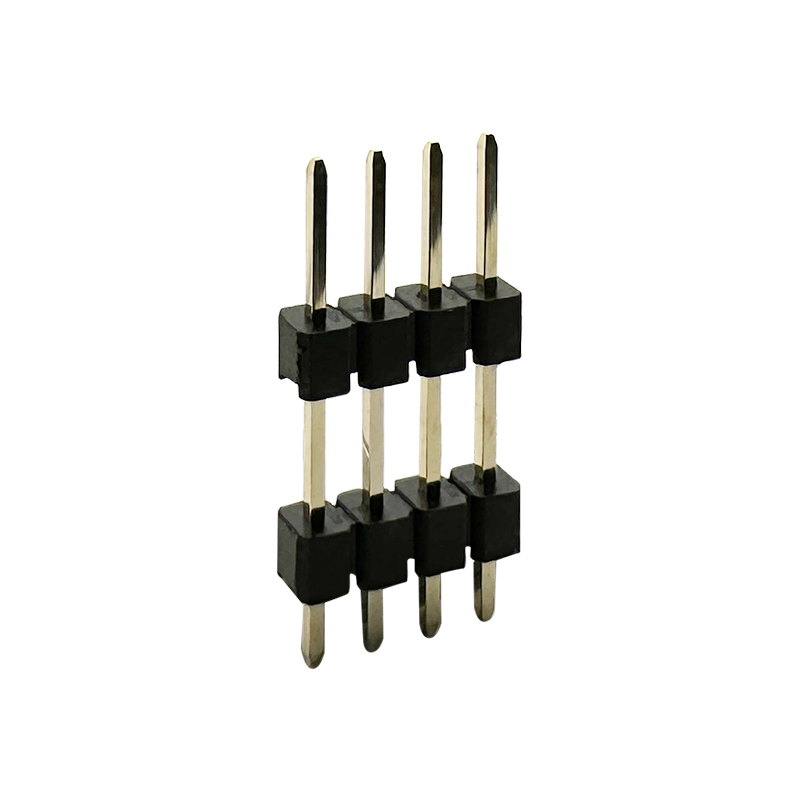

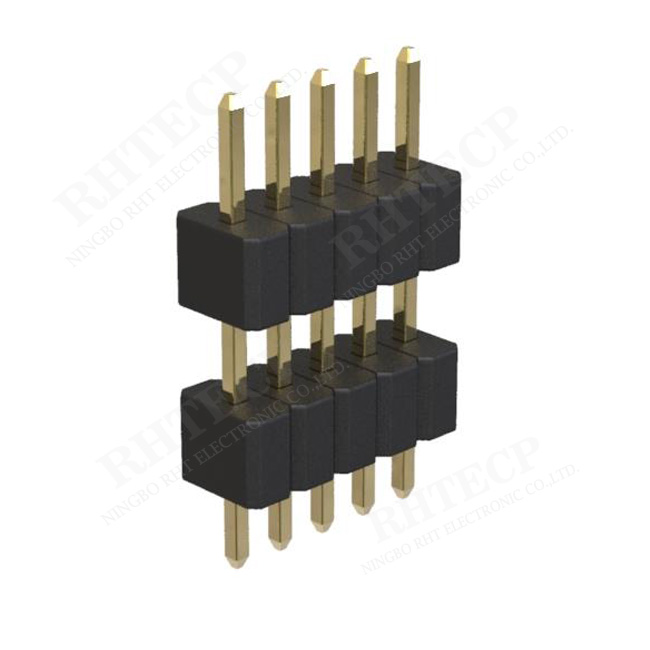

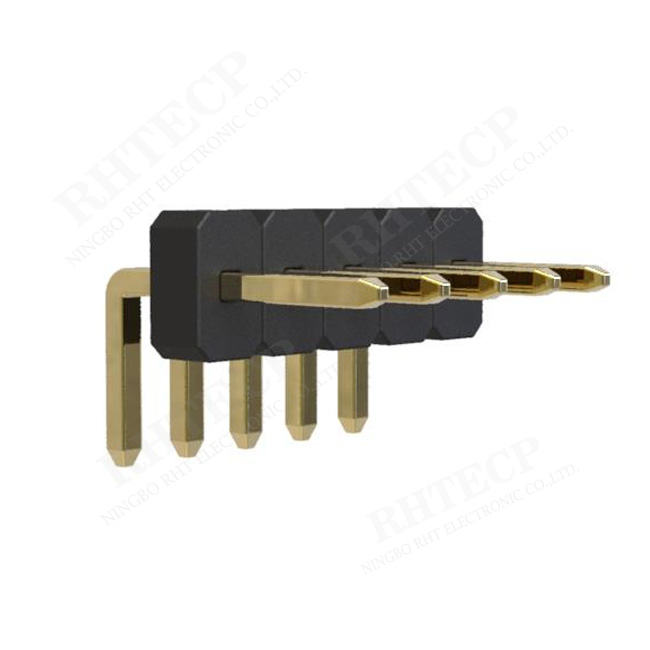

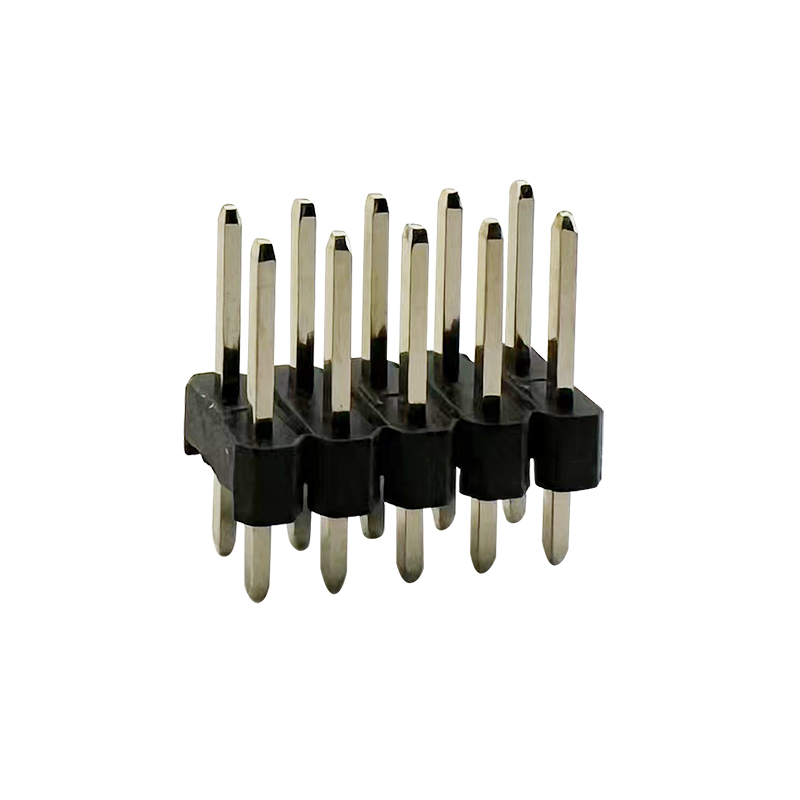

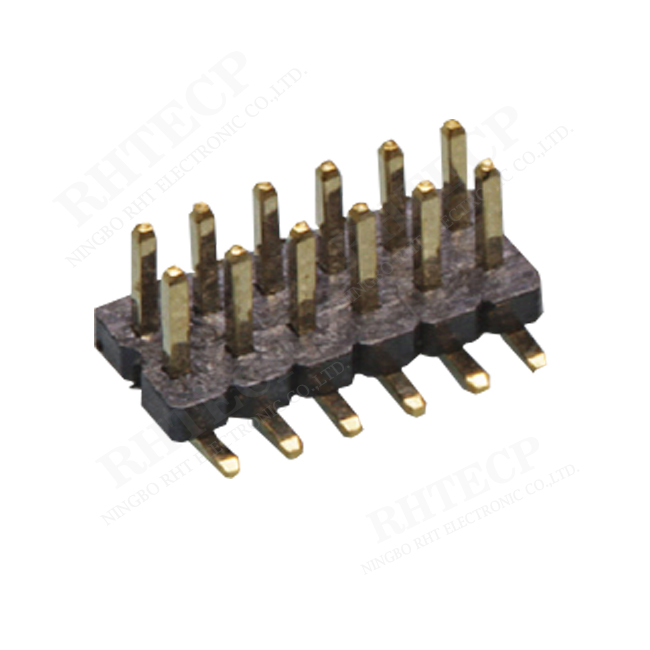

2.0mm Pitch Pin Header Connector
Order Information
RHTAY07B-2.00-1-XX-S-L1*L2*L3-G0
Plastics Height:1.50mm、2.00mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
