JST SHR-V-S-B
Features
-Contacts: Available with multiple contacts per row, depending on the specific connector configuration, providing flexibility in design and connection requirements.
-Mounting Style: Typically available in through-hole mount (THT) or surface mount (SMT) configurations, suitable for PCB mounting depending on the specific model.
-Features: May include polarization features to prevent incorrect insertion, locking mechanisms for secure mating, and durable materials suitable for various environmental conditions.
-Reliability: Offers reliable electrical performance, suitable for applications requiring stable connections over extended periods
Applications
1.Consumer Electronics
2.Computing Devices
3.Automotive Electronics
4.Industrial Equipment
Specifications

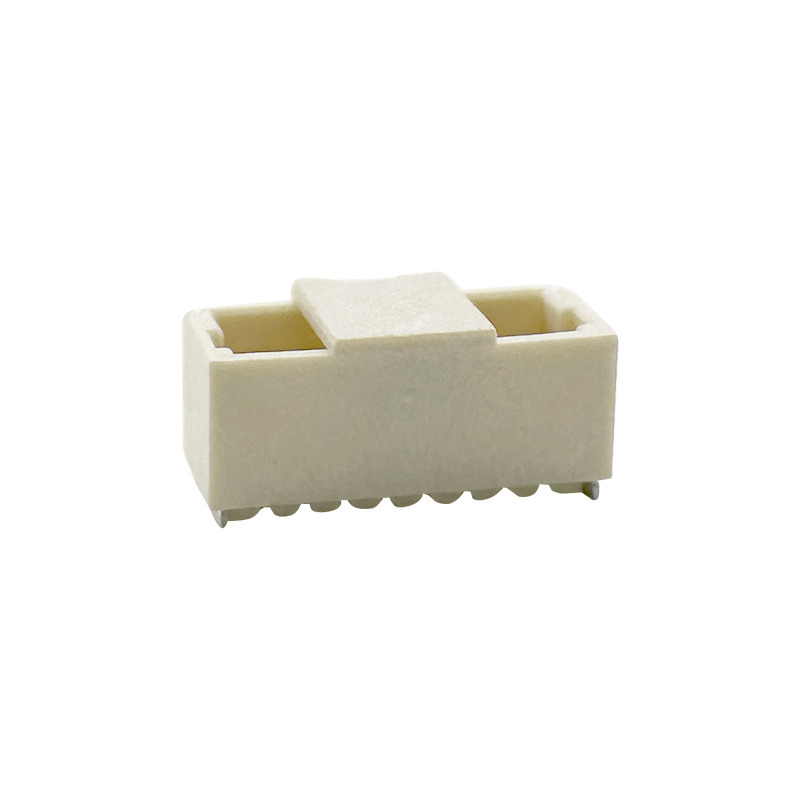

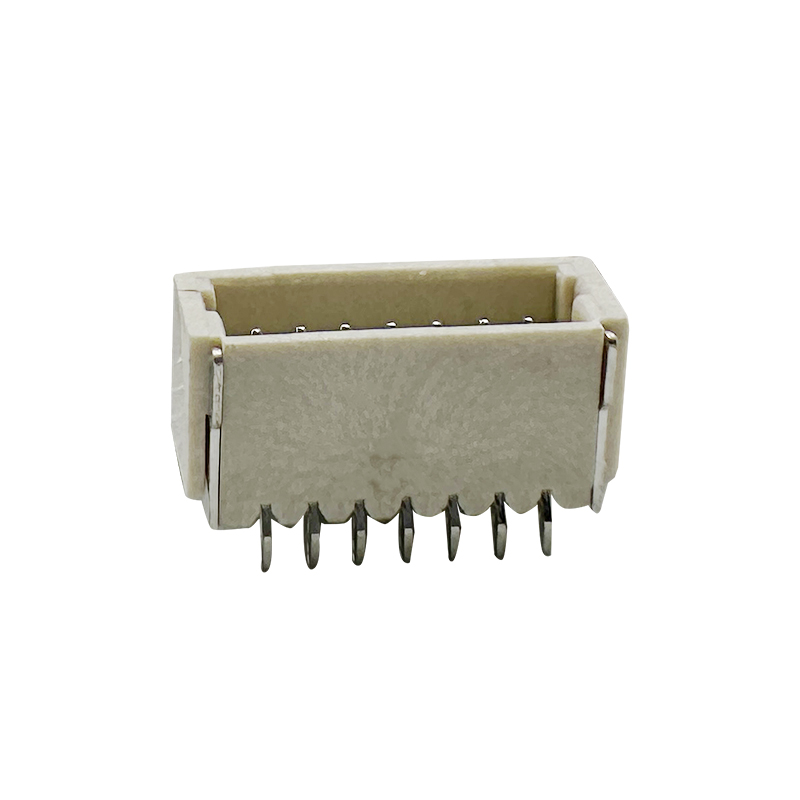

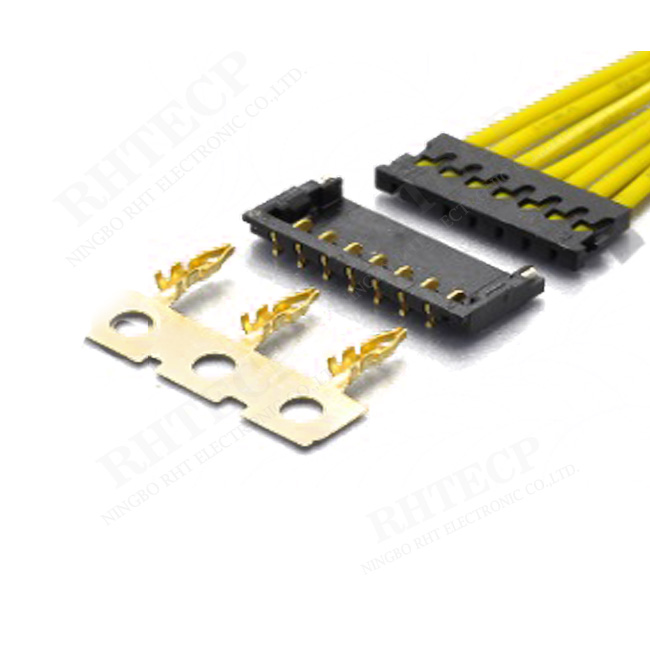

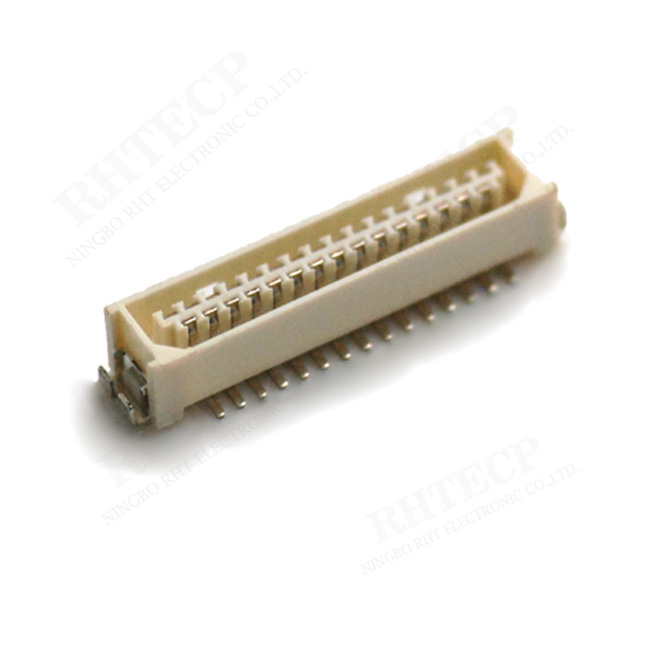

1.00mm JST SH SHR Type wire to board connector
Order information:
RHTAYF1-1.00-1-02-H
Pitch:1.00mm
Pins:1=Single layer 2=Double layer
Pin numbur:2~40 pins
H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin
RM=SMT Right Angle Male pin / VM=SMT Straight Male pin
Electrical Specification:
Voltage rating:50V AC, DC
Current rated:1.0A, AC, DC
Contact resistance:20m Max
Insulation resistance:100m min
Withstanding voltage:500V AC/minute
Applicable wire:AWG #32 to #28
Temperature range:-25 ~+85 degrees C
Material:
Pin:Brass Tin
Soldering lug:Brass Tin
Housing:LCP (UL94V-0), Natural
Technical Documents
Please contact us for more information.
