Features
-Ultra-Low Profile (H1.4mm): With a slim 1.4mm profile, this connector is ideal for space-constrained designs, ensuring seamless integration into compact electronics.
-6-Pin Layout: Supports essential SIM card connectivity functions, compatible with a wide range of SIM card applications, and provides stable signal transmission.
-High Durability:Constructed to withstand numerous insertion and removal cycles, ensuring long-term reliability and performance.
-Secure Connection:The hinged mechanism ensures that the SIM card is securely held in place, minimizing the risk of disconnection due to vibrations or impacts.
-Material Quality:Made from high-quality materials, often with gold-plated contacts to ensure excellent conductivity and resistance to corrosion.
-Ease of Integration:Designed for easy integration into PCB layouts, often using surface-mount technology (SMT) for straightforward assembly in manufacturing processes.
Applications
1.Laptops and Notebooks
2.GPS and Navigation Devices
3.Automotive
4.Medical Devices
Specifications

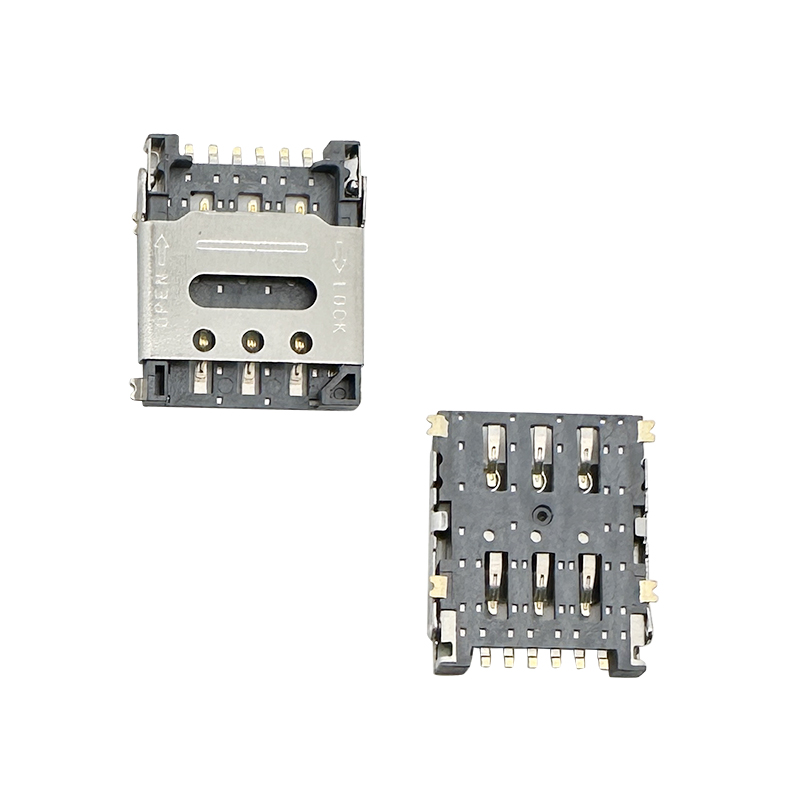

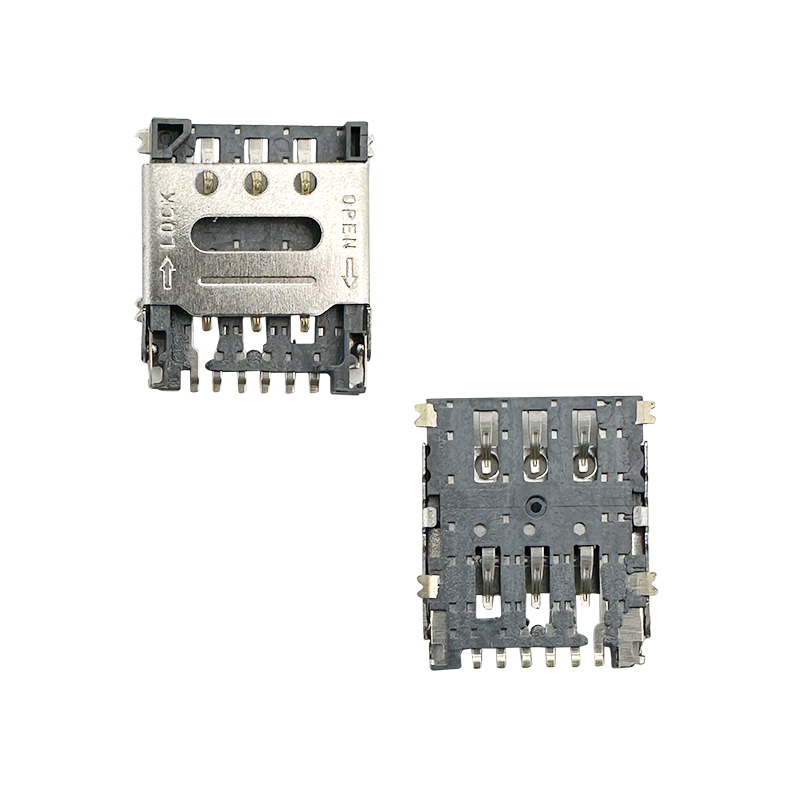

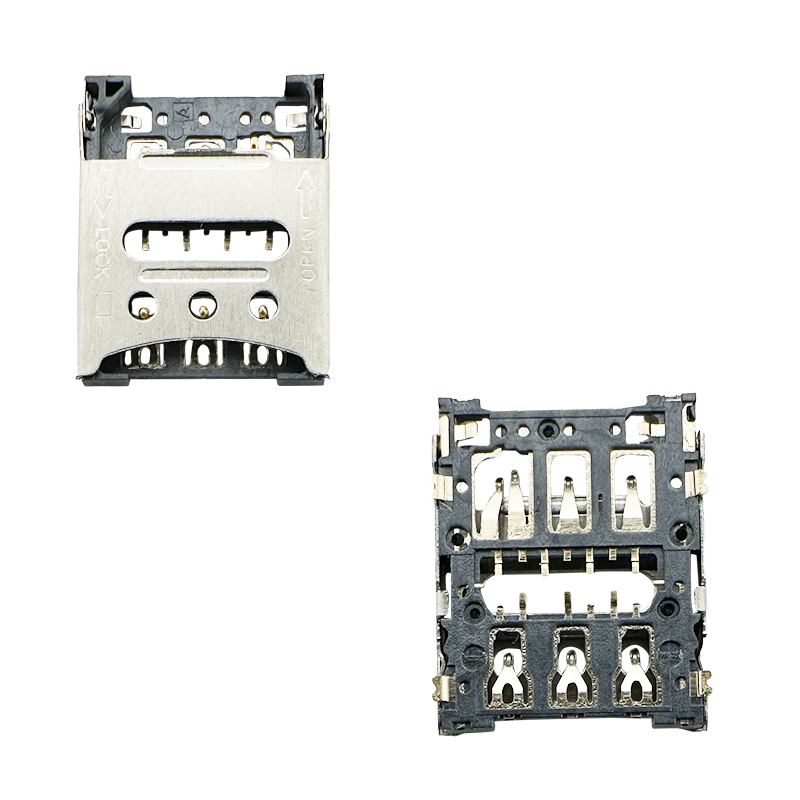

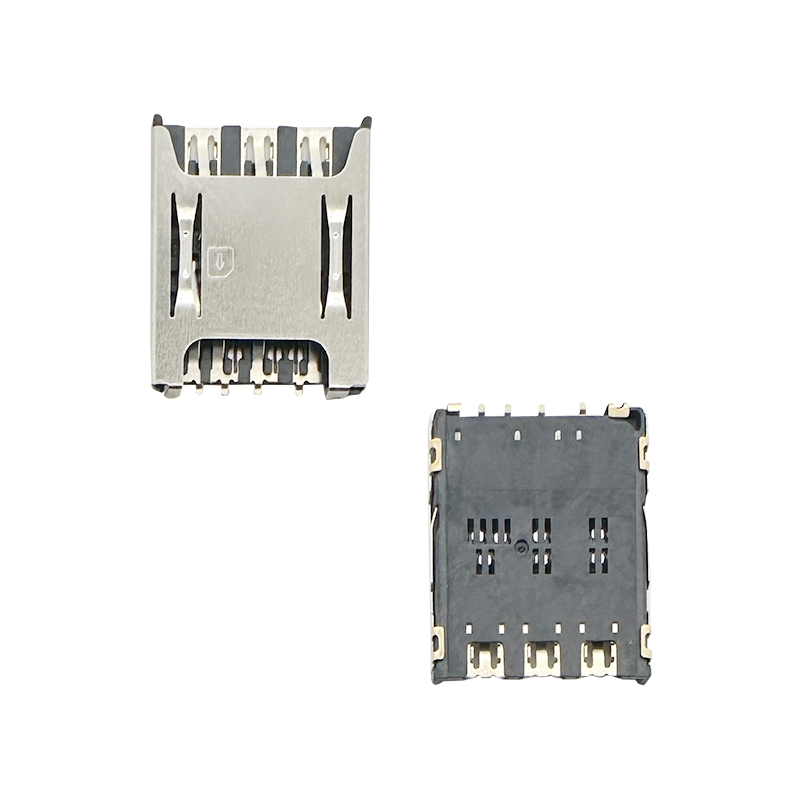

Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin
Material:
Housing:High Temperature Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy,Plated Gold on the contact area and solder tails,Underplated Nickel over all.
Shell:Stainless Steel,Plated gold on the solder tails,Underplated Nickel over all.
Electrical:
Rated current:0.5A Max
Rated Voltage:30V AC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC/minute.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
